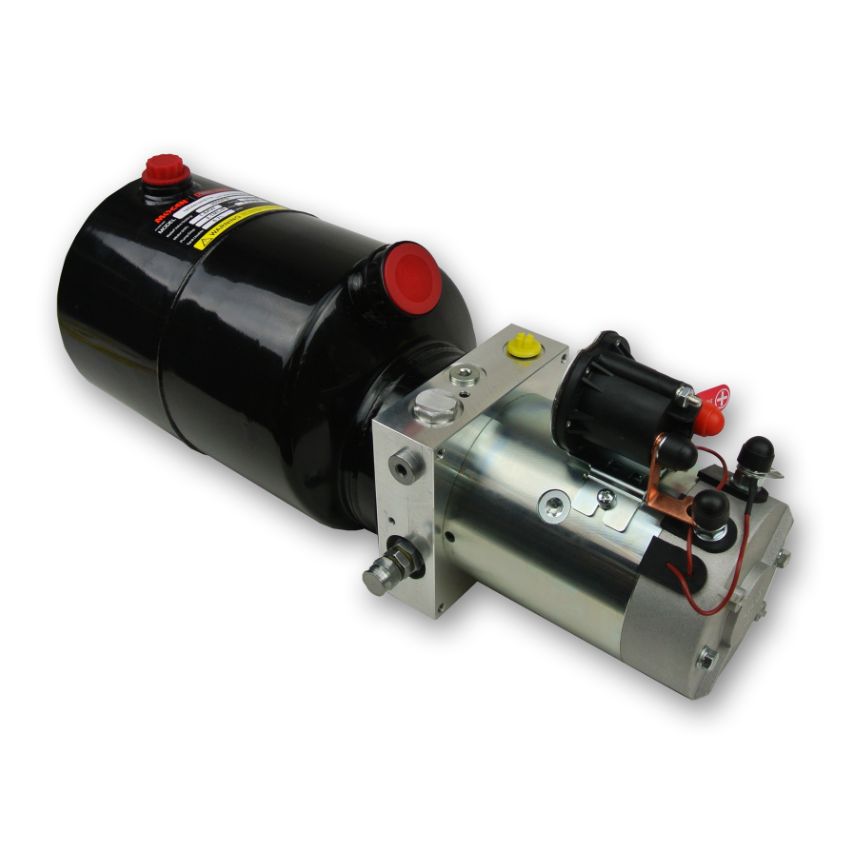

Mocen 12 Volt DC Hydraulic Power Pack – 1.6 kW, 5 LPM, up to 3,000 PSI (16DA Series)

The proven workhorse 12V DC hydraulic power pack fitted to tippers, tail lifts, hoists, crane trucks and trailers all over Australia. 1.6 kW motor, 2.1 cc pressure-balanced pump, oil delivery 5 litres a minute at 110 bar (1,600 psi) and up to 200 bar (3,000 psi) at reduced flow. Pick your function and tank size below – every combination is a real part number in stock, and this range carries our sharpest power pack pricing on the site.

Ways to buy this power pack:

• P and T (Pressure and Tank ports) – you run your own control valve. The pack supplies oil to the P port and takes the return on T. Pairs perfectly with our 1 spool micro-switch valve.
• Single Acting – for tipper hoists and trailers: pump drives the load up, the solenoid lowering valve brings it down under gravity.
• Double Acting – a Cetop 3 solenoid valve drives the cylinder both ways: ramps, tailgates, stabiliser legs.
• 2 x Double Acting – two independent double acting circuits from one pack: mini cranes, tow trucks, stabiliser plus tilt.
• Need 24 volt? See the 24 volt volt version of this power pack.
• 3 x double acting, sandwich-valve and high-power builds – see our crane truck power packs or call us, we build to order.

Pick your function and tank

What is in the box

• One assembled power unit: 1.6 kW 12V DC motor with start solenoid, 2.1 cc pump, steel tank as selected, and the solenoid valve(s) for the function chosen. Pendant controllers are optional – add one below.

Specifications

How fast will it drive my cylinder?

Based on 5 L/min supply and a 24" (61 cm) stroke:

How to choose

• Tipping trailer or hoist that gravity can lower: Single Acting.
• Load needs powering BOTH ways (ramps, legs, tailgates): Double Acting.
• Two separate circuits: 2 x Double Acting. Running your own valve bank: P and T.
• Tank size: add up your cylinder volume and leave 20-30% air space – a twin-ram tipper wants 7.5-10 L, a single ram 3.8-5.7 L.
• Every row’s datasheet link carries the full dimensions drawing.

Technicians Advice

These are S3 intermittent duty packs: work them a minute at a time and they last a decade; dead-head them continuously and the motor cooks in a season. Wire them with proper cable – on 12V the pack pulls serious current under load, so size the battery cable to the run and torque the lugs; half the “weak pack” complaints we get are voltage drop, not hydraulics.

Fill the tank with the rams RETRACTED, run the function twice, top up. The relief valve comes factory pre-set – leave it alone unless you have a gauge on the P port, and never wind it up to “fix” a slow lift: slow is a flow or voltage problem, not a pressure one. And put a magnetic drain plug in the tank on day one – there is no return filter on these.

Official Datasheets

📄 P and T Model Spec (PDF)📄 Single Acting Spec (PDF)📄 Double Acting Spec (PDF)

Every size variant has its own drawing – use the Spec links in the table above.

Watch: Everything about 12 and 24 Volt DC Hydraulic Power Units

Watch: How to Wire Up a 12 or 24 Volt DC Hydraulic Power Pack

Complete your setup

KCB Pendant ControllersPendant HolsterMotor Dust CoverOil Tanks 1-400 LMagnetic Drain PlugsSpare DC MotorsStart Solenoids

Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
