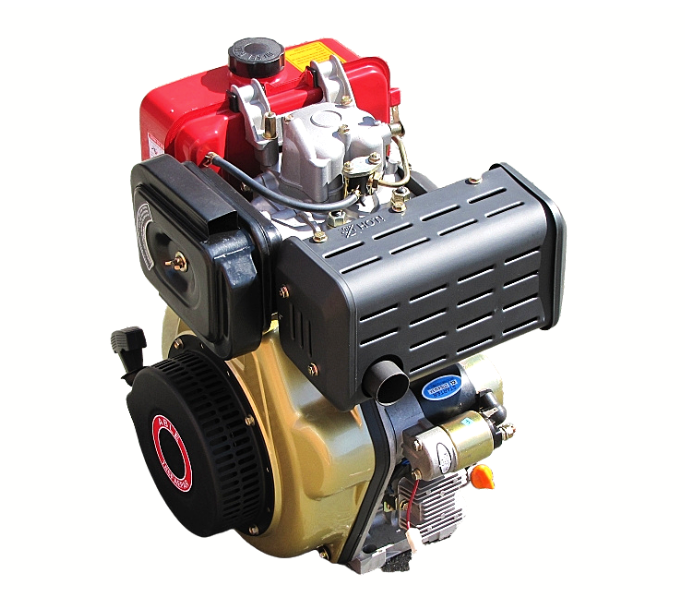

Powerhouse Air Cooled Single and Twin Cylinder Horizontal Shaft Diesel Engines in 4, 7, 11, 13, or 19 Horse Power at 3,000 RPM.

This is a high-quality Diesel engine made in Canada.
These engines are backed by a 1 year or 500 hour manufacturer's warranty.

These 5 different HP models all come with electric Start with a backup pull start (19 HP electric Only) .
See the drop-down box next to the price for options.
We offer these in 4 HP, 7 HP, 11 HP, 13 HP, and 19 HP Air Cooled Diesel.

These engines all have spare parts readily available in Australia.
4 hp Engine has a 3/4" Straight keyed shaft
the 7, 11, 13, and 19 hp engines all have a 1" Straight keyed shaft.

These motors all feature Japanese bearings as well as cast iron cylinders.
These motors share the same bolt spacing, pattern & spigot
dimensions as Honda and Yanmar Engines.

Engine Specifications
Engine Type : Four Stroke Air Cooled Diesel,

4, 7, 11, and 13 HP Single Cylinder Four Stroke,
19 HP, Twin Cylinder Four Stroke,

Max : Rated RPM = 3000

Engine Capacity in cc:

4 hp = 211 cc,
7 hp = 296 cc,
11 hp = 418 cc
13 hp = 499 cc
19 hp = 997 cc

Starter Type:
Electric and Pull Start: 4, 7, 11, and 13 HP engines
Electric only: 19 HP engine.

Air Filter Type: Paper and Washable Foam

Oil Filter: The 4 , 7, 11 ,and 13 hp engines have their own unique reusable oil filter.

The 19 hp engines use spin on Oil and Fuel filter canisters.

4 hp = 2.5 Lt,
7 hp = 3.5 Lt,
11 hp = 4.5 LT
13 hp = 5.5 Lt
19 hp = Tank Not Included

Parallel Shaft Size:

4 hp = 3/4" (19mm)
7, 11,13 and 19 hp = 1"inch (25.4mm) with Keyway

Weight:

4 hp = 32kg,
7 hp = 47kg,
11 hp = 55kg
13 hp = 47kg
19 hp = 78kg

We also have another listing for 7hp, 15hp & 24 hp Petrol motors.

7, 15, or 24 horsepower petrol Engines

These Diesel engines all feature Japanese bearings as well as cast iron cylinders.
They share the same bolt spacing & spigot dimensions as Honda and Yanmar Engines (Except the 19 HP diesel engine please see attached drawings) making it easy to fit bell Housings and to connect and drive either Accessories such as

• Pressure washer pumps
• Hydraulic pumps power of
• log splitters and
• metal forges and
• benders ect . .

Please check our other listings to see compatible bell housings & log splitter items etc.

Bell Housings for Honda Yanmar Petrol and Diesel engines.

Technician's Advice — from our workshop floor:
These Air cooled Diesel engines are workhorses for various applications in manufacturing, pressure washing and agricultural applications. For the longest service life, before first start, always fill the engine crank case with the correct quantity and grade of clean engine oil to suit your operating environment.

To ensure best motor life, run the new engine at moderate speed and load for 10 to 15 minutes before full operating speed and load.
This allows the internal engine components to seat properly and ensures all bearing and ring surfaces are well seated and lubricated before full load is applied.

Warranty

All ENGMATTEC engines supplied by hydraulic.online carry a 12-month or 500 hours warranty against manufacturing defects.

Warranty applies under normal operating conditions with appropriate fuel, Oil and air filtration and good installation practices.

If a product or part is faulty, we require it to be sent back to us including a copy of the Tax Invoice.

Once the item or part is tested and is faulty, it will be repaired or replaced under warranty.

The purchaser is responsible for all postage costs of returning any faulty item back to us and is also responsible for the postage costs incurred when we send the replacement part back to the purchaser.

Shipping & Freight

We ship hydraulic components across Australia from warehouses in Queensland, Victoria, South Australia, and Western Australia. Because we sell solid steel components — cylinders, pumps, motors, fittings, and hose assemblies — freight costs reflect real weight and real distance. We do not hide freight costs in inflated product prices. What you see is what you pay.

Hydraulic components and engines are manufactured from steel and aluminum. A single cylinder engine weigh 32–55 kg depending on the product. Freight costs vary by product weight, dimensions, and your delivery location. We have negotiated the best available carrier rates for our volume and absorb a portion of freight cost on every order.

Delivery Timeframes

Standard parcels: 2–7 business days
Heavy freight: 3–8 business days
Large/pallet freight: 3–10 business days
Orders placed before 12 Midday AEST ship same business day (where stock is available)

Out of Stock Policy

It is our intention to maintain active stock on every listed item at all times. On rare occasions, due to high demand or supply constraints, a size may be temporarily unavailable. If this occurs, you will be notified immediately and offered the choice of a full refund or a short wait for incoming stock — typically 3 to 14 days.

Why Buy From Us

20+ years of hydraulics expertise — we know what we are selling
Australian owned and operated — Gold Coast, QLD
ABN: 92 969 264 674 — registered Australian business
Secure checkout — Visa, Mastercard, PayPal, Zip Pay, Direct Deposit
Tax invoices supplied with every purchase
Messages answered within normal business hours — 8:00am to 5:00pm Monday to Friday
Phone: 07 5563 1982 or 1300 1 HOSES
Email: sales@mhfgc.com.au

Improper Selection, Installation, Implementation, And / Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
