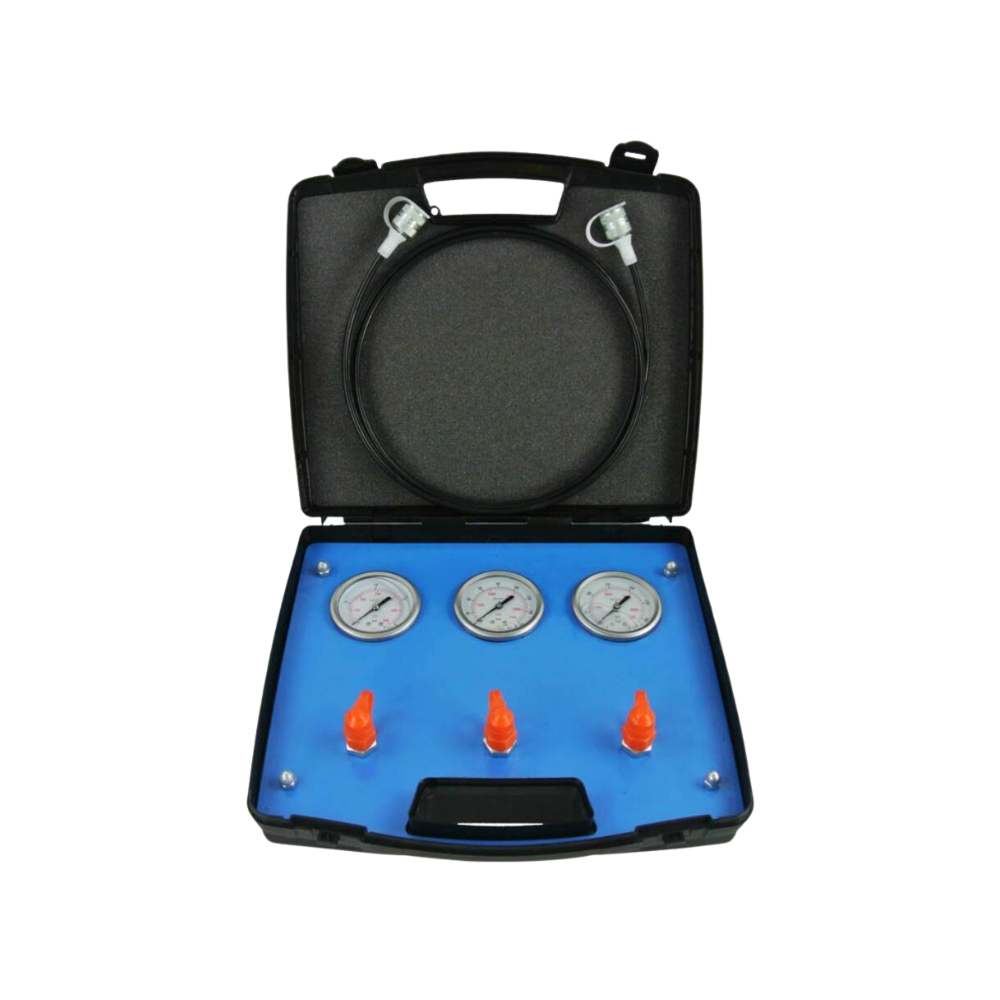

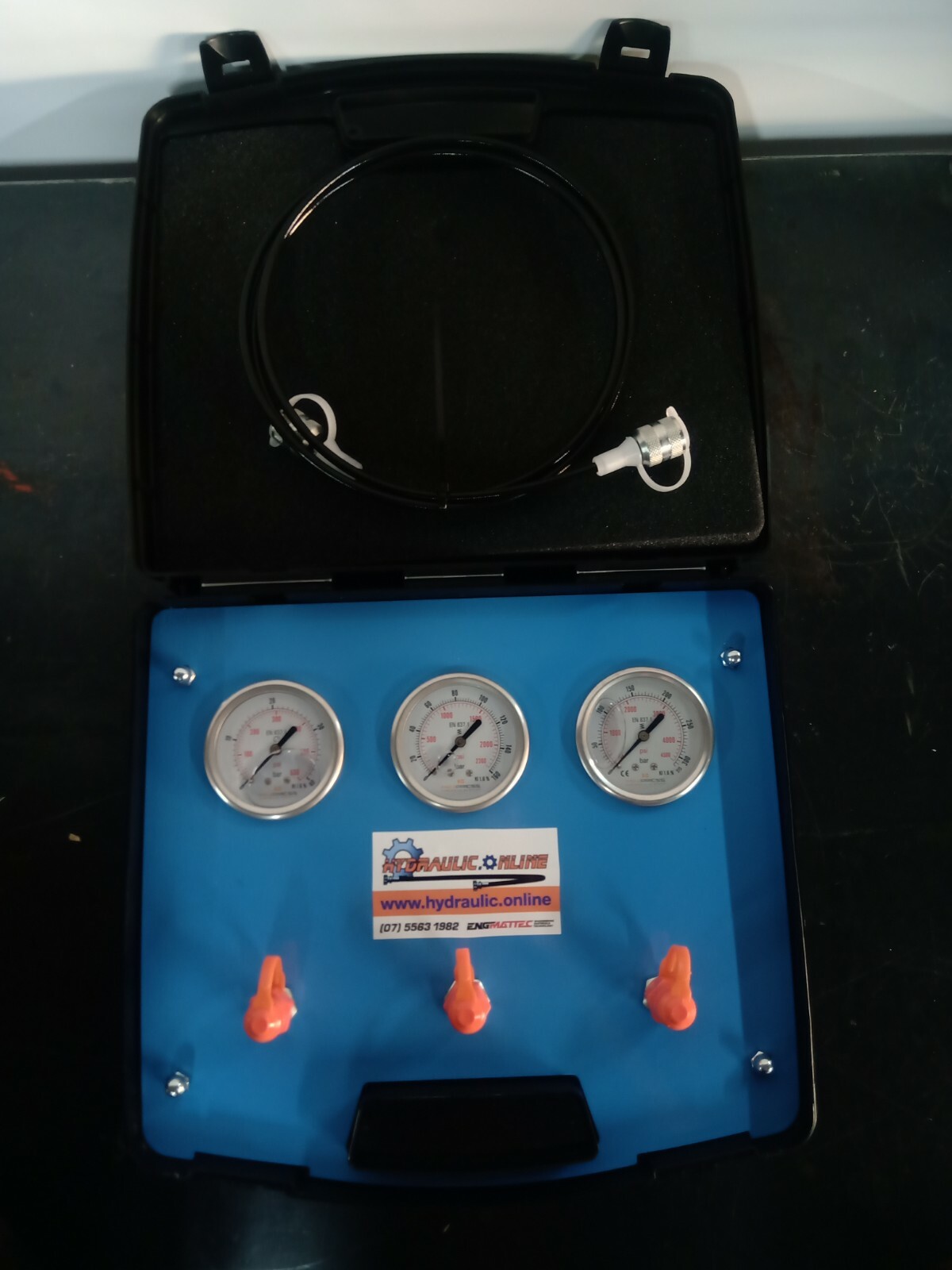

SKON Analogue Three gauge Pressure Gauge Test Kit with 2 m long test hose

PSI, BAR, Readings. Three gauges

Gauge 1 = 0 - 600 psi (0-40 bar), Gauge 2 = 0 - 2,300 psi (0-160 bar), Gauge 3 = 0 - 4,500 Psi (0-330 bar)

The dual scale on the gauge faces measures in psi and bar

Choice of three gauges to ensure you always have the best resolution for a more accurate reading to suit your needs.

An essential tool for all heavy equipment owners and mechanics.
Simply choose desired gauge scale, attach the supplied test hose to the gauge port,
& use the included test 20 fitting on the other end.

The 'test 20' hose end, is compatible with a lot of test ports on machinery.
(not for Caterpillar equipment contact us for Cat Test port adaptors) or click the link below,

Cat Test Port Adaptor

Alternatively, we are able to add adapters, see options.

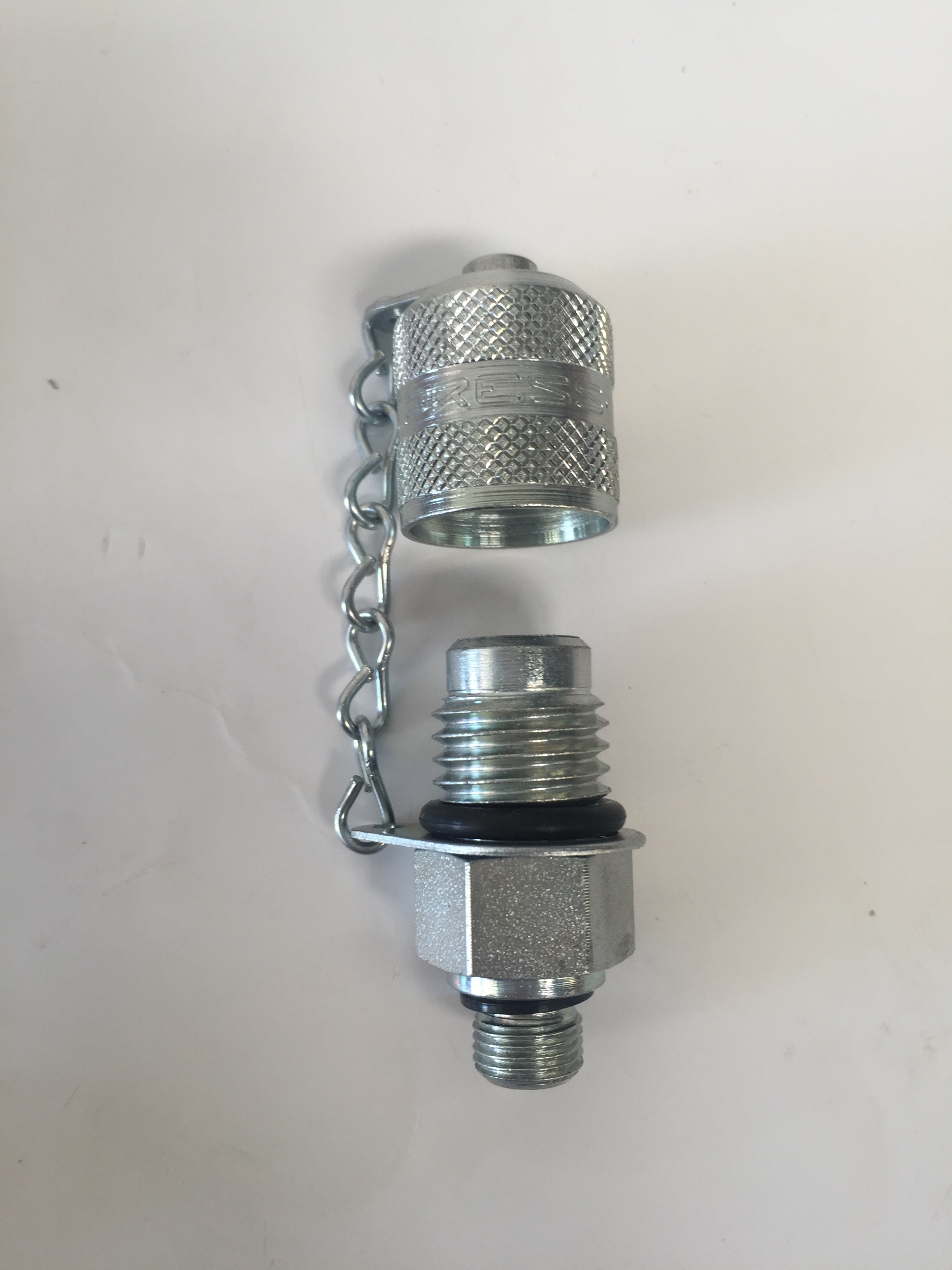

The photo below is an example of a test 20 male x 1/4" BSP male, see options

# Please note; we are unable to change out gauge sizes in these boxes

This gauge set fulfills the safety requirements of German Standards EN 837-1/S2.

Kit includes:
Dual scales on Gauge faces

0-40 bar / 0-600 psi gauge

0-160 bar / 0-2,300 psi gauge

0-330 bar / 0-4,500 psi gauge

# Please note; we are unable to change out gauge sizes in these boxes

WARNING – IMPROPER USE OR IMPROPER SELECTION OF
HYDRAULIC PRODUCTS/EQUIPMENT OR SYSTEMS CAN CAUSE PERSONAL INJURY, DEATH AND
PROPERTY DAMAGE
