Digital Hydraulic Pressure Test Kit 0-700BAR/10,000PSI with Adapters

Store/Gauges Flow & Pressure Test Kits/Digital Pressure Gauges

Product Details

Weight: 2.00 kg

This Taiwanese made 0 - 700 BAR (1/4" BSP Stem) gauge comes with a certificate of calibration and accuracy.

Supplied with German made STAUFF "test 20" 630 bar test hose and test fittings.

One adapter will allow a straight connection to a test port, whilst using the other supplied adapters will allow the use of the 2 meter test hose.

Multiple options available to order including "CAT" test couplings.

If your machine does not have test ports, or has unusual ones, we supply two adapters, 1/4"& 1/8" BSPP adapters.

To use these, simply 'plumb' in a Tee fitting somewhere in the line you are testing.

This combination allows instant accurate pressure reading simply by attaching to standard test ports found on most hydraulic machinery, tractors etc. It is an essential tool for any heavy equipment owner or mechanic.

Will fit easily to standard 'test' ports on hydraulic valves, pumps or can be used anywhere in the hydraulic system to give you a clear diagnosis of actual pressures and or potential problem areas.

This hydraulic pressure test kit is ideally suited for measuring all non flammable and non corrosive liquids or gasses. Oil, Water and Non flammable Gasses.

These gauges fulfill the safety requirements of German Standards EN 837-1/S2.

The back lit LCD (Liquid Crystal Display) indicates pressures in PSI, BAR, KG/Cm2 and, mPa.

It has a range of readouts (photos) & comes with instructions.

** 0 - 100bar & 0 - 400 bar digital gauges are also available at no extra cost.

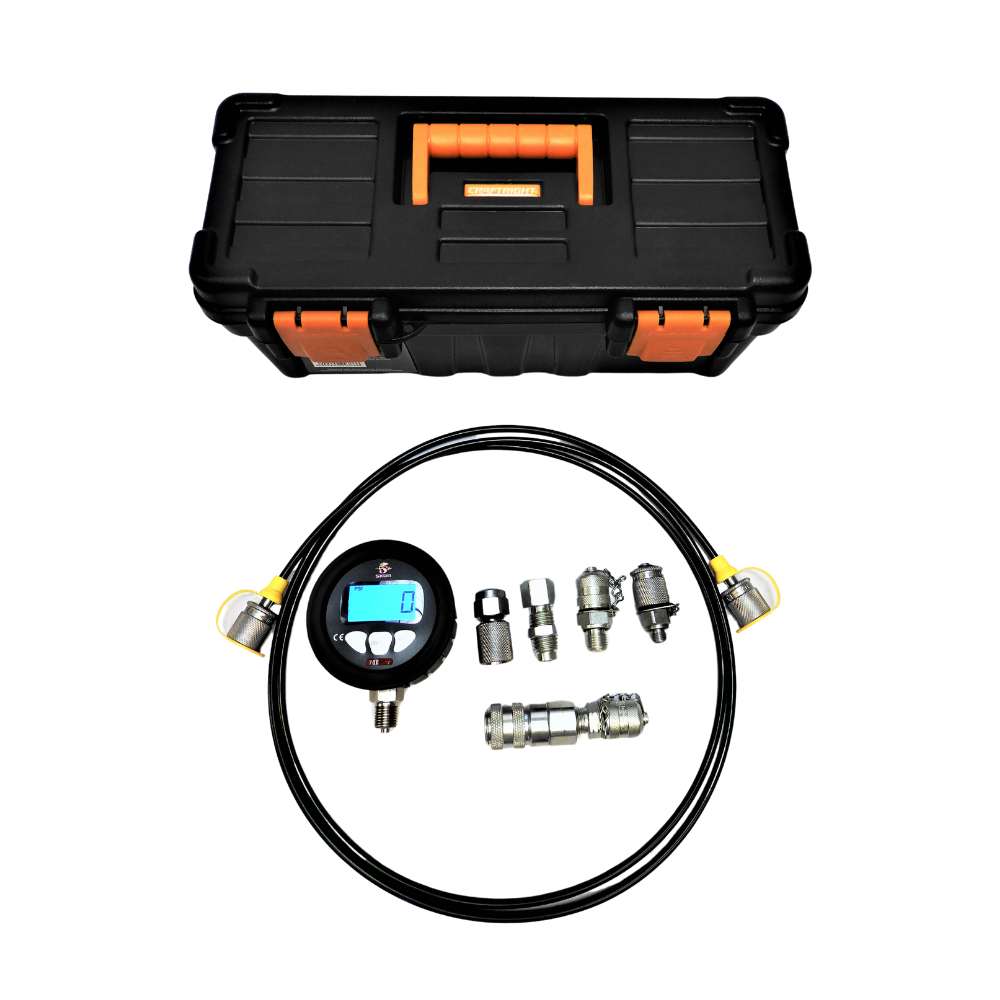

Included in the kit:

1 Heavy Duty Plastic Case.

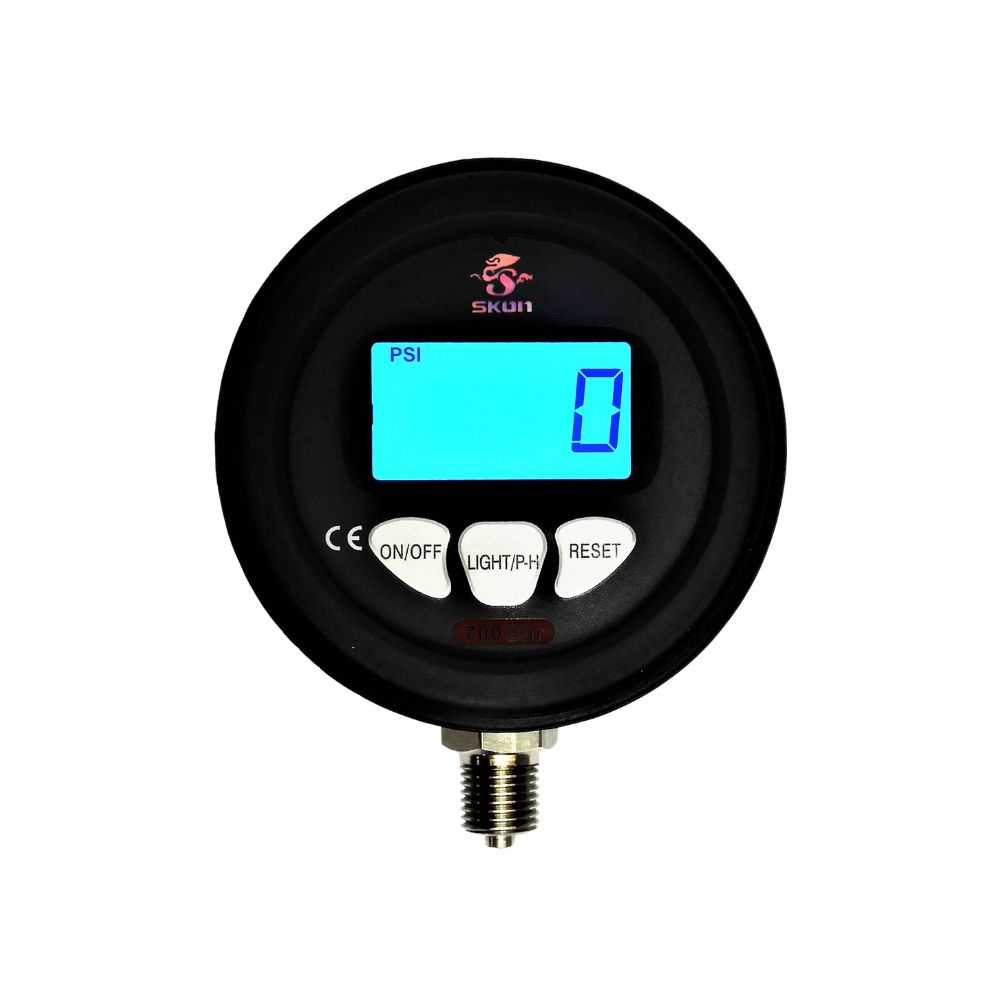

1 x Skon 0 - 700 bar digital gauge
1 x 2m Test 20 Hose
1 x 1/4" BSPP Gauge Adapter to Test 20 Male
1 x 1/4" BSPP Gauge Adapter to Test 20 Female
1 x 1/4" BSPP Male to Test 20 Male
1 x 1/8" BSPP Male to Test 20 Male

Optional CAT test point connector available see options

Many other adapter thread types and sizes available on request

Below is a video demonstration of the equivalent product (Stauff 600 BAR Digital Gauge Kit)

Buy with Confidence from a long established Hydraulic Service Center get a 12 month warranty and an Australian Tax Invoice.
