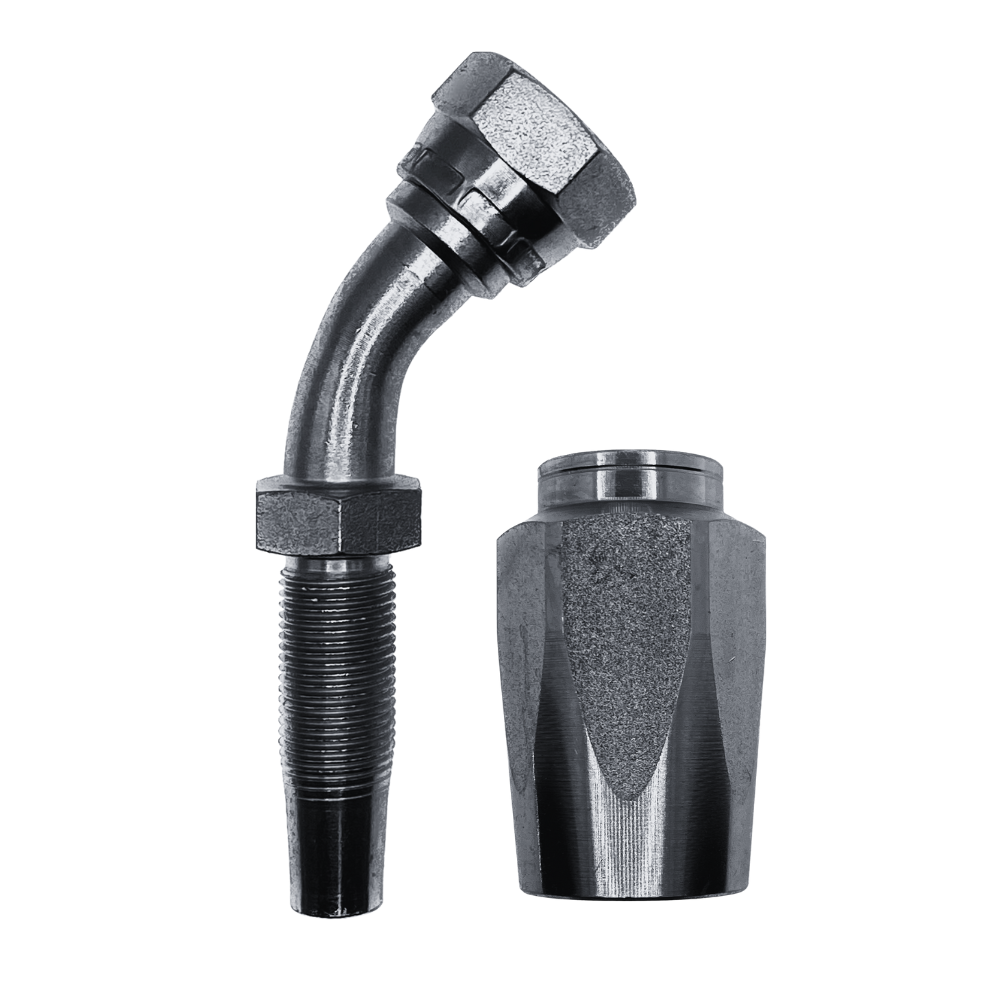

Hose Tail Reusable BSP Swivel Female 45° Swept - With One Wire Ferrule

Name: BSP Female Field Fit Reusable Hydraulic Hose Fitting with a 45° Swept Bend
Brand: Hydraulic.Online
SKU: HTR-BSF-45S-R1
Price: 11.3 AUD
Availability: InStock

Store/Reusable Fittings for Hydraulic Hose Straight, 90° & 45° Elbow Field Fit/BSP Female, Male, Straights, 90° & 45° Field Fit Reusables

SKU HTR-BSF-45S-R1

AU$11.30

On Sale

was ~~AU$21.40~~ Save 47%

Size

Hose Tail - (04) 1/4" x BSP Swivel Female - (04) 1/4" - 45° Swept

Hose Tail - (06) 3/8" x BSP Swivel Female - (06) 3/8" - 45° Swept

Hose Tail - (08) 1/2" x BSP Swivel Female - (08) 1/2" - 45° Swept

Hose Tail - (12) 3/4" x BSP Swivel Female - (12) 3/4" - 45° Swept

Hose Tail - (16) 1" x BSP Swivel Female - (16) 1" - 45° Swept

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Hose Tail Reusable BSP Swivel Female 45° Swept - With One Wire Ferrule

Store/Reusable Fittings for Hydraulic Hose Straight, 90° & 45° Elbow Field Fit/BSP Female, Male, Straights, 90° & 45° Field Fit Reusables

Product Details

Brand: Hydraulic.Online

Weight: 0.15 kg

BSP Female two piece Field Fit Reusable Hydraulic Hose Fitting with 45 degree swept bend

Repair your own hydraulic hoses in the field! 45° Hosetails BSP Female SWEPT BEND

Field Fit Hydraulic Hose fittings are a two piece assembly made from Zinc Plated Steel, they are designed to be used on most one or two wire SAE rated hydraulic hose manufactured to SAE 100R1 and SAE 100R2 Specifications.

Using basic hand tools: and following a simple assembly procedure the 2 pieces are screwed onto and into a Hydraulic Hose.

When fully assembled, the connection is rated to work safely up to the full pressure rating of the hose. Designed to repair damaged Hydraulic Hoses or to be used in new Hydraulic Hose assemblies, all without using expensive equipment.

1/4" to 1" inch hose tails with 1/4" to 1" inch Female BSPP threaded Swivel nuts.
The price is for one hosetail & one ferrule.

To buy multiple quantities of different sizes:

Select the button on the item you want to purchase then enter the quantity at the bottom of the list (you can also use the up and down arrows to add or subtract quantities.
Then click 'add to bag’, you can then select another item and repeat the procedure.
When finished click Go to Checkout box where you can review your items, and edit quantities or remove them altogether.
If you are happy with your selection you can move to checkout or click the link at the bottom of the page that states “Looking for more? Continue shopping.
Continue Shopping will take you back to the Category of Products you were looking for.

BSPT/BSPP THREAD ID CHART
BSPT / BSPP Size & Pitch	DASH SIZE	BSPT Male Thread OD		BSPP Male Thread OD		BSPT Female Thread ID		BSPP Female Thread ID
BSPT / BSPP Size & Pitch	DASH SIZE	BSPT Male Thread OD		BSPP Male Thread OD		BSPT Female Thread ID		BSPP Female Thread ID
inch – TPI		mm	inch	mm	inch	mm	inch	mm	inch
1/8 – 28	-02	9,5	0.37	9,6	0.38	8,4	0.33	8,6	0.34
1/4 – 19	-04	12,8	0.50	13,0	0.51	11,2	0.44	11,9	0.47
3/8 – 19	-06	16,3	0.64	16,5	0.65	14,7	0.59	15,2	0.60
1/2 – 14	-08	20,4	0.80	20,8	0.82	18,3	0.72	19,1	0.75
5/8 – 14	-10	22,5	0.89	22,8	0.90	20,6	0.81	20,8	0.82
3/4 – 14	-12	25,9	1.02	26,3	1.04	23,9	0.94	24,6	0.97
1 – 11	-16	32,6	1.28	33,1	1.30	29,7	1.17	30,7	1.21
1.1/4 – 11	-20	41,1	1.62	41,8	1.64	38,6	1.52	39,4	1.55
1.1/2 – 11	-24	47,0	1.85	47,7	1.88	44,5	1.75	45,5	1.79
2 -11	-32	58,6	2.31	59,5	2.34	56,4	2.22	57,4	2.26
2.1/2 – 11	-40	74,1	2.92	75,1	2.95	71,9	2.83	72,6	2.86
3 – 11	-48	86,6	3.41	87,9	3.46	84,6	3.33	85,4	3.36

Made from zinc plated steel: these DIY fittings are a cost effective design that can be assembled with simple hand tools onto one and two wire hydraulic hose manufactured to SAE 100R1 and SAE 100R2 Specifications.

Option at no extra cost: field fit body to suit SAE 100R1- Hose.

Each order comes with easy to follow assembly instructions.

To buy multiple quantities of different sizes:

Select the button on the item you want to purchase then enter the quantity at the bottom of the list (you can also use the up and down arrows to add or subtract quantities.
Then click 'add to bag’, you can then select another item and repeat the procedure.
When finished click Go to Checkout box where you can review your items, and edit quantities or remove them altogether.
If you are happy with your selection you can move to checkout or click the link at the bottom of the page that states “Looking for more? Continue shopping.
Continue Shopping will take you back to the Category of Products you were looking for.

ALSO available: BSPP Female and BSPT Male Straight reusable hydraulic Hose Fittings.

Many other thread types and sizes available on request, adaptors too, Contact us on 0755631982

POST; We are happy to combine shipping. Contact us for large orders

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
