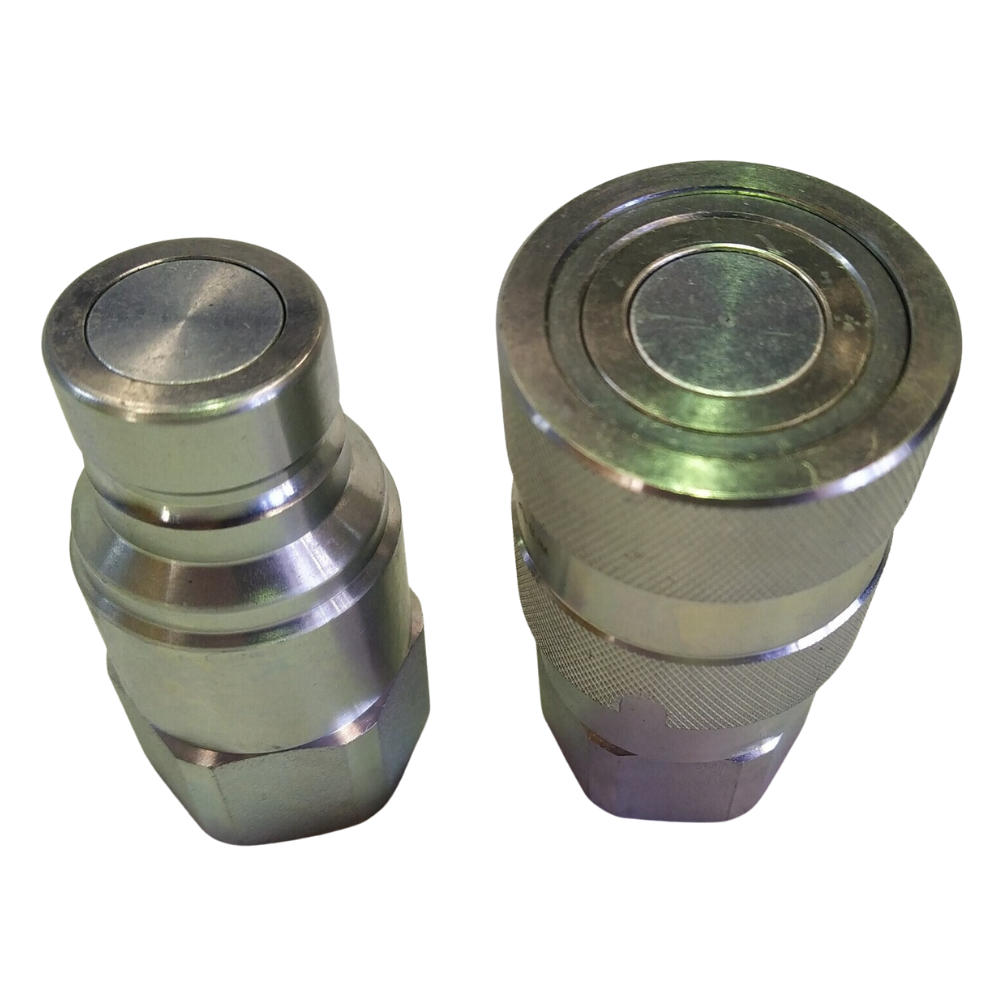

3/4" Size Body x 3/4" BSPP Thread Flat-Face Couplers, oil flow to 150 Lt/min at a pressure of 350 bar,
Compatible with all 3/4 inch ISO 16028 A SERIES couplers.

This is for one pair, ie: 1 x female and 1 x male
Flat Face hysraulic Couplers are used extensively on all manner of Hydraulic machines,
ISO16028 flat face couplers are the most common flat face couplers in use.

This size has 3/4" BSPP Threads.

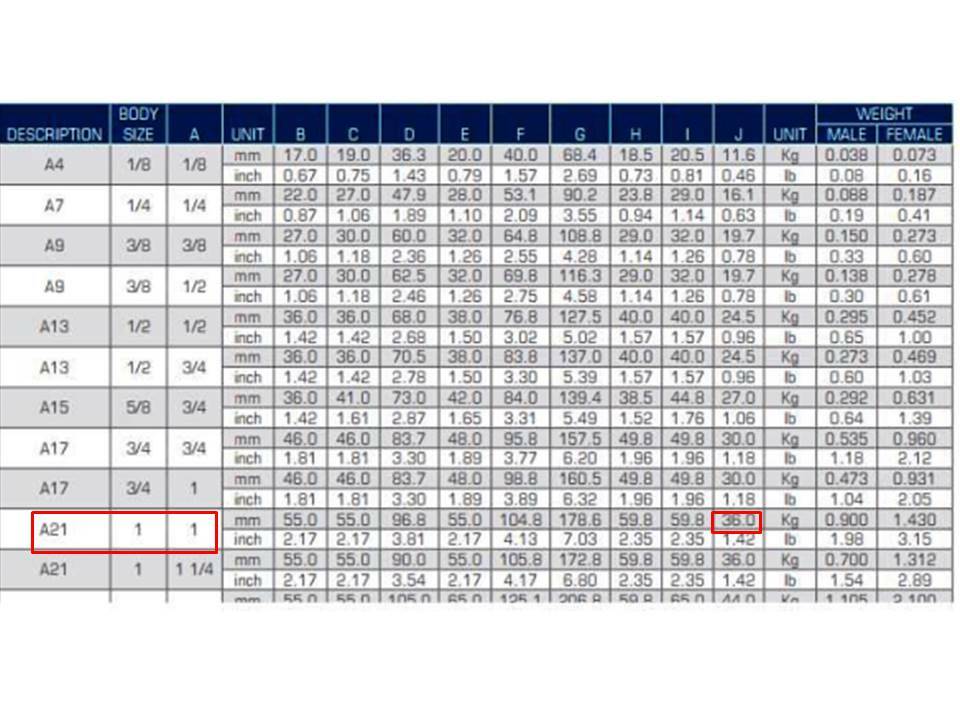

It is easy to check compatibility. Please refer to our size charts in photos for correct sizing.

The best measurement to use is 'J' column.

Suitable for applications involving dusty or dirty environments and where oil loss on disconnection cannot be tolerated.

This series of couplings are designed for use in excavator hammer and Auger circuits and other applications involving high pressure pulses. and Higher oil flow rates (up to 150 Lt/min)
Use in Construction plant, mobile equipment, general industrial, mining and agricultural.

These 3/4" flat face couplers are compatible with;
DNP PLT4, Stucchi FIRG/A Series, Faster 2FFI , Hansen QA, Ryco R110-06/08, Safeway FF49, Aeroquip FD89/FD49

Please refer to our size charts below for correct sizing. The best measurement to use is 'J' column.

Specifications

• 3/4" BSPP
• Rated Working Pressure 350 Bar (5100 PSI)
• Oil Flow up to 150 Lt/min
• Pressure drops less than 0.1 Bar @ 20 Litres / Minute
• Pressure drop is 6 Bar @ 150 Litres / Minute
• Working temperatures -20 to 100 degrees Celsius
• Carbon steel body, Heat treated to increase hardness and corrosion resistance,
• Nitrile seals. All our couplings are Zinc plated.
• Weight = 750 g
• Flat mating faces are easily wiped clean to prevent the ingress of contaminants.
• Improved oil flow path minimises pressure drop.
• Non-spill design avoids fluid loss during connection and disconnection.
• No air intrusion during connection.
• Locking sleeve prevents accidental disconnection.
• Zinc nickel surface treatment meets all 200 hour salt spray tests.
• This Series conform to ISO 16028 (2006) in all respects

Connection / Disconnection Under Pressure

For Connections with residual pressure in the line or for applications where connection under pressure is required,
HCP male couplings, or screw couplings from either the HSC, HS or RS ranges are recommended.
