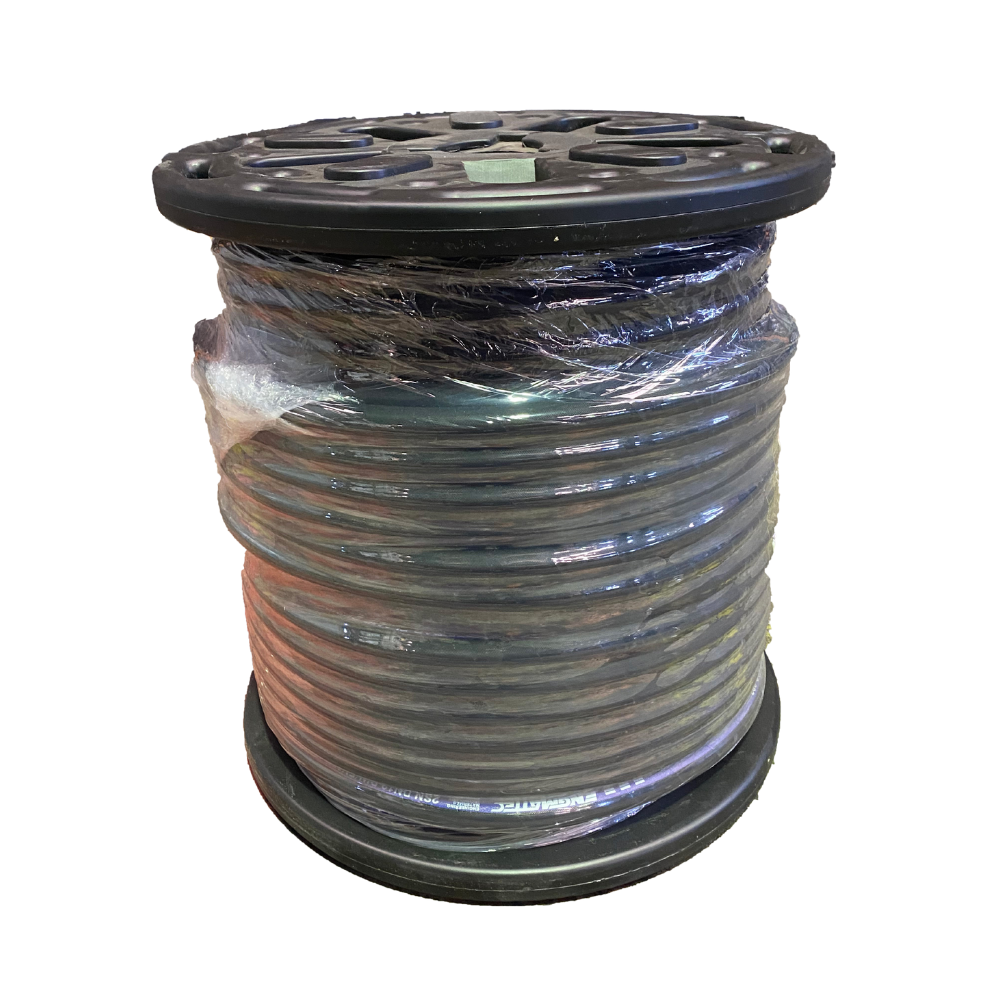

100 meter Reels of ENGMATTEC Two Wire Hydraulic Hose Bore Sizes 1/4", 3/8", 1/2" or 3/4" inch

ENGMATTEC Hydraulic hose is a non-skive Hydraulic Hose and is compatible with
German EN 853 2SN specifications as well as American SAE 100 R2 AT

ENGMATTEC Hydraulic Hose is also compatible with both
crimp on One Piece and Two Piece Hose Tails and Ferrules
(detailed and accurate crimp dimensions) available on request)
as well as Field Fit Reusable Hose Fittings

Typical Compatible Applications
High-pressure service with petroleum base hydraulic fluids
such for Earthmoving Farming and the majority of mobile plant and equipment

Hot and Cold water for Water Blasting and Pressure washing,

Water-glycol for Industrial Chilling and Engine Cooling applications,

Water-oil for Metal Machining Applications,

Compressed Air For Heavy duty industrial and workshop applications
(for air applications above 100 psi, the Outer cover should be pin pricked)

Fire-resistant hydraulic fluids as may be used in Marine and Mining Applications,

Grease, Remote Grease lines for Bearings and Bushes used Earthmoving,
Mining Equipment and Conveyors

Crude and fuel oils Fuel Supply and return lines for mobile and Stationary Engines.

ENGMATTEC Brand Hydraulic Hose if Compatible or can be used as a direct
replacement or substitute for the following Hydraulic Hose Brads

EATON GH195 AQP HI-IMPULSE hoses
MANULI FLUICONNECTO 2SN FL2T04 FL2T06 FL2T08 FL2T12

PIRTEK SAE 100R2AT,
SIZES R2AT-04, R2AT-06, R2AT-08, R2AT-12.

TOTAL RUBBER SUNFLEX SAE 100 R2AT EN 853 2SN,
SIZES HYD-R2T-04-SF-S, HYD-R2T-06-SF-S, HYD-R2T-08-SF-S, HYD-R2T-12-SF-S.

RYCO AVENGER SIZES, T24A, T26A, T28A, T212A and
RYCO DIEHARD SIZES, T24D T26D T28D AND T212D Non-Skive Hoses.

TWO WIRE HOSE FOUR MOST COMMON HYDRAULIC HOSE BORE SIZES ARE
AS FOLLOWS.,
100R2AT 1/4" DN6,
100R2AT 3/8" DN10,
100R2AT 1/2" DN12,
100R2AT 3/4" DN19

ALL THE Hoses listed above can also be used with the following branded hose fittings with the following part numbers.

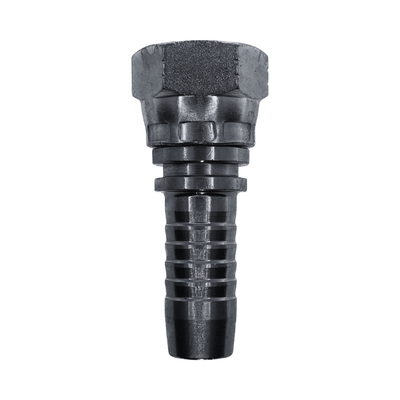

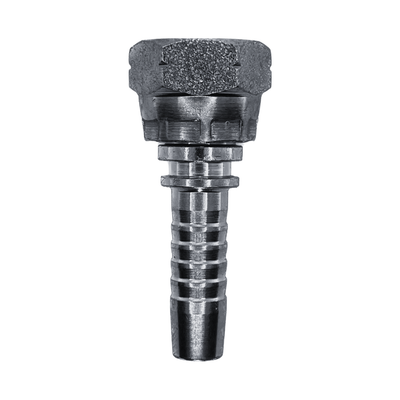

Our own ENGMATTEC 2 PIECE HOSE TAILS AND FERRULES ARE
AVAILABLE FOR BOTH One (1) AND Two (2) WIRE BRAIDED HOSE IN
04 - ¼”a, 06 - ⅜”, 08 - ½”,12 - ¾” and 1” - 16.

Also available from this webstore for immediate shipping to your address

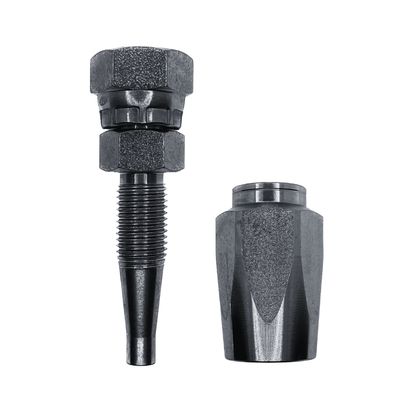

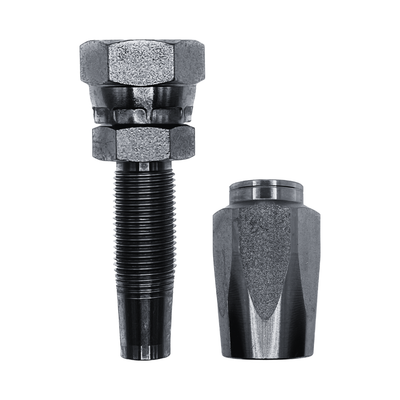

are Crimp on and reusable hose fittings in Straight, 45, and 90 elbows
are JIC Male and Female
BSP Male and Female
ORFS Male and Female
In Crimp On only
Metric Male and Female in Light (L) and Heavy (S)

Please note for 100 Metre lengths the reel may comprise one or more cut lengths to make up the full length,
Please let us know if you require a continuous length and we will do our best to accommodate

Click here to see our 10, 20, and 50 m Lengths of ENGMATTEC Hydraulic Hose

ENGMATTEC hydraulic Hose is also compatible with the following hydraulic hose fittings.
Ryco bitelok one-piece crimp non-skive t200 and t700 hose tails.

Eaton TTC / z series braided hose one-piece "bite the wire" style hose fittings.

Southcott super crimp s series stems with fnp-04, fnp-06, fnp-08, fnp-12 ferrules

As well as ezi-crimp non-skive one piece series e fittings.

Child field fit couplings series RMB, RFB, RMJ, RFJ, with BN2 non-skive bodies.

Ryco field attachable L00 series ferrules and 600 series inserts.

Taipan K series one piece non-skive hose tails
KJF, KJM and KBF, KBM or
field attachable D series eg D tails and D2 series bodies.

Construction
Synthetic rubber inner tube with two layers of braided high tensile steel wire reinforcement
and a wrapped, oil, ozone, weather, and abrasion-resistant synthetic rubber outer cover.

Need another hose size, field fit reusable fittings couplers, and or adaptors for your application?
Just contact us on (07) 5571 6155, (07) 5563 1982

MM 30/8/2023
