10 - 100 Ton Single Acting Spring Return Cylinders 10,000 Psi

Name: 10-100 Ton Single Acting Press Cylinders with Spring Return
Brand: ENGMATTEC Engineering Material Technology
SKU: GP-HR
Price: 138.0 AUD
Availability: OutOfStock

Store/High Pressure Air/Hydraulic Pumps & Cylinders

SKU GP-HR

AU$138.00

Sold out

Size

Please choose

Add 10,000 PSI Pump and Accessories ( no additional delivery fees)

Add 10,000 psi Air Operated Pump 2.3 Lt Tank (+AU$325.00)

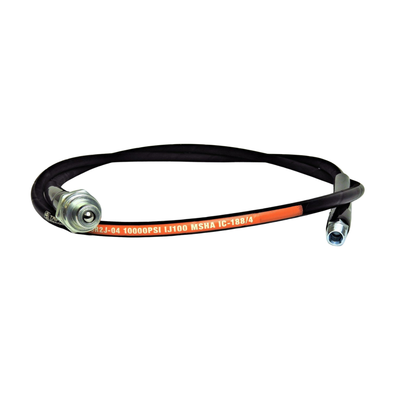

Add 2 Metre Heavy Duty 17,000 psi Hose (+AU$160.00)

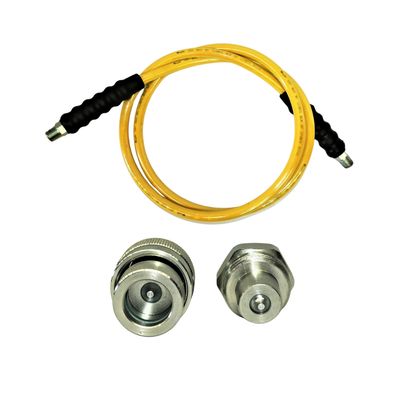

Add 3/8" NPT 10,000 psi Jacking Coupler Set (+AU$45.00)

Sold out

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

10 - 100 Ton Single Acting Spring Return Cylinders 10,000 Psi

Store/High Pressure Air/Hydraulic Pumps & Cylinders

Product Details

Brand: ENGMATTEC Engineering Material Technology

Weight: 0.50 kg

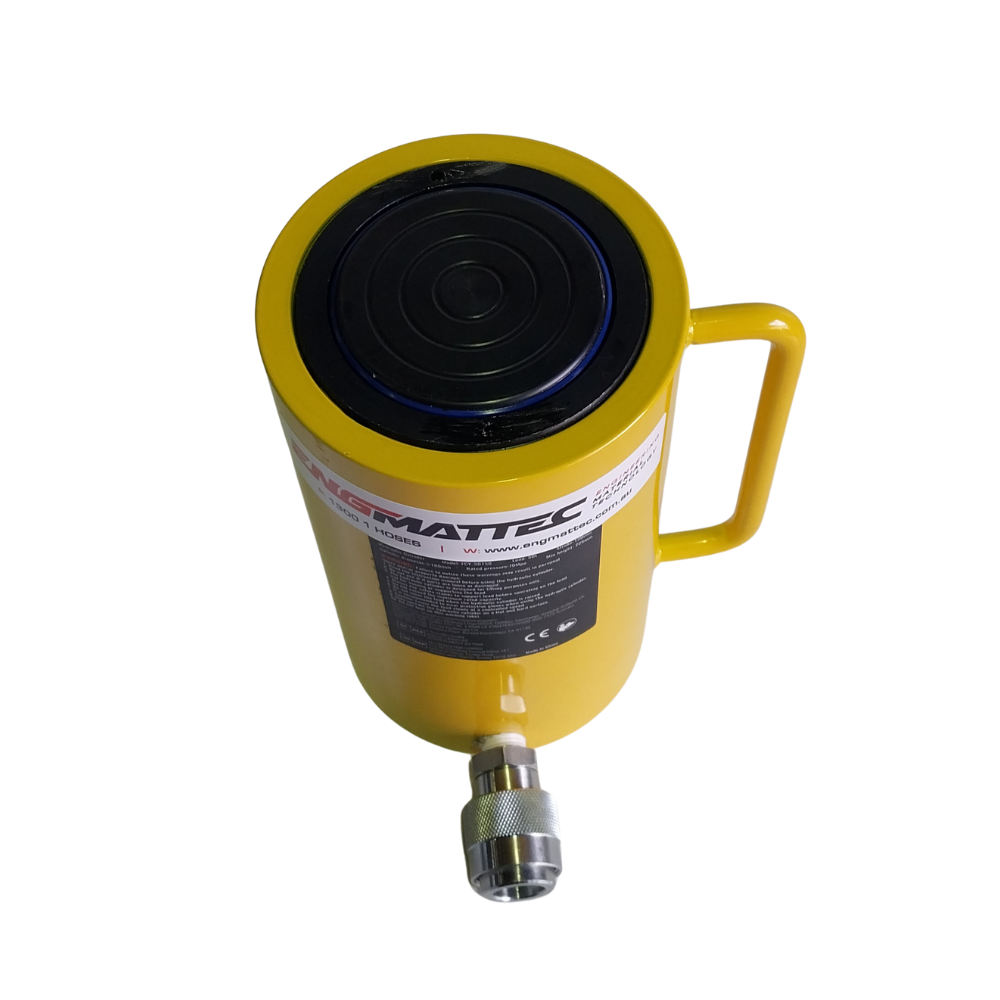

10 - 100 Ton Single Acting, Spring Return, Solid Rod Cylinders for lifting and heavy duty pressing 10,000 Psi
Can be Mounted: Vertically, Horizontally, and even upside down.

Also available on this listing: Compact Short Lift Cylinders in 10, 20, 30, and 50 ton Lift capacity and 10 to 16 mm strokes.

PLEASE Note These Items sell out very quickly: so please check stock availability carfully when placing your order.
Alternatively Please contact us for STOCK AVAILABILITY on 07 5563 1982 or on 1300 1 HOSES

Single Acting - Spring Return, Capacity: 20 - 100 Tons, Strokes : 50mm - 150mm

These are spring return, single-acting, 10,000 psi hydraulic cylinders in a large range of sizes. Please refer to the chart for available dimensions, & tonnages.

These heavy duty cylinders come with a standard female screw together jacking coupler.

Instructions for Use:
How to Lift or Shift Heavy Loads Safely:

● When lifting something heavy, make sure the centre of gravity is balanced.
Choose a jacking or lifting point that's solid, and place the base of the cylinder on a flat surface.

● Don't forget to consider the ground conditions – soft or uneven ground can cause the cylinder to tilt or sink.
Use a good, strong timber base for extra stability.

● The solid rod cylinders work just as well for lifting things vertically or Pushing Horizontally they also be used UPSIDE Down,

Specifications

maximum working pressure : 10,000 psi / 700 Bar
Strokes 10 to 150 mm
Single Acting with spring return
Hard Black or Chrome plated piston rod
The cylinder bore is roller burnished for extended life
The cylinder body is nitrided and painted for rust protection

These cylinders are available in a range of sizes and are very popular and as stock is sold fast it is best to always check on availability.

Our stock range is always changing

Freight quoted at checkout is at the best possible rates: Please note these cylinders are mostly solid steel and can be very heavy for their compact size. Larger units can be 20 KG in weight or more.
