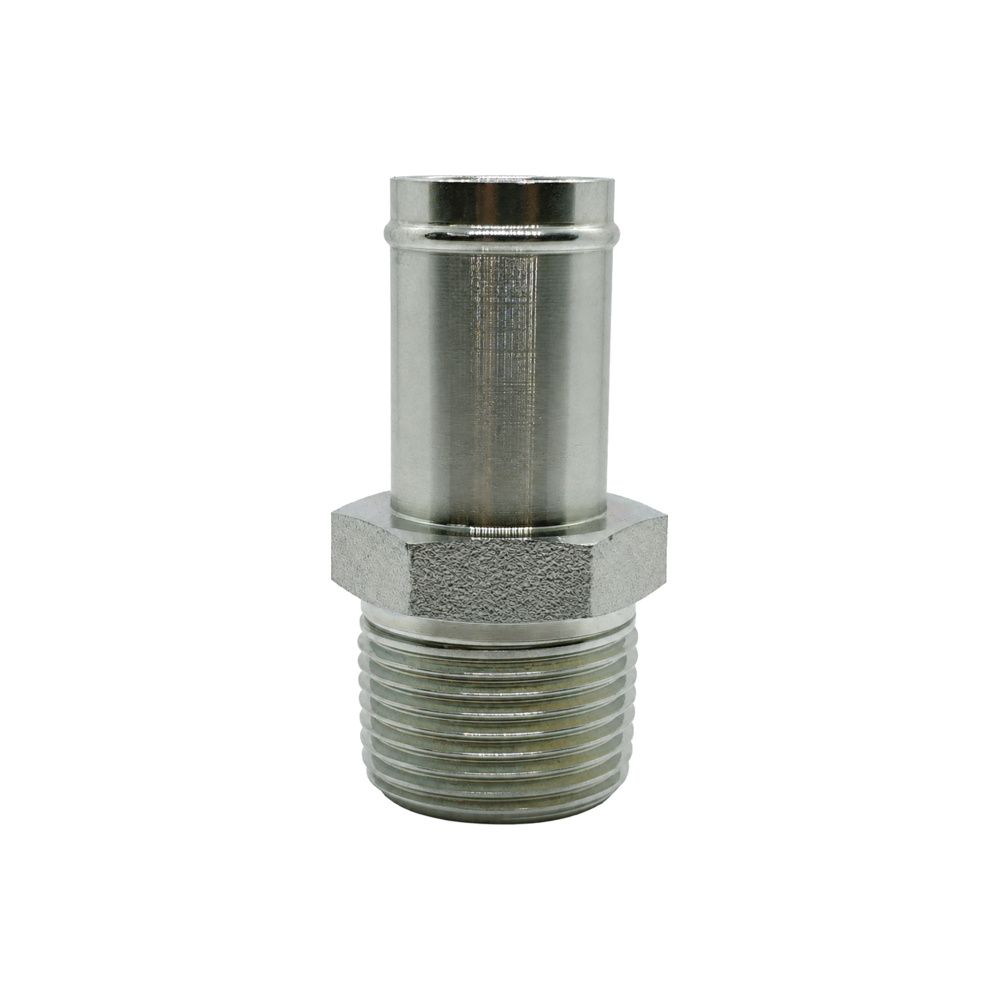

Low-Pressure Hose Tail – BSPT Male Tapered – Straight – Crimp-On

A low-pressure BSP tapered male on a straight crimp tail, for BSPT ports on return and tank lines.

Mild steel body with a plated finish, manufactured to the standard listed above.

Crimp-on – how it goes together

This is the tail (stem) only. It is crimped onto low-pressure hose with a matching ferrule, which is a separate part. This is a low-pressure tail on its own crimp system. It does not take the FS‑R2 Multi‑Fit ferrule used on our braided-hose tails, and the crimp diameters are different. Call 1300 146 737 with your hose type and we will match the right ferrule to it.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21, seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant

How to Choose

• A straight tail is the default. Only go to a bend when the hose would otherwise leave the port at an angle it does not like.
• Low-pressure duty only.
• The tapered thread seals on itself and needs a sealant rated for hydraulic oil.

Technicians Advice

Hand tight then two or three turns. Low-pressure housings are often alloy or thin-wall steel and they split far more easily than a pressure-rated port.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

What “low pressure” means here

• These tails are built for the low-pressure side of a system – return lines, case drains, suction lines and tank lines.
• They are not a substitute for a braided-hose pressure tail. If the line sees pump pressure, use a two-piece tail on 1‑wire or 2‑wire hose instead.
• The working pressure of the finished assembly is set by the lowest-rated part in it – usually the hose. Check the hose rating and match the tail to it, not the other way round.
• Suction and return lines run at low pressure but move a lot of oil. Size on bore and flow, not on the thread you happen to have spare.

Not sure which side of the system your line is on? Call 1300 146 737 with the machine and the port and we will tell you which tail it takes.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 90° Compact – same threads
