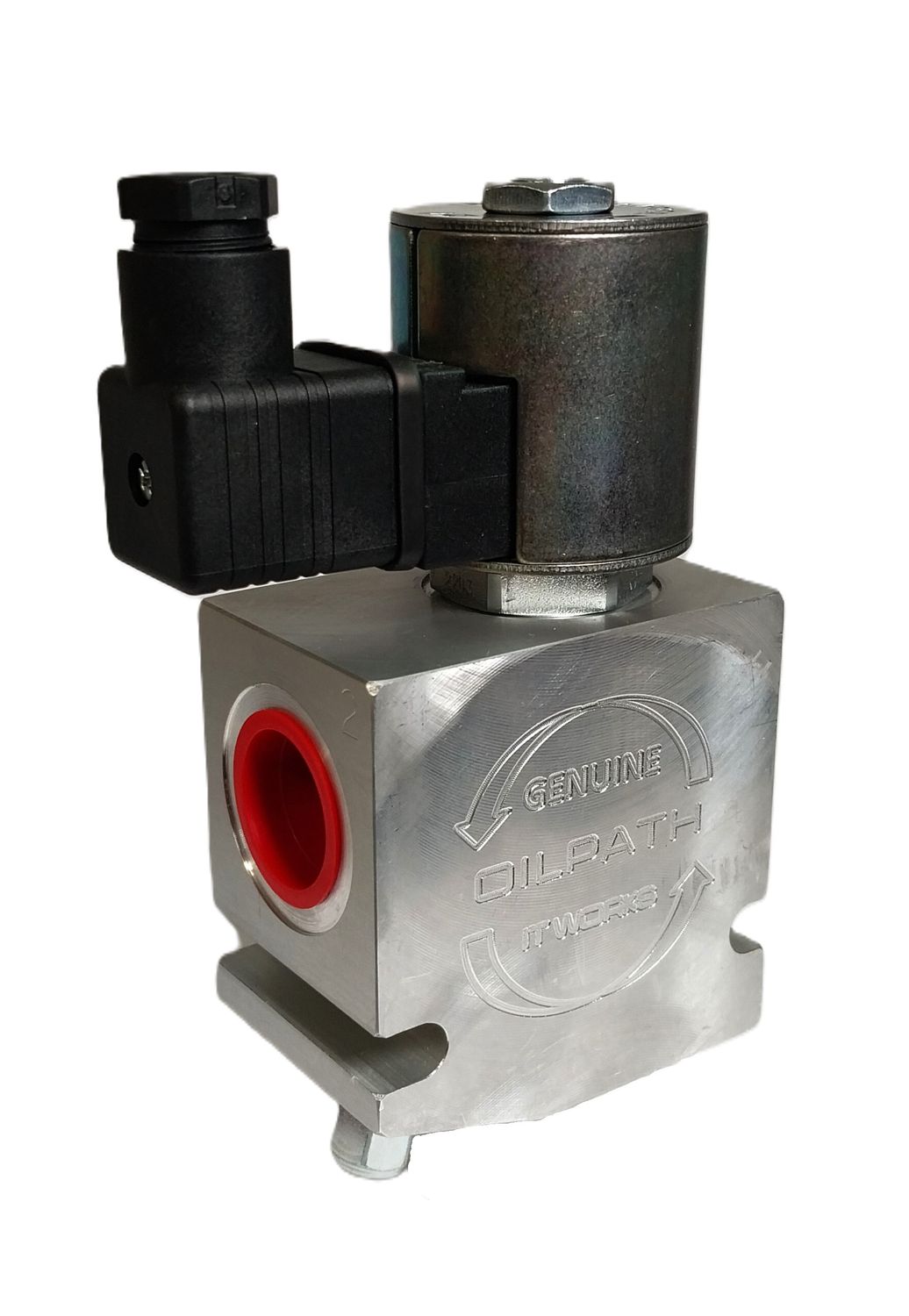

Tipper Hoist Blocking Valves DC Electric or Air Actuated
Product Details
Brand: OILPATH
Weight: 3.00 kg
Range of Oilpath 12 or 24 Volt DC electric Tipper Hoist Blocking Safety valves with flows from 62 to 124 Lt/min. Larger 180 lt/min compressed air Option
3 Fast Ways to Be Safer and Avoid Being Kicked off a Construction Site.
OILPATH OP690 Series of Electric or Compressed Air actuated Hoist Blocking Safety Valves:
For Powerful and Precise Load Control.
Take your Bogie, Tandem or Semi Tipper Truck's safety and efficiency to the next level: with the Oilpath OP 690 Series Electrically or Compressed Air actuated Hoist Blocking Safety Valves!
These innovative valves utilizes the best of both worlds: the world-renowned HydraForce USA poppet valve system known for its speed and reliability, combined with a robust Oilpath Australia -manufactured Aluminium Alloy body and a convenient manual override system.
Why Choose the Oilpath Electric Hoist Blocking Valve?
Workplace Health and Safety:, WH & S has made it mandatory that Hoist Blocking Safety Valves are installed on all Tipper Hoists on Trucks entering Construction and Government Infrastructure Sites.
Seamless Integration: Designed to work flawlessly with most existing pneumatic tipper truck systems, offering a simple and effective upgrade.
Fast, Reliable Operation: The hardened steel poppet system and high-quality electric solenoids from HydraForce USA ensure quick activation and minimal leakage.
Complete Control: The manual override system provides a backup option for added peace of mind.
Flow and Voltage Options: Choose from three flow sizes (62 Lt/min, 124 Lt/min and 180 Lt/min) and two voltage options (12V or 24V DC) and One Compressed air Option to perfectly match your tipper truck's setup.
Australian Made Quality: The Oilpath aluminium body guarantees long-lasting durability.
Need an Air Actuated Valve and Not Electric ?
then Click the Link Here 180 Lt/min Air actuated Hoist Blocking Valve with 1" inch BSPP Ports
Key Features:
Maximum working pressure: 210 bar (3000 psi)
Flow size options: 62 Lt/min (1/2" BSPP Ports ) 124 Lt/min (3/4" BSPP Ports) 180 Lt/min (1" BSPP Ports)
Voltage options: 12V or 24V DC Solenoid Coils with Hirschman plugs (1/2 and 3/4 " Port options Only)
Compressed Air Option: (1" inch BSPP ports High Flow Option)
Hardened steel poppet valve and high-quality solenoids for reliable performance
Manual override system for added control
Part Numbers and Basic Specifications
| OILPATH Code | Description | Max Flow Rate |
| 690052 | 1/2" BSPP ports 24 Volt DC Normally Closed | 62 Lt/min |
| 690053 | 3/4" BSPP Ports 24 Volt DC Normally Closed | 124 Lt/min |
| 690106 | 3/4" BSPP Ports 12 Volts DC Normally Closed | 124 Lt/min |
| 690107 | 1/2" BSPP Ports 12 Volts DC Normally Closed | 62 Lt/min |
| 690222 | 1" BSPP Ports Compressed Air Actuated Spool | 180 Lt/min |
Upgrade your tipper truck's safety and efficiency with the Oilpath Electric and compressed Air Hoist Blocking Safety Valves from Hydraulic.Online !
Order yours today and experience the difference!
Please Note: Installation must be completed by a qualified Hydraulic and Automotive electrical technician following the provided instructions.
MM 01/06/2025 abc SEO related
You May Also Like
🔥 EOFY SALE!
Air Operated Tipper Hoist Blocking & Safety Valve WH&S
Air Operated Tipper Hoist Blocking & Safety Valve WH&S
was AU$723.00
Save 18%
AU$596.00
🔥 EOFY SALE!
OILPATH Hoist Control Valve Bogie and Tandem Tippers
OILPATH Hoist Control Valve Bogie and Tandem Tippers
was AU$676.00
Save 17%
AU$558.00
🔥 EOFY SALE!

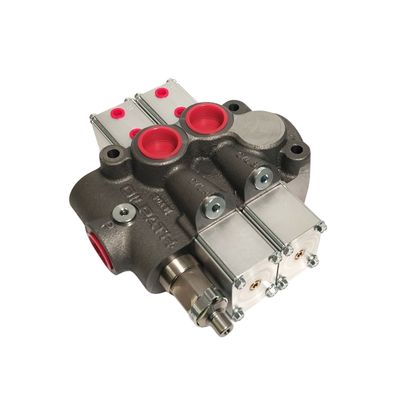

OILPATH High Speed Truck and Dog Hydraulic Tipper Valve
