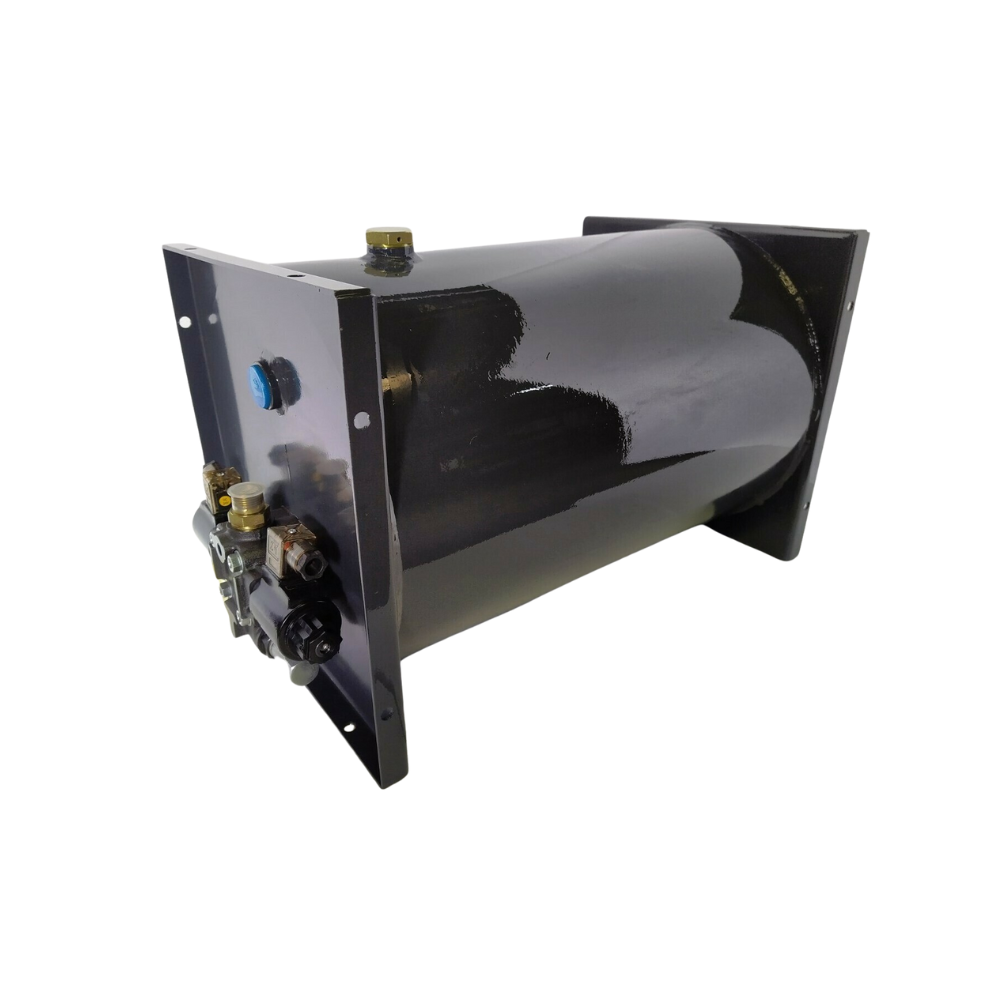

30 Litre Oil Tank With 45 Lpm Tipper Valve
This is an ideal oil reservoir & tipper valve for smaller size tipping trucks. The valve is a full electric, 45 LPM unit. No need to attach air to operate. To use, install an up / down switch, then turn your PTO pump on, flick the Up switch, the tub rises, push the switch down, tub lowers. It is important to know the flow rate of your PTO pump. If greater than 45LPM, you will need a bigger valve, see our air-operated ones. Trying to push too much Lpm through an undersized valve will cause potential pump failure.
Specs
30 Litre volume tank.
510 mm long, 330mm square mount. (The Valve sticks out an extra 40mm)

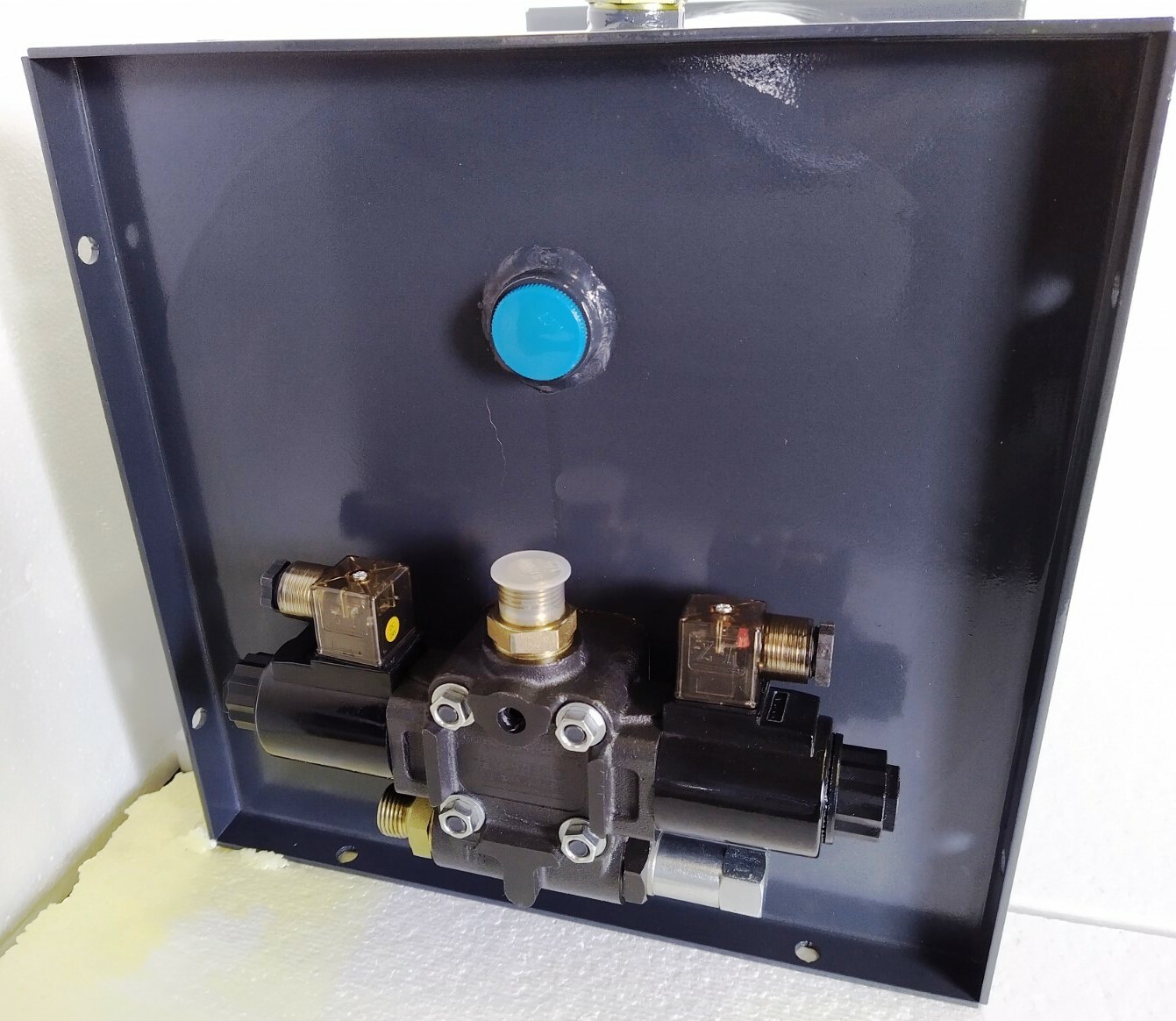

12 or 24 v full electric tipper valve included.
1/2" Bsp male threads x 2 on the valve for hoses
The tank has a 3/4" BSP drain plug & an extra 3/4" BSP port on the side. No plugs provided
