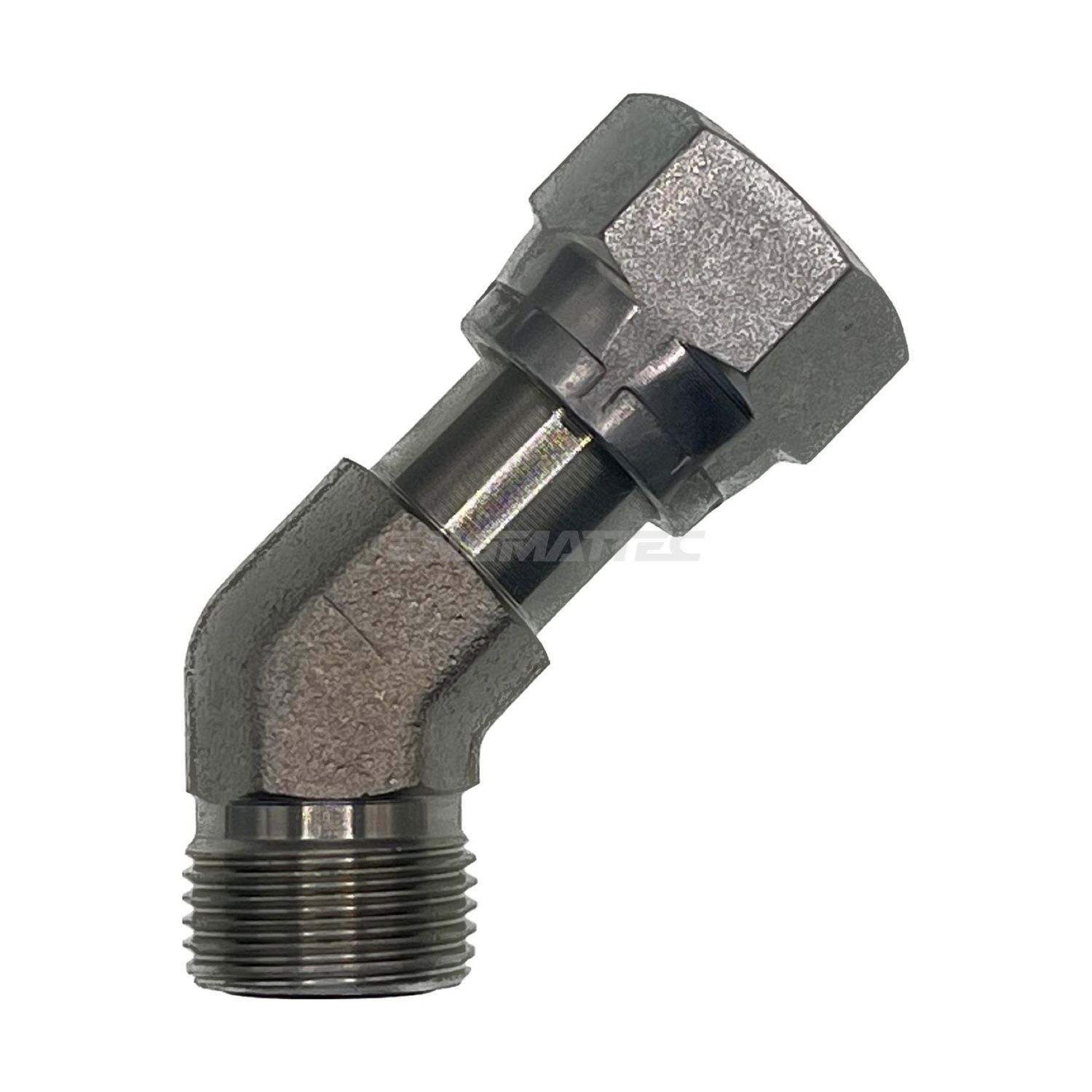

ORFS Swivel Female x ORFS Male 45° Compact Elbow

Flat-face O-ring seal at both ends in a compact 45° body. ORFS is the standard for high-pressure work that vibrates – excavators, drill rigs, crushers – because the seal is an O-ring on a flat face rather than a metal cone that can fret loose.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: 90 ° Hydraulic Adaptors How They Work and the Importance of O'Rings

Thread Standards

• ORFS Swivel Female – SAE J1453 O-ring face seal. It clamps down onto the male flat face O-ring and swivels for alignment.
• ORFS Male – SAE J1453 O-ring face seal. It seals on an O-ring sitting in the flat face groove, never on the thread.

How to Choose

• Match the flat face size, not just the thread. ORFS thread sizes repeat across different face diameters.
• The O-ring lives in the male face. Check it is present and undamaged before assembly, because a missing O-ring will not seal at any torque.
• ORFS and JIC are not interchangeable even where the nut appears to fit.

Where You’ll Find It

• ORFS Swivel Female – Hose ends on modern high-pressure plant where a cone joint would fret loose under vibration.
• ORFS Male – High-pressure, high-vibration circuits on late-model excavators, drill rigs, crushers and forestry gear.

Cross-Reference

• ORFS Swivel Female – SAE J1453 / ISO 8434-3 O-ring face seal. Parker series Seal-Lok.
• ORFS Male – SAE J1453 / ISO 8434-3 O-ring face seal. Parker call this series Seal-Lok. Also written ORFS or flat face.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Technicians Advice

The most common ORFS failure is a nicked or twisted O-ring, not a loose nut. Wipe both faces clean, roll the O-ring into its groove rather than stretching it over the thread, and bring the swivel up square. Once the faces touch, very little extra torque is needed.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	S1	Material	Finish
ORF-ORM-45C-0909	–	–	17.5mm	14.3mm	Mild steel	Plated finish
ORF-ORM-45C-0911	11/16" ORFS	9/16" ORFS	17.5mm	19.1mm	Mild steel	Plated finish
ORF-ORM-45C-1111	–	–	20.6mm	19.1mm	Mild steel	Plated finish
ORF-ORM-45C-1313	–	–	23.8mm	19.1mm	Mild steel	Plated finish
ORF-ORM-45C-1616	–	–	28.6mm	27.0mm	Mild steel	Plated finish
ORF-ORM-45C-1919	–	–	34.9mm	34.9mm	Mild steel	Plated finish
ORF-ORM-45C-2323	–	–	41.3mm	36.5mm	Mild steel	Plated finish
ORF-ORM-45C-2727	–	–	47.6mm	41.3mm	Mild steel	Plated finish

Key: H centre to face, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

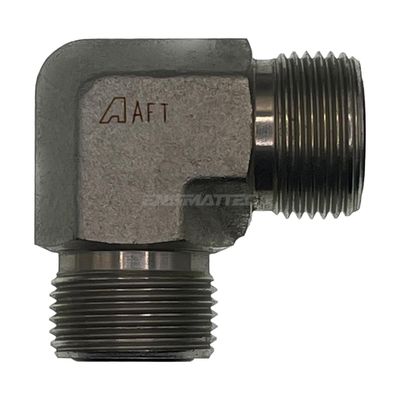

🔗 Straight – same threads🔗 90° Compact – same threads
