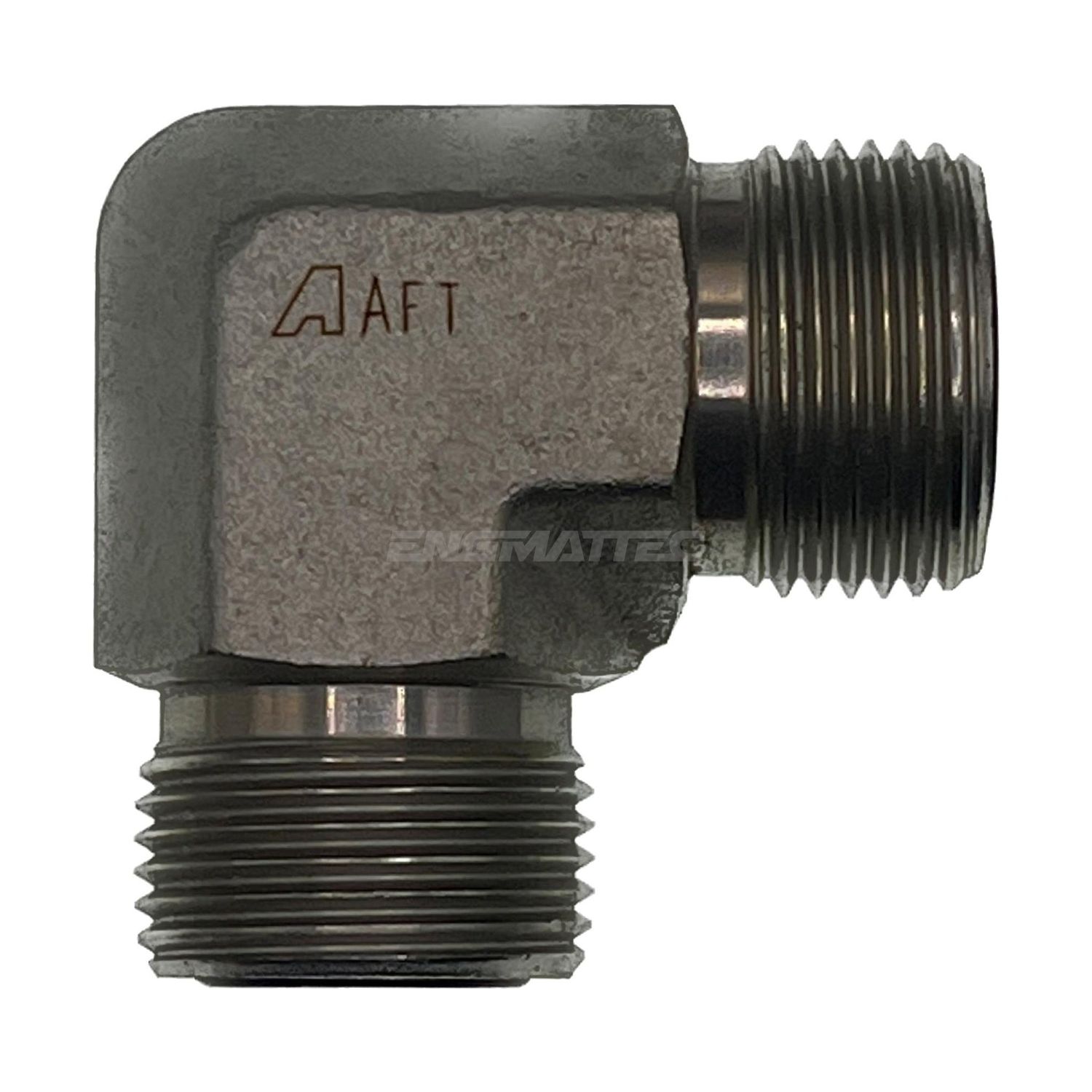

ORFS Male x ORFS Male 90° Compact Elbow

Male-to-male ORFS at 90°, for joining two swivel-nut hose ends or turning a line between two ORFS females. Two flat faces, two O-rings, nothing that frets loose.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• ORFS Male – SAE J1453 O-ring face seal. It seals on an O-ring sitting in the flat face groove, never on the thread.

How to Choose

• Both ends need an ORFS swivel female or female port to land on.
• Match the flat face diameter at each end - unequal male-to-male ORFS elbows are stocked.
• Both O-rings must be present. A missing one will not seal at any torque.

Technicians Advice

Two faces means two O-rings to lose. Check both before you start, and keep the faces capped until fitting. A scratch across a flat face is harder to spot than a damaged cone and just as fatal to the joint.

Where You’ll Find It

• ORFS Male – High-pressure, high-vibration circuits on late-model excavators, drill rigs, crushers and forestry gear.

Cross-Reference

• ORFS Male – SAE J1453 / ISO 8434-3 O-ring face seal. Parker call this series Seal-Lok. Also written ORFS or flat face.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	S1	Material	Finish
ORM-ORM-90C-0909	14.3mm	Mild steel	Plated finish
ORM-ORM-90C-1111	19.1mm	Mild steel	Plated finish
ORM-ORM-90C-1313	19.1mm	Mild steel	Plated finish
ORM-ORM-90C-1616	27.0mm	Mild steel	Plated finish
ORM-ORM-90C-1919	31.2mm	Mild steel	Plated finish
ORM-ORM-90C-2323	36.5mm	Mild steel	Plated finish
ORM-ORM-90C-2727	41.3mm	Mild steel	Plated finish

Key: S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 Straight – same threads
