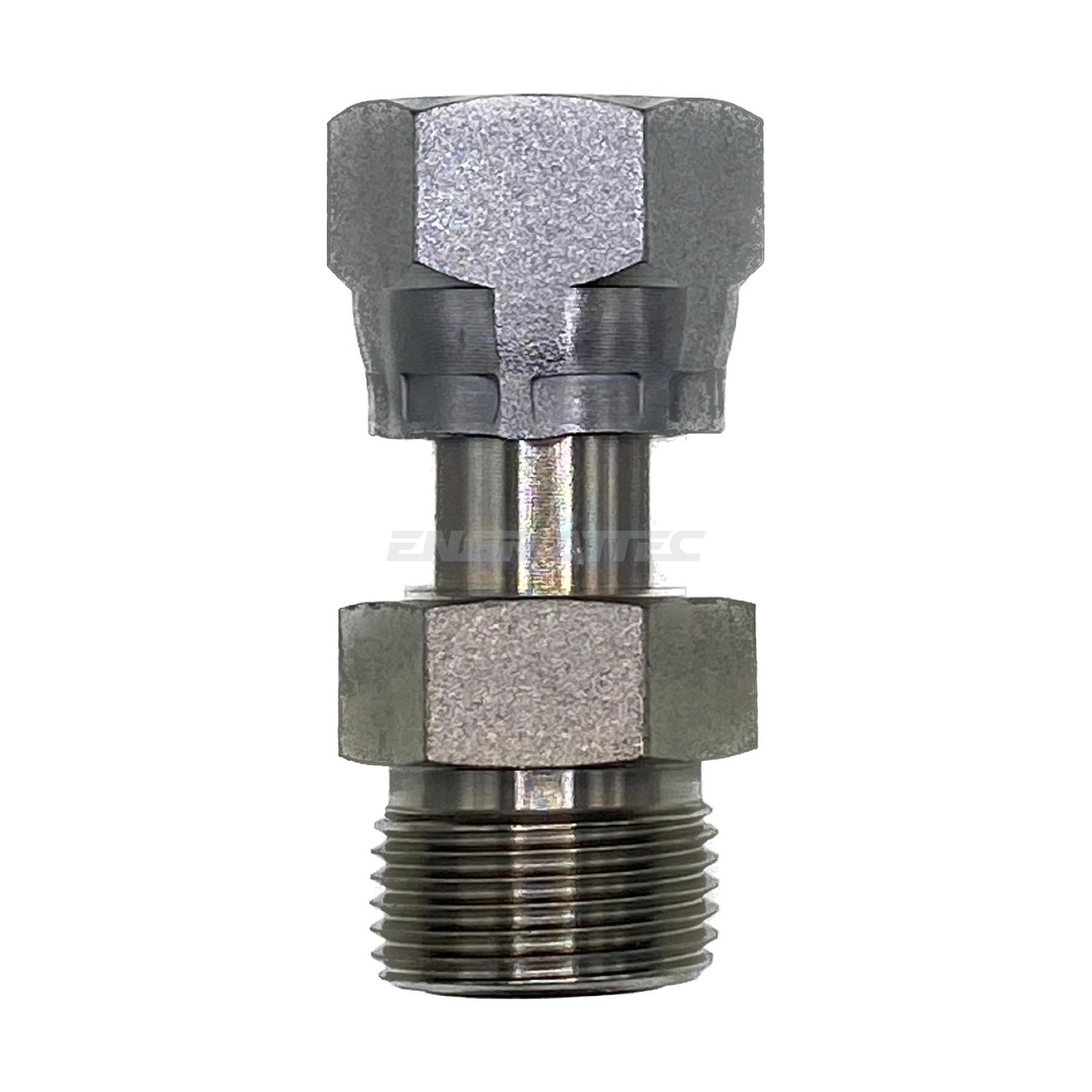

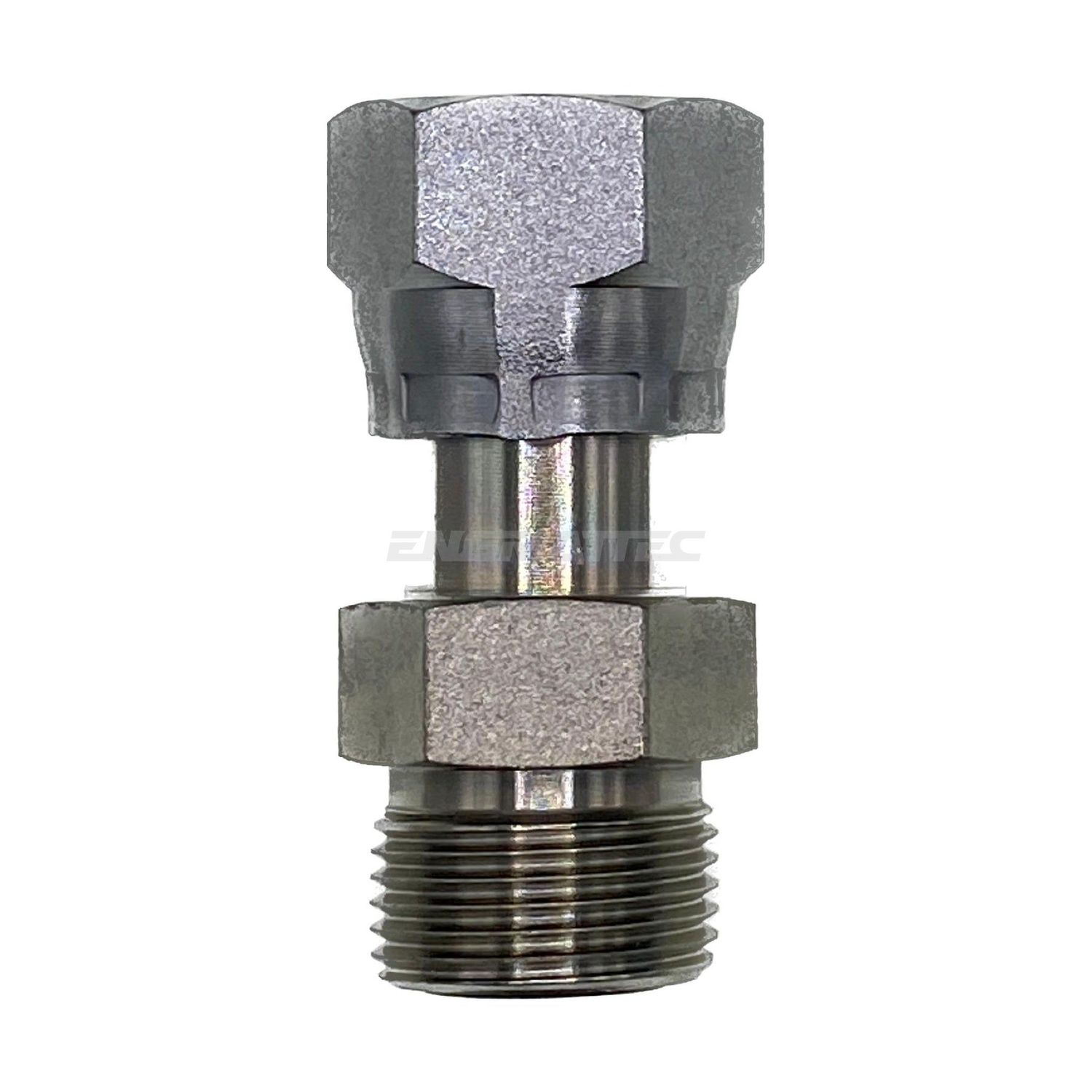

ORFS Swivel Female x ORFS Male Straight Adaptor

O-ring face seal both ends, swivel female one side and male the other. The extension and size-change piece for machines built entirely on ORFS, which is most late-model equipment.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• ORFS Swivel Female – SAE J1453 O-ring face seal. It clamps down onto the male flat face O-ring and swivels for alignment.
• ORFS Male – SAE J1453 O-ring face seal. It seals on an O-ring sitting in the flat face groove, never on the thread.

How to Choose

• Both ends seal on an O-ring in a flat face. Nothing goes on either thread.
• Check both grooves and both rings before fitting. A missing ring on the end you cannot see is easy to do.
• ORFS thread size and line size are different numbers, so work to the dash size on the hose.

Technicians Advice

ORFS is the standard to have where a machine vibrates hard, because there is no sealant to shake loose and no metal seat to fret. That only holds if the rings are right, so make a habit of looking into both faces before the fitting goes near the machine.

Where You’ll Find It

• ORFS Swivel Female – Hose ends on modern high-pressure plant where a cone joint would fret loose under vibration.
• ORFS Male – High-pressure, high-vibration circuits on late-model excavators, drill rigs, crushers and forestry gear.

Cross-Reference

• ORFS Swivel Female – SAE J1453 / ISO 8434-3 O-ring face seal. Parker series Seal-Lok.
• ORFS Male – SAE J1453 / ISO 8434-3 O-ring face seal. Parker call this series Seal-Lok. Also written ORFS or flat face.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
ORF-ORM-0909	–	–	34mm	17.5mm	16mm	Mild steel	Plated finish
ORF-ORM-0911	9/16" ORFS	11/16" ORFS	25mm	–	19mm	Mild steel	Plated finish
ORF-ORM-1109	11/16" ORFS	9/16" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-1111	–	–	38mm	20.6mm	19mm	Mild steel	Plated finish
ORF-ORM-1113	11/16" ORFS	13/16" ORFS	26mm	–	22mm	Mild steel	Plated finish
ORF-ORM-1309	13/16" ORFS	9/16" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-1313	–	–	44mm	23.8mm	22mm	Mild steel	Plated finish
ORF-ORM-1316	13/16" ORFS	1" ORFS	31mm	–	27mm	Mild steel	Plated finish
ORF-ORM-1609	1" ORFS	9/16" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-1611	1" ORFS	11/16" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-1616	–	–	51mm	28.6mm	27mm	Mild steel	Plated finish
ORF-ORM-1619	1" ORFS	1.3/16" ORFS	35mm	–	30mm	Mild steel	Plated finish
ORF-ORM-1909	1.3/16" ORFS	9/16" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-1911	1.3/16" ORFS	11/16" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-1913	1.3/16" ORFS	13/16" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-1916	1.3/16" ORFS	1" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-1919	–	–	58mm	34.9mm	32mm	Mild steel	Plated finish
ORF-ORM-2313	1.7/16" ORFS	13/16" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-2316	1.7/16" ORFS	1" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-2319	1.7/16" ORFS	1.3/16" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-2323	–	–	62mm	41.3mm	38mm	Mild steel	Plated finish
ORF-ORM-2713	1.11/16" ORFS	13/16" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-2719	1.11/16" ORFS	1.3/16" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-2723	1.11/16" ORFS	1.7/16" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-3223	2" ORFS	1.7/16" ORFS	–	–	–	Mild steel	Plated finish
ORF-ORM-3227	2" ORFS	1.11/16" ORFS	–	–	–	Mild steel	Plated finish
ORM-ORF-1113	13/16" ORFS	11/16" ORFS	–	–	–	Mild steel	Plated finish
ORM-ORF-1316	1" ORFS	13/16" ORFS	–	–	–	Mild steel	Plated finish

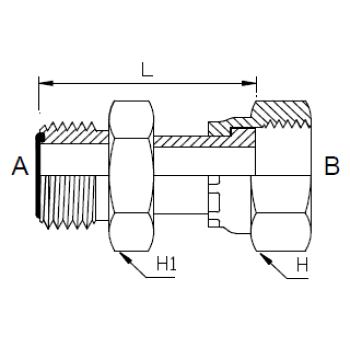

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 45° Compact – same threads🔗 90° Compact – same threads
