OILPATH 6 Port Hydraulic Selector Valve 118 l/m 210 bar

Name: 6 Port Hydraulic Selector Valve Detent Lever 26 GPM 3,000psi
Brand: OILPATH Australia
SKU: OP80
Price: 376.0 AUD
Availability: InStock

Store/Valves for Controlling and Directing Oil Flow and Pressure

SKU OP80-01200

AU$376.00

🔥 EOFY SALE!

was ~~AU$470.00~~ Save 20%

Port Size, Thread, Spool Centre, B1 Air Kit

7/8" UNO Ports Push Pull Black Knob 08001200

1-1/16" UNO Ports with Detent Lever 08000400

7/8" UNO Ports with Detent Lever 08000300

1/2" BSPT Ports with Detent Lever 08000100

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

OILPATH 6 Port Hydraulic Selector Valve 118 l/m 210 bar

Store/Valves for Controlling and Directing Oil Flow and Pressure

Product Details

Brand: OILPATH Australia

Weight: 5.10 kg

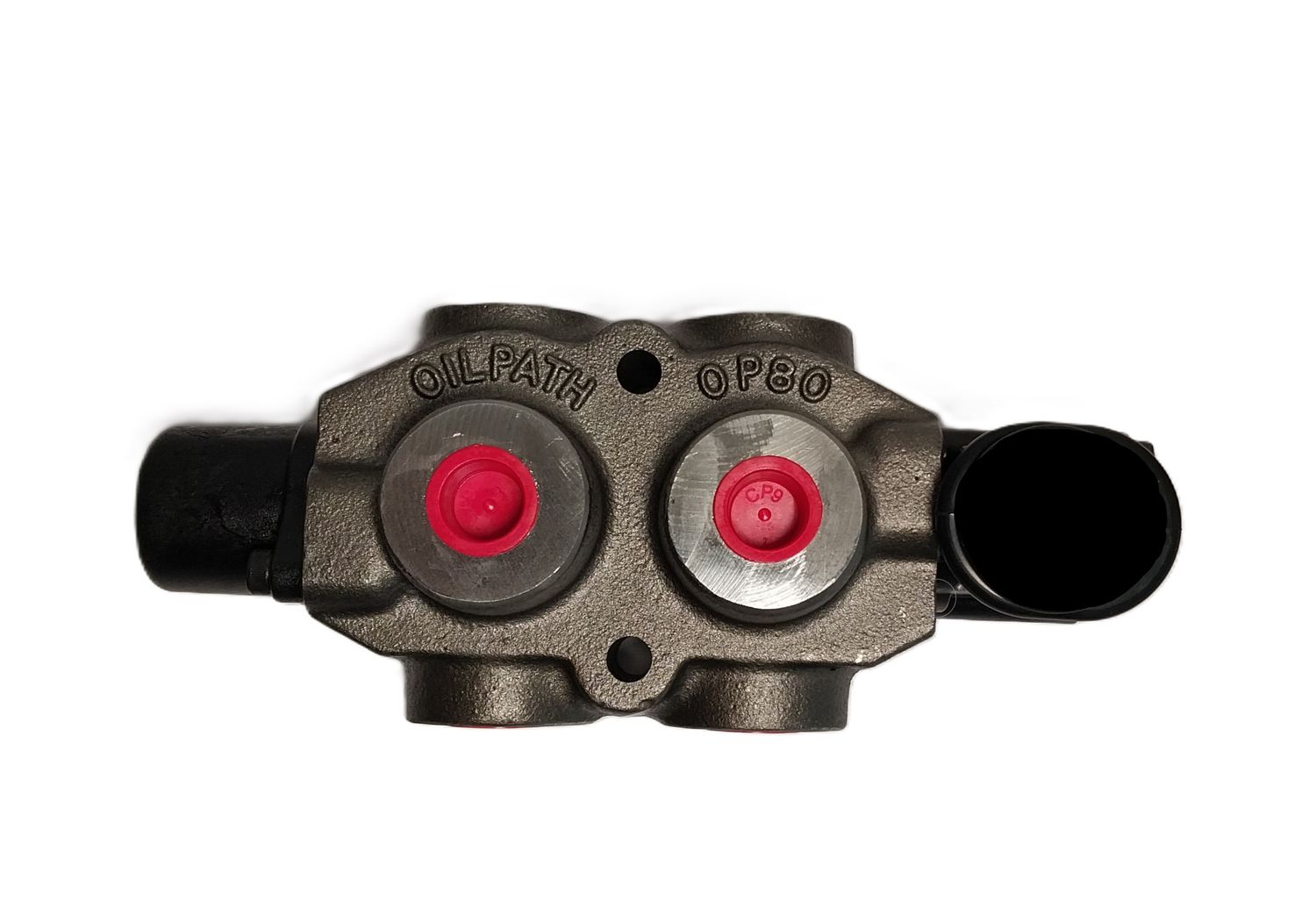

OILPATH OP80 High-Pressure 6-Port Diverter / Selector Valve

Built tough for demanding Australian applications, the OP80 is a high-quality, manually actuated lever operated selector valve with optional lever lock or detent fitted as standard.

Specifically designed for high-pressure hydraulic systems that require a cost-effective expansion.
For example: The addition of a double-acting hydraulic circuit or function.

Features:

Australian Made: Cast Iron body with hardened Alloy Steel Spool, Chrome Plated for longevity, manufactured right here in Adelaide AU.

High Pressure Performance: Handles working pressures up to 210 bar (3,000 psi) with a casting shock pressure of 840 bar (12,000 psi).

High Flow Capacity: Delivers a rated flow of 118 litres/min (26 GPM).

Simple Operation: Easy push-pull lever with locking detent operation for effortless control (optional knob actuator available).

Versatile Configuration: Standard 1/2” BSPT ports with optional sizes available (7/8” UNO, 1-1/16” UNO, 3/4" BSPT)

6-Way, 2-Position Circuit: Provides precise control of oil flows, and easily expanding the functionality of limited hydraulic systems.

Top Inlet Ports: Optimised design for easy integration into existing setups.

Customizable Options: Enhance functionality with handle operation, air actuation, detent system, spring offset (available upon request).

Impact and Corrosion Resistant Lever and Spring Boxes: Manufactured from Glass Reinforced Nylon.

Spare Parts and Seal Kits: always available and in Stock

The OILPATH OP80 is the perfect choice for a wide range of hydraulic applications in Australia, including:

Construction Equipment
Material Handling
Agriculture
Mining
Manufacturing

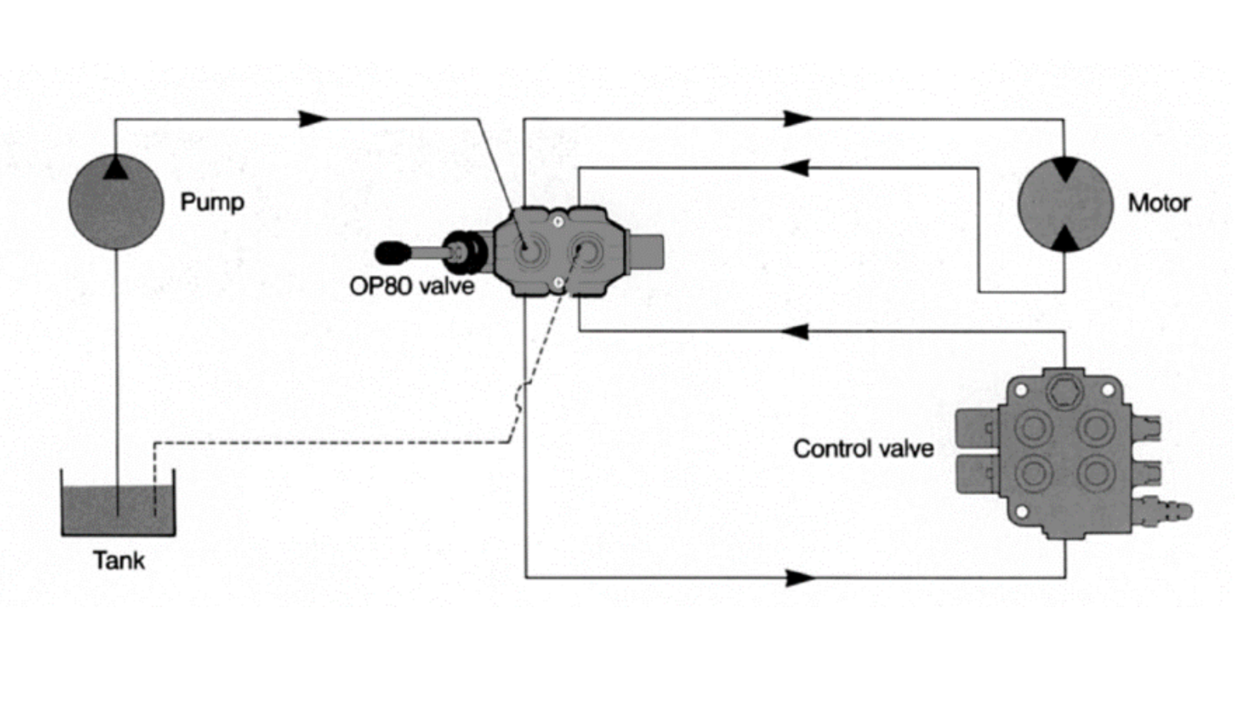

How to Install and connect up the 6 Port Selector / Diverter Valve to create an additional Hydraulic function:

Problem : Use a 6-Port Hydraulic Selector Valve for Rock Grab Rotator by using the Boom Swing Control function.

Challenge: Mick's excavator lacks dedicated hydraulic circuits to operate a newly installed rock grabber with a rotator.

Solution: Introduce a 6-port selector/diverter valve to manage flow between the boom swing function and the rock grab's rotator.

Components Required:

6-Port Diverter Valve (with Ports labelled A to F)

6 x Adaptors to connect original and new hydraulic hoses

4 x New Hydraulic Hoses for Existing Boom Swing cylinder and new rotator motor on Rock Grab

Process:

Diverting Flow: Identify the less frequently used supply and return lines to a function
(in this example we selected the boom swing cylinder function).
Disconnect the two hoses connected to the boom swing cylinder (coming from he original excavator control valve.

Connecting to Diverter Valve:

Connect the original two supply hoses to and from the boom swing cylinder to Port A and Port B of the 6-port diverter valve.

(It doesn't matter which as the original machine valve will control flow direction)

New Boom Swing Supply:

Make up and Connect 2 new hoses from Port C and Port D of the selector valve to the two ports on the boom swing cylinder.

Rotator Control:

Make up and Install 2 new hydraulic lines from Port E and Port F of the selector valve to the rock grab's rotator ports.

Operation:

Boom Swing Engaged: When the Selector valve remains in its default position, oil flows freely through the chosen path (A to C or B to D) powering the boom swing function as usual. Oil returns from the boom swing cylinder through the other path (D to B or C to A) and back to the oil reservoir.

Boom Swing Lock and Rotator Activation: By flipping the lever on the diverter valve, Ports C and D are blocked. This effectively locks the boom swing cylinder in place by stopping oil flow in both directions. Simultaneously, Ports E and F open, allowing oil to flow and control the rock grabber's rotator function.

Benefits:

Enables independent operation of the boom swing and the rock grabber with rotator.

Provides precise control over rock positioning with the rotator function while the boom is stationary.

Utilizes existing hydraulic components with minimal modification.

Overall, the 6-port diverter valve with its strategically located ports offers a practical solution for excavators and other hydraulic machinery with limited hydraulic circuits.
This valve allows for the addition of a rock grab rotator or other independent control that is powered by an underutilised function such as the boom swing and repurposed (temporarily) for rock positioning.

Contact Hydraulic.online today to learn more about the OP80 and how it can improve your hydraulic system's performance!

click here to email us

or Phone us on 07 5563 1982 or on 1300 1 HOSES

PART NUMBER	PORTS	MAX PRESSURE	MAX FLOW	ACTUATION AND SPOOL CROSSOVER
08000100	1/2" BSPT	210 bar (3,000 psi)	118 Lt/min (26 GPM)	Lever Handle with Detent - Closed Centre
08001200	7/8" UNO	210 bar (3,000 psi)	118 Lt/min (26 GPM)	Black Knob Push / Pull Type
08000400	1-1/16" UNO	210 bar (3,000 psi)	118 Lt/min (26 GPM)	Lever Handle with Detent - Closed Centre
08000300	7/8" UNO	210 bar (3,000 psi)	118 Lt/min (26 GPM)	Lever Handle with Detent - Closed Centre

Please note:

Options and alternative port sizes may require additional lead time.

For detailed specifications and technical drawings, please refer to the attached images and datasheets.

Buy with Confidence from a long established Hydraulic Service Centre get a 12 month warranty and an Australian Tax Invoice.

Hours: 8am to 4pm Monday - Friday, QLD Time excluding public holidays

If we are of Stock

It is our desire to always have every listed item actively in stock. Occasionally (but very seldom) due to high demand, short supply or human error we may be momentarily out of stock on an item.

If this happens you will be notified and given the option to either cancel for a full refund or wait for the part to come in (typically 3-14 days).

If you have any questions please don’t hesitate to contact us for further assistance,

Best regards,

Hydraulic.Online

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
