Built tough for demanding Australian applications,

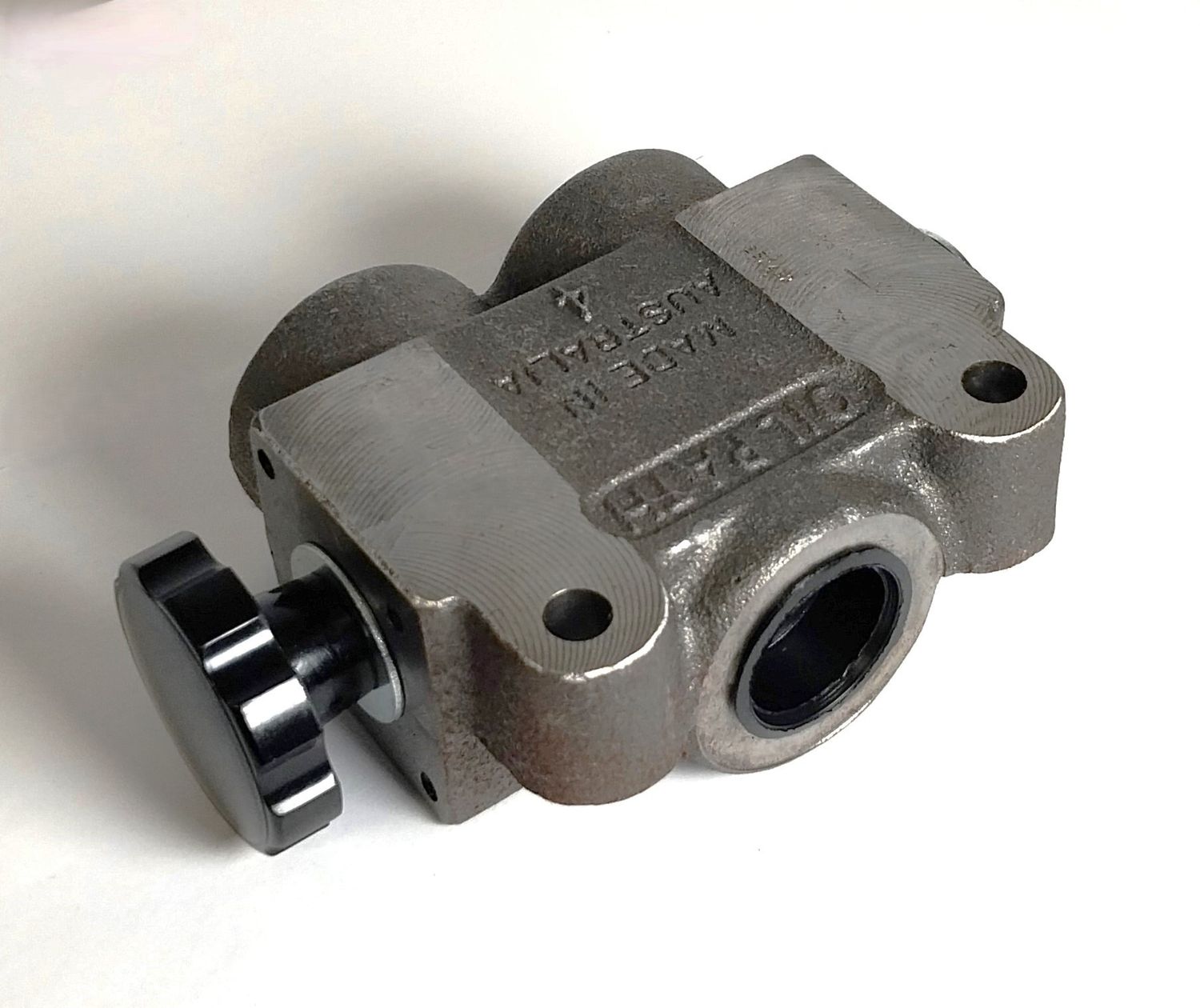

The OP27 is a high-quality, manually operated Push Pull Type Selector valve.

High-Pressure Performance: Handles working pressures up to 210 bar (3,000 psi)
The casting is resistant to shock pressures of up to 840 bar (12,000 psi) so it can handles the knocks, rocks, and timber in the bush, fields and the worksite.

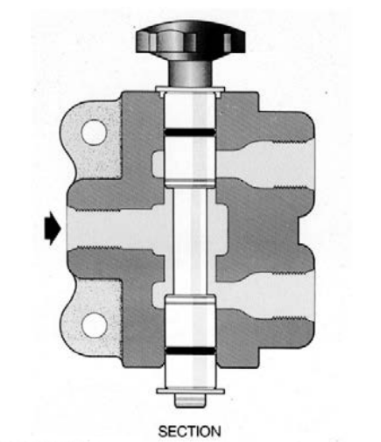

The Spool is manufactured from Heat Treated Alloy Steel and then Chrome Plated.

Versatile Configuration: Standard 1" or 3⁄4” BSPT ports with
optional sizes available (7/8”UNO, 1-1/16”UNO, 1-5/16”UNO, 3⁄4”BSPP, 1”BSPP, 1⁄2” BSPT & 1” BSPT).

3-Way, 2-Position Circuit:
Ideal for applications requiring flow diversion between two functions.

For sluggish feeling Rock Breakers: that are struggling to crack even small rocks?

Many excavator owners face the same problem: a rock breaker that's lost its bite due to restricted return oil flow.

The culprit? Back pressure from used oil returning to the tank the LONG WAY -- back through the main valve bank.
This not only robs the breaker of power but can also damage its seals if the operator accidentally supplies oil flow the wrong way.

Think of it as a VIP lane for used oil, ensuring a smooth and unrestricted path straight back to the tank.
This keeps pressure low and protects the breaker's seals.

But that's not all! The diverter valve also acts as a one-way gate, blocking any rogue oil that might try to flow back into the breaker the wrong way.

Stop wasting time and money on repairs. Install a 3-port diverter valve today and experience the difference!

Customizable Options: Enhance the functionality of the valve with the following options
handle operation,
air actuation,
detent system,
spring offset, or
roller cam with spring offset (available upon request).
