Motorhome Remote Controlled Hydraulic Stabiliser Levelling Valve 5 functions
Product Details
Brand: hydraulic.online
Weight: 20.00 kg
8-Button Radio Remote Control 80 lt/min Hydraulic Valve for 4 Stabiliser cylinders | with 5-Function Pneumatic Actuation.
Take command of your vehicle’s stability operations with this professional-grade ENGMATTEC remote control hydraulic kit. Designed for the Australian motorhome, transport, and drilling industries, this system integrates a high-flow 80 Lt/min monoblock valve with an advanced 915MHz radio remote system
This kit provides wireless control for four individual double-acting cylinders (8 functions), while the 5-spool valve body includes a dedicated spare manual spool
The 12 Channel Remote Receiver comes prewired: from the factory for easier wiring to the pneumatic solenoids.
System Components & Control Logic
The hydraulic valve features 5 levers (10 functions) with radio remote control covering 8 of those functions
- Buttons 1 & 2: Front Right Stabiliser (Up/Down)
- Buttons 3 & 4: Front Left Stabiliser (Up/Down)
- Buttons 5 & 6: Rear Right Stabiliser (Up/Down)
- Buttons 7 & 8: Rear Left Stabiliser (Up/Down)
- Manual Lever 5: Spare / Future Hydraulic Function (100% manual override on all spools)
- Looking for Stabilisers or a Levelling KIT Click Here
Technical Specifications
| Feature | Specification |
| Max Flow Rate |
80 Lt/min |
| Max Working Pressure |
250 Bar (3,600 PSI) |
| Spool Configuration |
5 Spools (4 Pneumatic/Solenoid Actuated + 1 Manual Spare) |
| Radio Frequency |
915MHz AU/NZ Certified (Class B Digital Device) |
| Remote Range |
Up to 100 Metres |
| Operating Voltage |
24V DC |
| Port Sizes | 1/2" BSP |
Engineering & Safety Features
- Precision Control: Double-acting cylinders allow for controlled raising and lowering; spools are spring-return to centre, meaning the cylinder stops instantly when the button is released
- Pneumatic Integration: Includes 24V pneumatic solenoids, air push-fit fittings, silencers, and a complete compressed air filter/regulator/lubricator assembly
- Robust Construction: Features a steel monoblock body with case-hardened steel spools and NBR (Buna-N®) O-rings for long-term durability in harsh Australian conditions
- Adjustable Relief: Built-in relief valve factory set at 175 bar (2,500 PSI) for system protection
Installation & Maintenance
This system is designed for a straightforward DIY installation with basic electrical and tool knowledge
Technician’s Advice
Always ensure your air supply is plumbed through the included filter-regulator-lubricator unit. Clean, lubricated air is critical for the longevity of the pneumatic actuators and solenoids.
When plumbing the hydraulic side, remember that you have a choice of two Pressure (P) and two Tank (T) ports for flexible mounting; however, only use one of each.
Use the manual levers to test your cylinder orientation before relying solely on the remote transmitter.
Industrial or Mobile Remote Controlled Hydraulic Valve for four separate functions with 4 remote control air actuators and 4 manual lever override (Plus 1 Spare Spool for future use).
Kit includes 5 spool valve with four (4) remote control air actuators and compressed air kit.
The Flow Control Valve is pressure rated to 250 bar (3,600 psi) and oil flows up to 80 Lt/Min.
Also Included is a new 8 button Radio Remote Control System.
The new remote control system: uses an Australian Designed Radio Remote control with a range of up to 150m. It has been tested and found to comply with the limits for a Class [B] digital device, in accordance to the Australian/New Zealand standard AS/NZS 4268.

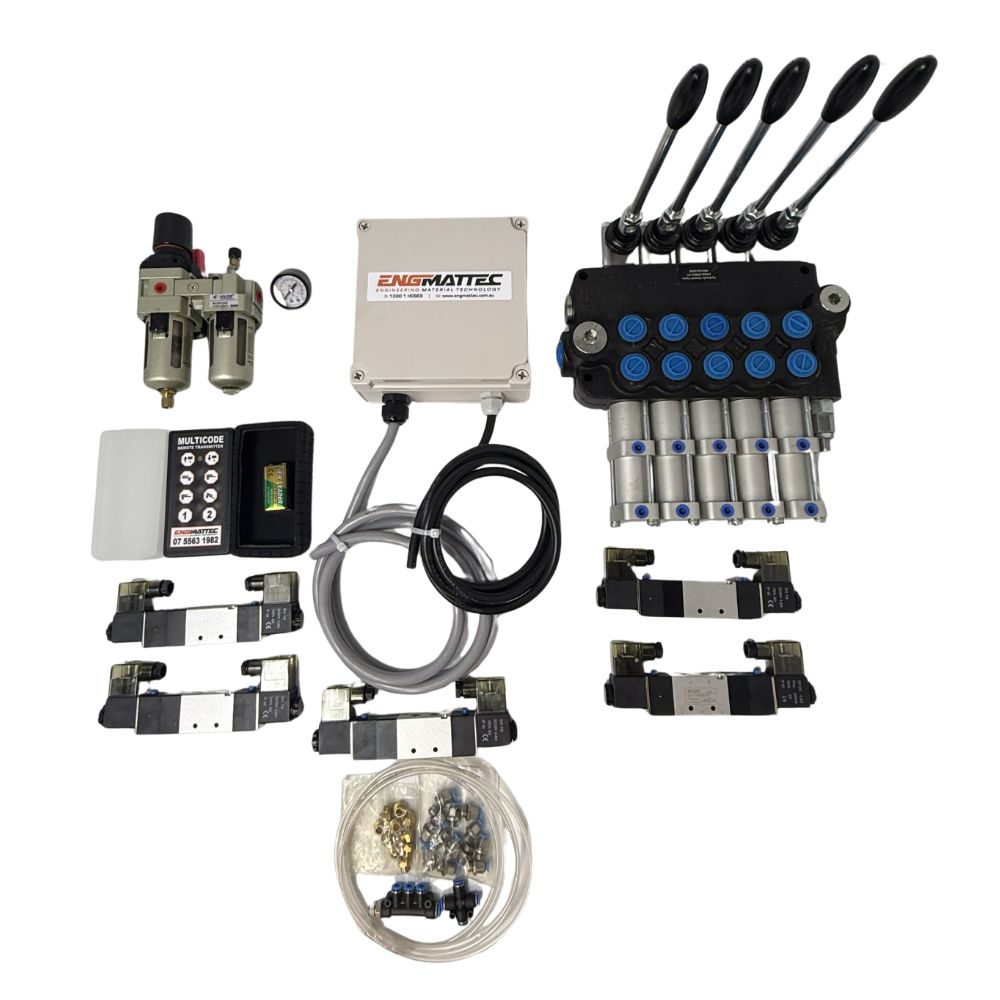

The remote control kit comes with the following components
- 8 button hand help radio remote transmitter
- a vehicle mounted receiver unit
- an compressed air filter regulator water separator and lubricator
- air push fit fittings and silencers,
- airline
- 24-volt pneumatic solenoids
- A fitting diagram
- Only basic tool & electrical knowledge is required for a DIY installation.
This remote control kit will improve the efficiency and speed as well as the safety of your Vehicle Stability Operations.
The Hydraulic Valve has 5 levers (10 Functions) with Radio Remote Control of 8 of the 10 functions,
- 1 & 2 Front Right Stabiliser Up and Down,
- 3 & 4 Front Left Stabiliser Up and Down
- 5 & 6 Rear Right Stabiliser Up and Down
- 7 & 8 Rear Left Stabiliser Up and Down
- 9 & 10 are spare
- All 10 functions have manual override levers.
The hand held 8 Button Radio Remote Transmitter has a range of up to 150 meters.
Looking for Stabilisers or a Levelling KIT Click Here
Both the vehicle mounted Receiver and hand held Transmitter are Au/NZ Certified.
Please watch this 2 minute video of us taking a standard 3 spool Hydraulic valve and fitting it with Pneumatic Actuators that will receive the remote signal from the remote control units.
Wired up and connected to 100 PSI of compressed the end result
Designed specifically for Motor Homes but can be modified to work on any Mobile of Stationary Hydraulic Equipment, including Drilling and Piling rigs, farming and excavation equipment. Backhoes or any application where you need to control 4 or 5 individual cylinders.
The remote unit simply needs power, 24 volt DC , & basic wiring to the valve solenoids (wiring diagram provided).
The hydraulic valve's pneumatic actuators and will require clean dry compressed air: from your truck's or vehicles air supply for the pneumatic solenoids and spool actuators. Solenoids come complete with push fit air fittings and silencers.
The 8 button remote comes with a transmitter and a receiver.
Levers are still attached for convenient use. This valve comes standard with 5 cylinder spools, which means when the lever/or button are released, the cylinder will stop in place.
These valves are regularly used in hydraulic circuits to divert the flow of high pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.
Specifications
- Construction = Monoblock
- Material of Construction = Steel
- No of Spools = 5
- No of air/ solenoid actuated spools = 4
- Air push fits = 4mm
- Soopl Material of Construction = Case Hardened Steel
- O-rings made of NBR (Buna-N®)
- Max Flow Rate = 80 liters/min (20 Gallons per Minute)
- Max Working Pressure = 250 Bar (3,600 PSI)
- Spool Types = Cylinder
- Spool Movement = Lever action, Spring Return to Center.
Plus remotely controlled Compressed air Actuators - Built in Relief Valve = Adjustable (factory set at 175 bar 2500 PSI)
Ports Sizes
- Pressure Port 1/2 BSP
- Cylinder Ports 1/2" BSPP ONO
- Tank Port 3/4 " BSPP
- Power beyond port (Not Applicable) on this unit .
- Operating temperature range: -20 °C to + 80°C
-
Dimensions = L x W x H = 350 x 300 x 130 mm (+ 300mm with levers installed in L or H)
-
Weight 15 KG
Need More Information?
Please call Australia
+61 07 5563 1982
or send us a an email at sales@mhfgc.com.au
Many types of adapters threads, hydraulic hose and field fit hose fittings available please see our other listings
Please note*
Installation ; As per the listed photos, there are a choice of two pressure ports "P" (only use one),
two "T" Tank return ports and
on some models there is also there is a "C" port. This "C" port is for the: Power Beyond function.
This allows another valve to run pressure from this C port downstream if necessary.
(must be a lower volume though).
A & B ports run to your cylinders or other functions.
