CHARLIE Pendant Control Station - 2 Button, E-Stop and Loomed Options, Made in Europe

Store/Power Packs and Hydraulic Power Units 12 & 24 VDC, 240 & 415 VAC, Petrol or Diesel/Power Pack Accessories - Oil Tanks, Pendant Controls and Spare Parts

Product Details

Weight: 0.35 kg

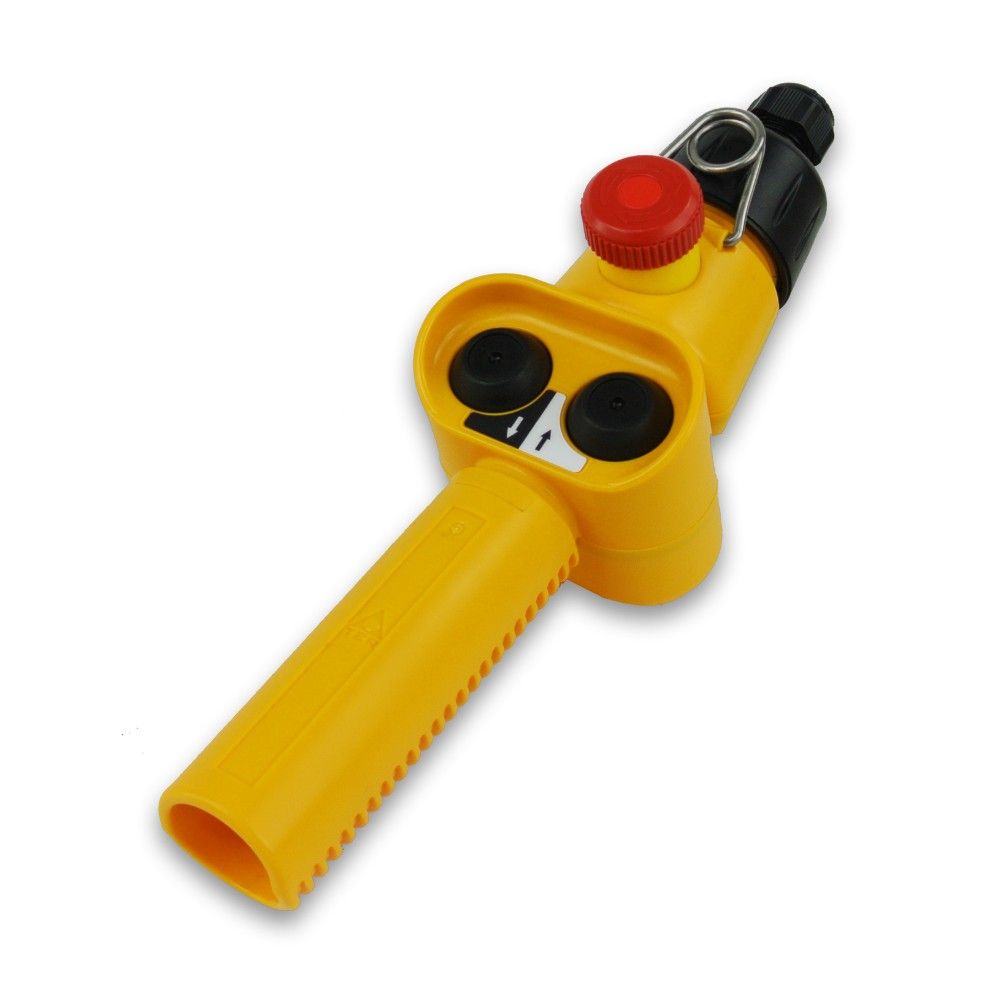

CHARLIE Pendant Control Station – 2 Button, E-Stop and Loomed Options, Made in Europe

The CHARLIE is a compact European-made 2-button pendant station for hydraulic power units, hoists and workshop machines. Buy it bare (fit your own control wiring – contacts rated to 250 V AC) or pre-loomed for 10–50 V DC power packs with a 3 metre cord and DIN 43650A coil plugs, wired and tested. IP65, double insulated, modular switch elements.

Ways to buy your station:

Off the shelf – all six configurations below.
Need more buttons? The 4 to 12 function ALPHA station uses the same switch system.
12/24 V DC truck pendants live on the KCB pendant listing.
Spare switch elements, lamp holders, key selectors and button labels are available – call us with the code off your station.

Pick your station

Buttons	Function	Wiring	Voltage	SKU
2	Momentary, no E-stop	Bare station, no loom	250 V AC rated contacts	CHARLIE
2 + E-Stop	Momentary + E-stop	Bare station, no loom	250 V AC rated contacts	CHARLIE-E
2	Single Acting	3 m loom, DIN 43650A plugs	10-50 V DC	CHARLIE-21-03
2 + E-Stop	Single Acting	3 m loom, DIN 43650A plugs	10-50 V DC	CHARLIE-21-03E
2	Double Acting	3 m loom, DIN 43650A plugs	10-50 V DC	CHARLIE-22-03
2 + E-Stop	Double Acting	3 m loom, DIN 43650A plugs	10-50 V DC	CHARLIE-22-03E

What is in the box

One pendant station. Loomed versions include the 3 m main cord, signal tails and DIN 43650A plugs, wired and tested.

Specifications

Parameter	Value
Origin	Made in Europe
IP rating	IP65
Contact rating	3 A signal / 6 A max, 250 V AC
Loomed versions	10-50 V DC, DIN 43650A form A plugs
Button action	Momentary, single speed

How to choose

Power pack with DIN plugs on the coils, 12–48 V DC? Take a loomed version – plug in and go.
Controlling contactors, a 240/415 V starter or a PLC input? Take a bare station and wire the contacts into the control circuit.
Anything a person can stand under gets the E-stop version. Cheap insurance.

Technicians Advice

The bare CHARLIE switches CONTROL current, not motor current – run it into a contactor coil or solenoid, never through the DC motor feed of a power pack (that is 100-plus amps and will weld the contacts shut first press). On the loomed DC versions the DIN plugs land straight on the valve coils and the station triggers the pack’s start solenoid – check your pack has a low-current trigger terminal before ordering; most Mocen-pattern DC units do. The E-stop is a latching break in the common: twist to release. If a customer reports a “dead station”, that latch is the first thing to check.
