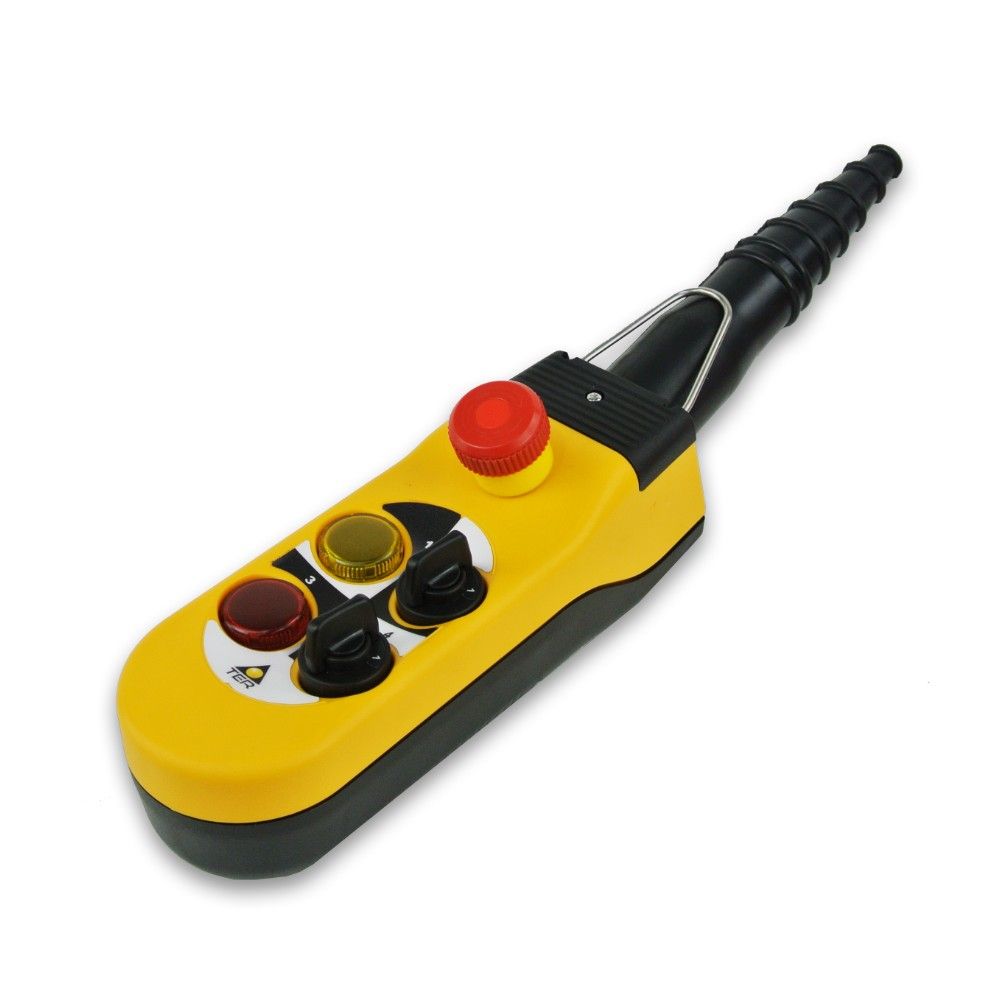

ALPHA Pendant Control Station - 4 to 12 Button, Made in Europe

Store/Power Packs and Hydraulic Power Units 12 & 24 VDC, 240 & 415 VAC, Petrol or Diesel/Power Pack Accessories - Oil Tanks, Pendant Controls and Spare Parts

SKU ALPHA-4

AU$421.30

On Sale

was ~~AU$532.00~~ Save 21%

Pendant Station Model

Please choose

Genuine power-pack spares · 4 to 12 Button · Made in Europe

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

ALPHA Pendant Control Station - 4 to 12 Button, Made in Europe

Store/Power Packs and Hydraulic Power Units 12 & 24 VDC, 240 & 415 VAC, Petrol or Diesel/Power Pack Accessories - Oil Tanks, Pendant Controls and Spare Parts

Product Details

Weight: 0.60 kg

ALPHA Pendant Control Station – 4 to 12 Button, Made in Europe

The ALPHA is the multi-function big brother of the CHARLIE – the same European-made IP65 modular switch system scaled to 4, 6, 8 or 12 single-speed momentary functions. The pick for multi-circuit hydraulic power units, sectional valve banks with solenoid operation, factory machines and test rigs. Supplied as a bare station: wire the contacts (rated to 250 V AC) into your control circuit or coil wiring.

Ways to buy your station:

Off the shelf – 4, 6, 8 and 12 button versions below.
Only need two functions? The CHARLIE station is the compact version, with pre-loomed DC options.
12/24 V DC truck pendants live on the KCB pendant listing.
Two-speed elements, E-stops, key selectors, pilot lights and label sets are available for ALPHA bodies – call us to spec a custom station.

Pick your station

Buttons	Action	Wiring	SKU
4	Momentary single speed	Bare station, wire to suit	ALPHA-4
6	Momentary single speed	Bare station, wire to suit	ALPHA-6
8	Momentary single speed	Bare station, wire to suit	ALPHA-8
12	Momentary single speed	Bare station, wire to suit	ALPHA-12

What is in the box

One ALPHA pendant station body with the listed number of momentary push buttons fitted. Wiring loom not included.

Specifications

Parameter	Value
Origin	Made in Europe
IP rating	IP65
Contact rating	3 A signal / 6 A max, 250 V AC
Button action	Momentary, single speed
Custom elements	Two-speed, E-stop, key selector, pilot lights available

How to choose

One button per momentary function – count the solenoids you need to drive, not the cylinders.
Driving a 6-bank solenoid valve both ways needs 12 functions – that is the ALPHA-12.
Need latching, two-speed or an E-stop in the station? Call us – the elements are modular and we build to order.

Technicians Advice

Like all pendant stations, the ALPHA switches control current only – drive solenoid coils or contactor coils, never motor feeds. Plan your cable before you order: a 12-function station wants a 13-plus core flex, and on long runs the voltage drop on 12 volt coils adds up fast – run 24 volt control or put the relays close to the valve and switch them remotely. Label the cores as you terminate them; the factory button labels are interchangeable, so match the label sheet to your circuit and save the next tech a day of buzzing out wires.

Official Datasheets

📄 ALPHA Pendant Station (PDF)

Complete your setup

CHARLIE 2 Button Station KCB DC Pendants Valve Solenoids

Buying in bulk or fitting out a fleet? Call us for trade pricing.

Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
