Mini Armoured Quick / Tilt Hitch Hydraulic Hoses 6000 psi
Store/Hoses For Hydraulics 1 Wire, 2 Wire, 3 Wire, 4 Wire, and 6 Wire/Hydraulic Hose Assemblies For You From 1 to 1000 Pieces
Product Details
Brand: Engmattec
Weight: 5.00 kg

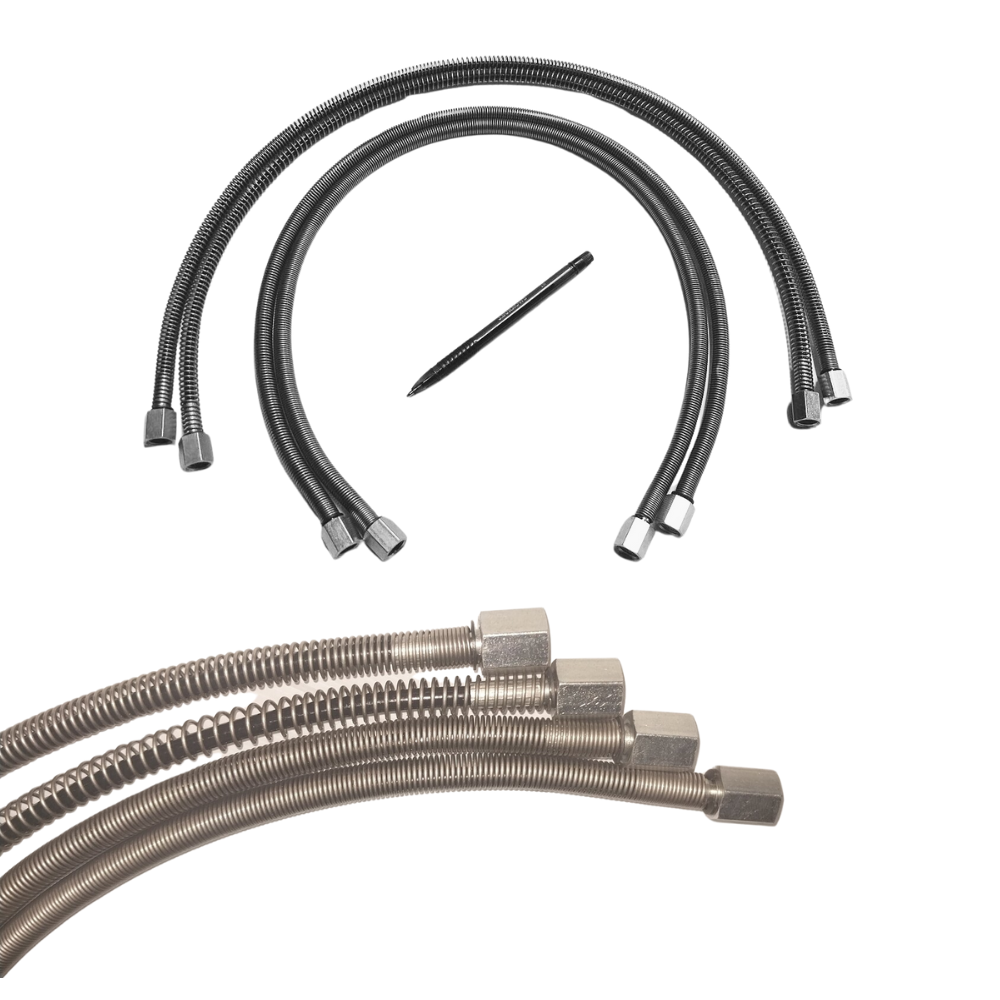

Small Compact and Tough and flexible Armoured Quick / Tilt Hitch Hydraulic Hoses pressures to 6,000 psi
These Mini armoured Quick / Tilt hitch hoses are made to handle the tough and aggressive environments found at the digging end of the excavator where Quick Hitches or Tilt Hitches are located.
Designed to suit 1.5 ton to 8 ton excavators fitted with a quick hitch or tilt hitch.
The hose assembly is made from a compact synthetic 9,000 psi (630 bar) ultra High Pressure Hose that is strong and has a very tight bend radius. It is then armoured with a tight coil of stainless steel spring steel.
The armoured coil of spring steel provides the internal hose with extra protection from abrasion, knocks and falling debris and rocks as well as mild crush protection to keep you working longer.
Options in length range from 0.1m to 1m & 1.1m to 2m, available with 7/16" JIC Female Hoses ends or 1/4" BSP Female.
Longer lengths are available on request. email us at sales@mhfgc.com.au or call us. 07 5563 1982.
The stainless steel spring cover gives great abrasion protection.
| Outside Diameter | 9.6 mm (3/8") |
| Armoured Cover Material | Stainless Spring Steel |
| Bore Inside Diameter | 2mm |
| Maximum Working Pressure | 630 BAR |
| Minimum Burst Pressure | 1890 BAR |
| Minimum Bend Radius | 28mm |
| Working Temperature | -40c° to +100c° |
| Core Material | Thermoplastic Polyester |
| Braid Material | Aramidic Fiber |
| Cover Material | Anti-abrasion Polyurethane |
| BSPT/BSPP THREAD ID CHART | |||||||||
| BSPT / BSPP Size & Pitch | DASH SIZE | BSPT Male Thread OD | BSPP Male Thread OD | BSPT Female Thread ID | BSPP Female Thread ID | ||||
| inch – TPI | mm | inch | mm | inch | mm | inch | mm | inch | |
| 1/8 – 28 | -02 | 9,5 | 0.37 | 9,6 | 0.38 | 8,4 | 0.33 | 8,6 | 0.34 |
| 1/4 – 19 | -04 | 12,8 | 0.50 | 13,0 | 0.51 | 11,2 | 0.44 | 11,9 | 0.47 |
| 3/8 – 19 | -06 | 16,3 | 0.64 | 16,5 | 0.65 | 14,7 | 0.59 | 15,2 | 0.60 |
| 1/2 – 14 | -08 | 20,4 | 0.80 | 20,8 | 0.82 | 18,3 | 0.72 | 19,1 | 0.75 |
| 5/8 – 14 | -10 | 22,5 | 0.89 | 22,8 | 0.90 | 20,6 | 0.81 | 20,8 | 0.82 |
| 3/4 – 14 | -12 | 25,9 | 1.02 | 26,3 | 1.04 | 23,9 | 0.94 | 24,6 | 0.97 |
| 1 – 11 | -16 | 32,6 | 1.28 | 33,1 | 1.30 | 29,7 | 1.17 | 30,7 | 1.21 |
| 1.1/4 – 11 | -20 | 41,1 | 1.62 | 41,8 | 1.64 | 38,6 | 1.52 | 39,4 | 1.55 |
| 1.1/2 – 11 | -24 | 47,0 | 1.85 | 47,7 | 1.88 | 44,5 | 1.75 | 45,5 | 1.79 |
| 2 -11 | -32 | 58,6 | 2.31 | 59,5 | 2.34 | 56,4 | 2.22 | 57,4 | 2.26 |
| 2.1/2 – 11 | -40 | 74,1 | 2.92 | 75,1 | 2.95 | 71,9 | 2.83 | 72,6 | 2.86 |
| 3 – 11 | -48 | 86,6 | 3.41 | 87,9 | 3.46 | 84,6 | 3.33 | 85,4 | 3.36 |
| JIC/UNO THREAD ID CHART | ||||||
| Male Thread OD & Pitch | DASH SIZE | Male Thread OD | Female Thread OD | TUBE SIZE | ||
| inch – TPI | mm | inch | mm | inch | inch | |
| 5/16 – 24 UNF | -05 | 7,9 | 0.31 | 6,9 | 0.27 | 1/8 |
| 3/8 – 24 UNF | -06 | 9,5 | 0.38 | 8,5 | 0.33 | 3/16 |
| 7/16 – 20 UNF | -07 | 11,1 | 0.44 | 9,9 | 0.39 | 1/4 |
| 1/2 – 20 UNF | -08 | 12,7 | 0.50 | 11,4 | 0.45 | 5/16 |
| 9/16 – 18 UNF | -09 | 14,3 | 0.56 | 13,0 | 0.51 | 3/8 |
| 3/4 – 16 UNF | -12 | 19,1 | 0.75 | 17,5 | 0.69 | 1/2 |
| 7/8 – 14 UNF | -14 | 22,2 | 0.88 | 20,3 | 0.80 | 5/8 |
| 1.1/16 – 12 UNF | -17 | 27,0 | 1.06 | 24,9 | 0.98 | 3/4 |
| 1.3/16 – 12 UNF | -19 | 30,2 | 1.19 | 28,2 | 1.11 | 7/8 |
| 1.5/16 – 12 UNF | -21 | 33,3 | 1.31 | 31,2 | 1.23 | 1 |
| 1.5/8 – 12 UNF | -26 | 41,3 | 1.63 | 39,1 | 1.54 | 1.1/4 |
| 1.7/8 – 12 UNF | -30 | 47,6 | 1.88 | 45,5 | 1.79 | 1.1/2 |
| 2.1/2 – 12 UNF | -40 | 63,5 | 2.50 | 61,5 | 2.42 | 2 |
If you would like a specific length made & crimped, please buy the closest size(must be longer than you need) & message us with the overall length required.
Always measure from the very end of the fittings on both ends ( OA )As per photos. Please see thread charts if unsure of thread. Best to measure the Male thread OD
Need another hose size, field fit reusable fittings couplers and or adaptors for your application?
Just call us on 0755 631 982, or 1300 1 HOSES
our email Sales@mhfgc.com.au
Emails will be answered within normal business hours (ie: 8.30am - 5.00pm M-F)
