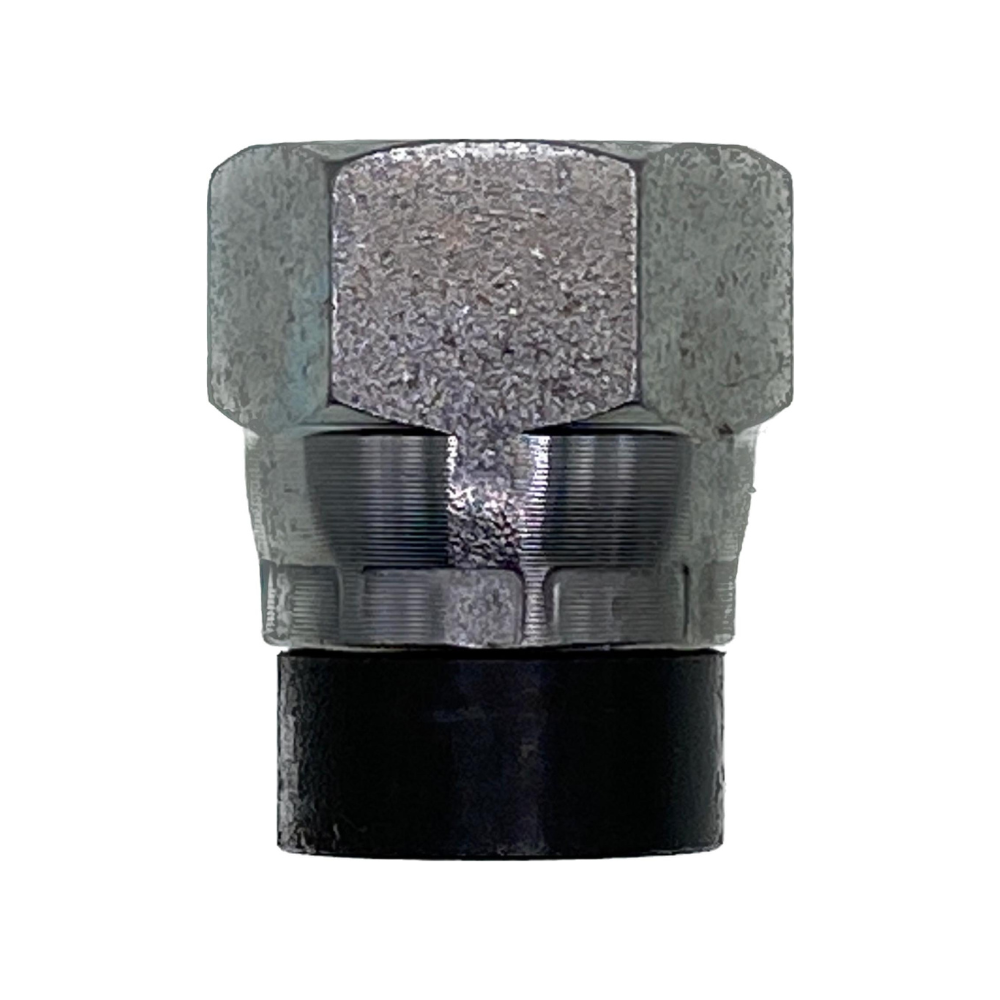

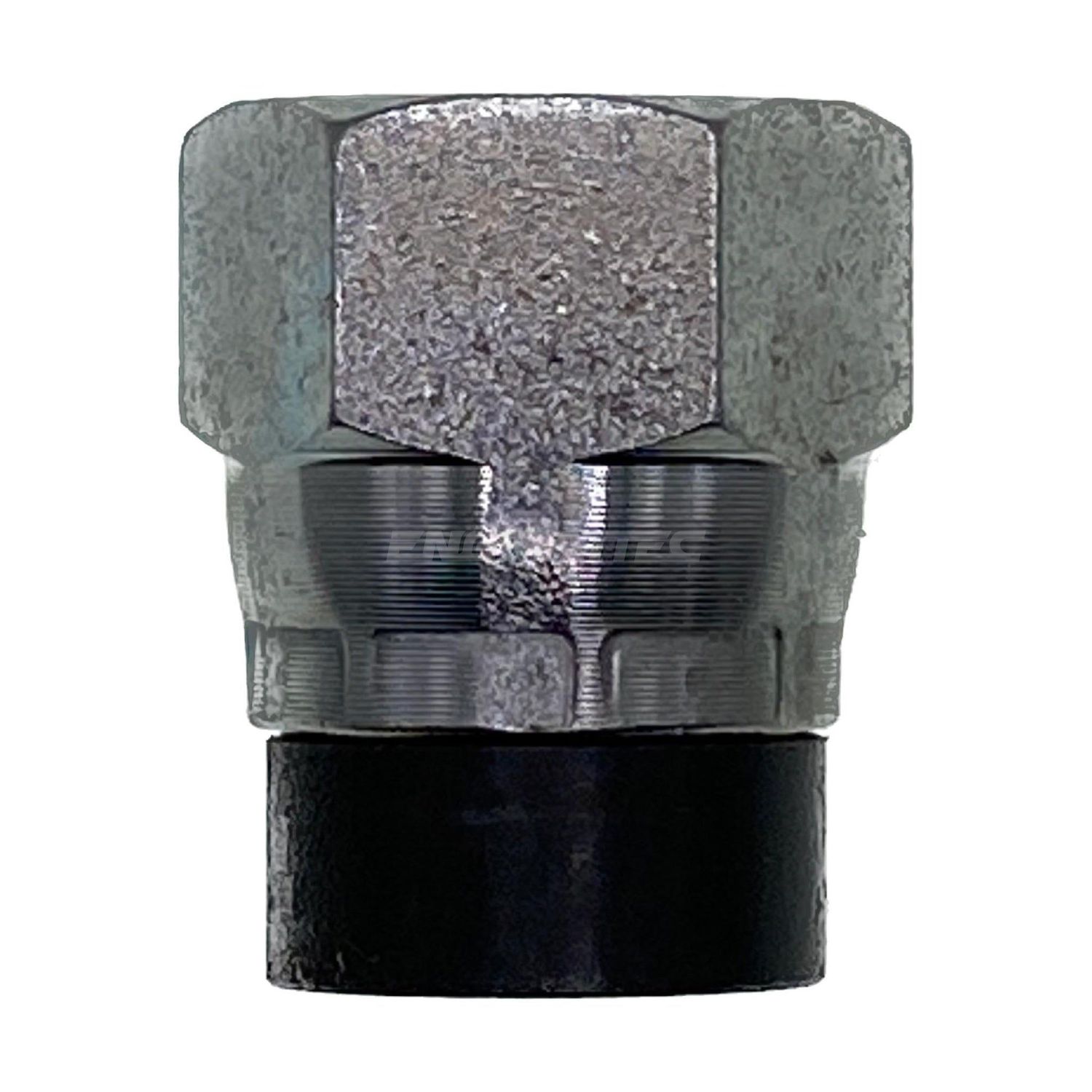

JIC 37° Swivel Female x Tubeweld Female Straight Weld-On Adaptor

A JIC swivel female one end and a plain weld socket the other. Welds to tube and takes a JIC hose without winding it up.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.
• Tubeweld Female (weld-on socket) – plain-bore socket sized to a tube OD, joined by welding rather than a thread. It has no seal of its own – the weld is the joint, so the tube must be clean, square and correctly prepared.

How to Choose

• Sized by tube outside diameter, not by thread. Measure the tube with vernier calipers rather than going by what the old fitting says.
• The swivel female seals on its 37° cone and turns. Nothing on the thread.
• Shield the nut and cone from spatter and heat.

Technicians Advice

Back the swivel nut right off and cover the cone before you weld. Check it still spins freely after it cools, because a nut that has been heat-tightened onto the body is no longer a swivel.

Where You’ll Find It

• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.
• Tubeweld Female (weld-on socket) – fabricated tube runs on machinery builds, tank and reservoir plumbing, and repairs where a threaded connection is not wanted or there is no room for one.

Cross-Reference

• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.
• Tubeweld Female (weld-on socket) – Weld-on socket, also called a weld nipple, weld boss or tubeweld end. Sized by tube outside diameter, not by thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	Material	Finish
JIF-TWF-0704	7/16" JIC	1/4" Tube	14.3mm	Mild steel	Plated finish
JIF-TWF-0904	9/16" JIC	1/4" Tube	17.5mm	Mild steel	Plated finish
JIF-TWF-0906	9/16" JIC	3/8" Tube	17.5mm	Mild steel	Plated finish
JIF-TWF-1206	3/4" JIC	3/8" Tube	22.2mm	Mild steel	Plated finish
JIF-TWF-1208	3/4" JIC	1/2" Tube	22.2mm	Mild steel	Plated finish
JIF-TWF-1210	3/4" JIC	5/8" Tube	22.2mm	Mild steel	Plated finish
JIF-TWF-1408	7/8" JIC	1/2" Tube	25.4mm	Mild steel	Plated finish
JIF-TWF-1410	7/8" JIC	5/8" Tube	25.4mm	Mild steel	Plated finish
JIF-TWF-1712	1.1/16" JIC	3/4" Tube	32.0mm	Mild steel	Plated finish
JIF-TWF-1716	1.1/16" JIC	1" Tube	32.0mm	Mild steel	Plated finish
JIF-TWF-2116	1.5/16" JIC	1" Tube	38.0mm	Mild steel	Plated finish
JIF-TWF-2120	1.5/16" JIC	1.1/4" Tube	38.0mm	Mild steel	Plated finish
JIF-TWF-2620	1.5/8" JIC	1.1/4" Tube	50.0mm	Mild steel	Plated finish
JIF-TWF-3024	1.7/8" JIC	1.1/2" Tube	55.0mm	Mild steel	Plated finish

Key: H centre to face. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
