The ENGMATTEC 4FFN-BOBCAT-F Cartridge type Female Hydraulic Flat Face Coupler screws into the 4BD4FH manifold mounted to the boom on newer Bobcat Equipment, Replaces Bobcat Part Number 7246802.

These Flat Face couplers are used to connect and supply high-pressure oil to a variety of hydraulically driven implements and attachments.

If you or a Log or Rock bumps and damages one of these manifold couplers, your day is over!

Get Free Pair of Dust Caps for your other Attachment couplers when not in use.

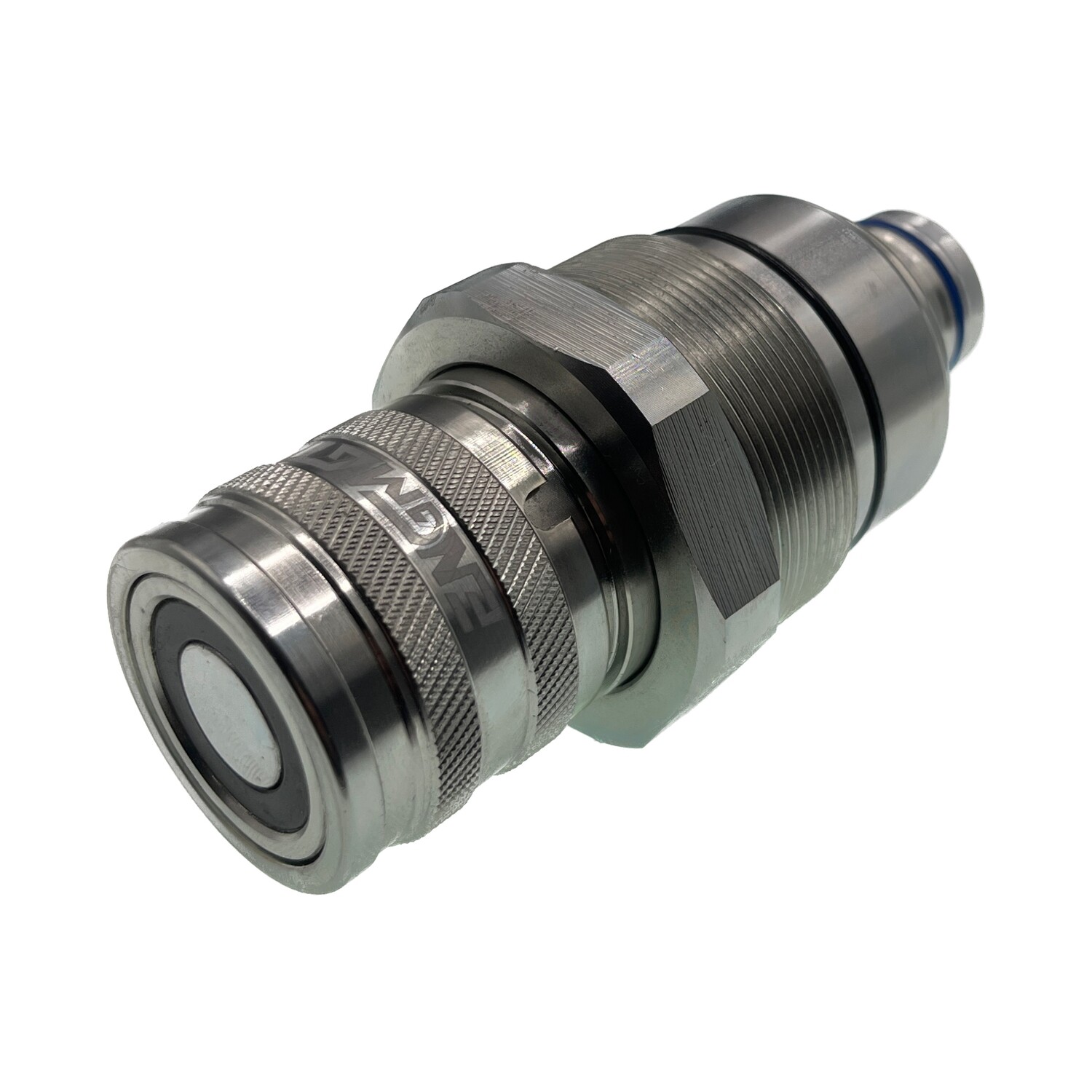

The ENGMATTEC 4FFN-BOBCAT-F is a special "cartridge type" Female Flat Face Coupler that "screws" into the manifold mounted to the boom on the newer Bobcat machinery.
They have an external Metric thread measuring 48mm in diameter and a thread pitch of 1.5 mm.
(please see image below).

(please see below for other compatible Bobcat models)

Fully interchangeable and connectable with all other 1/2 body Flat Face couplers manufactured to ISO 16028.

This range of couplers was designed to allow for a fast tools free “dry break” changeover of hydraulic attachments such as Buckets, Augers, Trenchers, Grapples, Brooms, Slashers, Sweepers, and even Snow Blowers.

If you have a Bobcat Skid Steer Loader, Track Loader, Compact loader or Excavator, then chances are your machine is fitted with these couplers and some day they will require replacement.

Current list prices from Bobcat Australia as of Jan 2024
$230 for the Male and $475 for the Female (if they have any in stock close to your location)

Save your back and prevent blisters get yourself a set of spares because if you knock and damage one of these then you and your machine are out of action (unless you like to using a spade or shovel)

Fits following Bobcat® models >

FIts Bobcat® Skid Steer Loader Model >

753 763 773 863 864 883
A220 A300 A770
S130 S150 S160 S175 S185 S205 S250
S300 S450 S510 S530 S550 S570 S590
S595 S630 S650 S740 S750 S770 S850

Fits Bobcat® Track Loader Model >

T140 T180 T190 T200 T250 T300 T320
T450 T550 T590 T595 T630 T650
T740 T750 T770 T870

Fits Bobcat® Excavator Model >

E32 E32i E34 E35 E35i E42 E45 E50 E55

Fits Bobcat® Telescopic Handler Model >

TL26.60 TL30.60 TL30.70 TL34.65HF TL35.70
TL358 TL360 TL38.70HF TL470 TL470HF

Fits Bobcat® Versihandler Models >

V519 V723

Fits Bobcat® Work Machine Models >

5600 5610

Specifications.

DNP PLT4, Stucchi FIRG/A Series, Faster 2FFI , Hansen QA, Ryco R110-06/08, Safeway FF49, Aeroquip FD89/FD49
