Hydraulic High-Pressure Side Filter Assembly
MPfiltri Pressure side filter housing 1-1/4" bspp ports 300Lpm

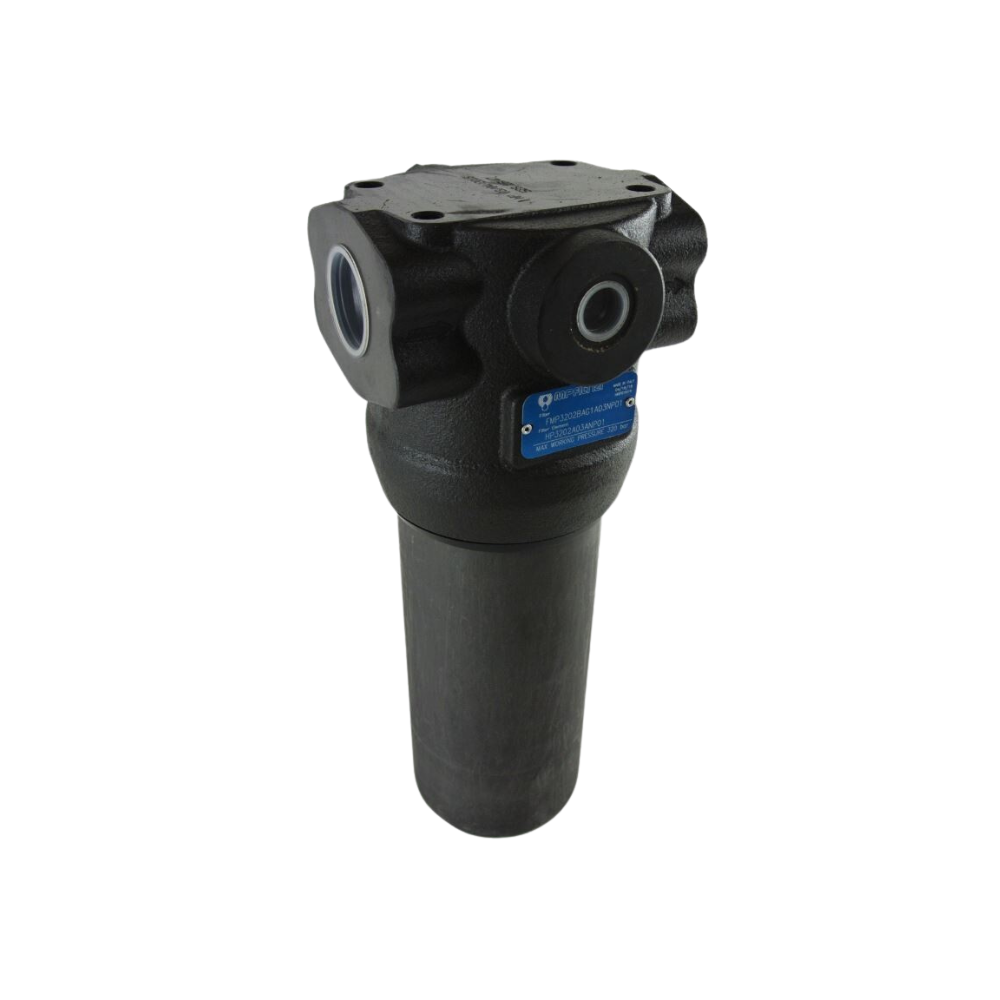

These are Italian-made pressure-side hydraulic filter housing capable of withstanding up to 320 Bar / 5000 Psi. They have a bypass valve in case of a full clog (6 bar). These come complete with filter elements of your choice. See drop box for flow rates. The higher flow elements are a longer length to allow more flow. Please refer to the photos for the dimensions of the filter assembly.
We also can supply both a visual,$220, or an electrical indicator, $240 to show when the filter needs changing. Replacement filters are widely available & we have stock continuously of most sizes. These range from $350 to $550 each depending on size/um. Contact us from a photo in the listing.
These come in four-micron sizes, & also longer filters for more flow (see drop box next to the price)
Please note, these assemblies come complete with a 10-micron filter.
Please see our other listing for a choice of OTHER flow pressure filters.
1-1/4" Bspp ports
320 Bar max pressure
Filter body (Materials) • Head: Cast iron (chemical heat treatment)
Housing: Steel (chemical heat treatment)
Bypass valve: Steel Pressure 6 bar
Working pressure: 320 bar (32 MPa)
Burst pressure: 640 bar (64 MPa)
Pulsed pressure fatigue test 1,000,000 cycles with variable pressure from 0 to 320 bar (32 MPa)Temperature
From -25°C to +110°C Bypass valve
Opening pressure 6 bar ±10%
Other opening pressures on request.
