Name: Two Piece Hydraulic ORFS Hose Fittings Female 90° Swept
Brand: Hydraulic.Online
SKU: HTB-ORF-90S
Price: 11.4 AUD
Availability: InStock

Hydraulic Hose fitting ORFS Female Swept Bend 90° Two Piece Design

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/Two piece Crimp-on Hosetails in Straight, 45° & 90°

Product Details

Brand: Hydraulic.Online

Weight: 0.10 kg

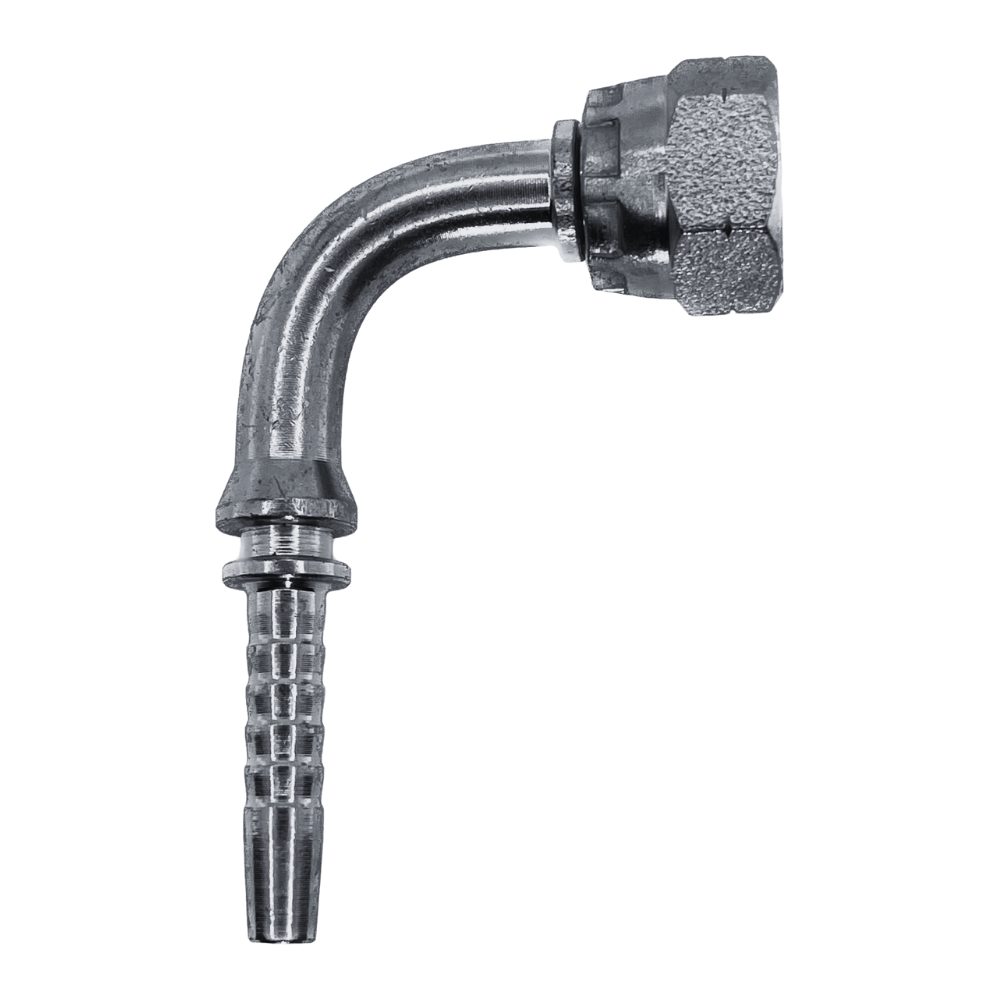

Two piece Hydraulic Hose fitting ORFS Female with Swept Bend 90° Elbow

Please make sure you order your ONE WIRE or TWO WIRE Ferrules/Shells by clicking on the links!

These two piece crimp on ORFS hose tails have been tried & tested in our three service trucks for over 4 years with great success. These are well made hydraulic items at a fantastic price.

These hose tails come complete with a one or two wire ferrule:. You will need a swaging machine to install.

We strongly advise purchasing an O-ring for each fitting.

We also have a BSP, JIC, Metric Light and Heavy two piece hose fitting listings.
JIC & BSP are the most commonly used fittings in Australia followed by ORFS
Metric Light and Heavy hydraulic hose fittings: are becoming far more widely used in Australia Now.

Click Here to view our full range of two piece hydraulic hose fittings.

Click Here to View our full range of One Piece Hydraulic Hose Fittings

However there are other, BSPP BSPT, ORFS, and Metric etc. If you are unsure, please measure the outside of the male thread & message us the dimension.

It is recommended you use calipers or verniers to achieve a precise measurement.

By default these hosetails come together with a two wire ferrule. Please check below for dimensions.

Our Part Numbers are Deciphered as shown below:

HTB-ORF-90S-0409 ; HOSE 1/4 x 90 swept Bend elbow to 9/16" ORFS Female
HTB-ORF-90S-0411 ; HOSE 1/4 x 90 swept Bend elbow to 11/16" ORFS Female
HTB-ORF-90S-0611 ; HOSE 3/8" x 90 swept Bend elbow to 11/16" ORFS Female
HTB-ORF-90S-0613 ; HOSE 3/8" x 90 swept Bend elbow to 13/16" ORFS Female
HTB-ORF-90S-0813 ; HOSE 1/2" x 90 swept Bend elbow to 13/16" ORFS Female
HTB-ORF-90S-0816 ; HOSE 1/2" x 90 swept Bend elbow to 1" ORFS Female
HTB-ORF-90S-1016 ; HOSE 5/8" x 90 swept Bend elbow to 1" ORFS Female
HTB-ORF-90S-1219 ; HOSE 3/4" x 90 swept Bend elbow to 1-3/16" ORFS Female
HTB-ORF-90S-1623 ; HOSE 1" x 90 swept Bend elbow to 1-7/16" ORFS Female

ENGMATTEC two wire hydraulic hoses are fully compatible, interchangeable or a direct replacement for many popular and more expensive hydraulic hose brands and types. See below for more details.

Buy it now online

http://www.hydraulic.online/store/100R2-Two-Wire-S...

ENGMATTEC is a Non-Skive Hose which means the outer cover does not need to be removed before pressing or screwing on the appropriate Hydraulic Hose Fittings.

Most People Purchase and then Re-order the following four most common ENGMATTEC sizes of Two (2) Wire braided hydraulic hose and these 4 sizes are as follows.

Crimp dimensions for our two wire two piece fittings is as follows

100R2AT 1/4" DN6, = 19 mm
100R2AT 3/8" DN10, = 21.9 mm
100R2AT 1/2" DN12, = 24.6 mm
100R2AT 5/8" DN16, = 28.7 mm
100R2AT 3/4" DN19. = 32 mm
100R2AT 1" DN25. = 39.6 mm

Please send us a message for any questions you may have.

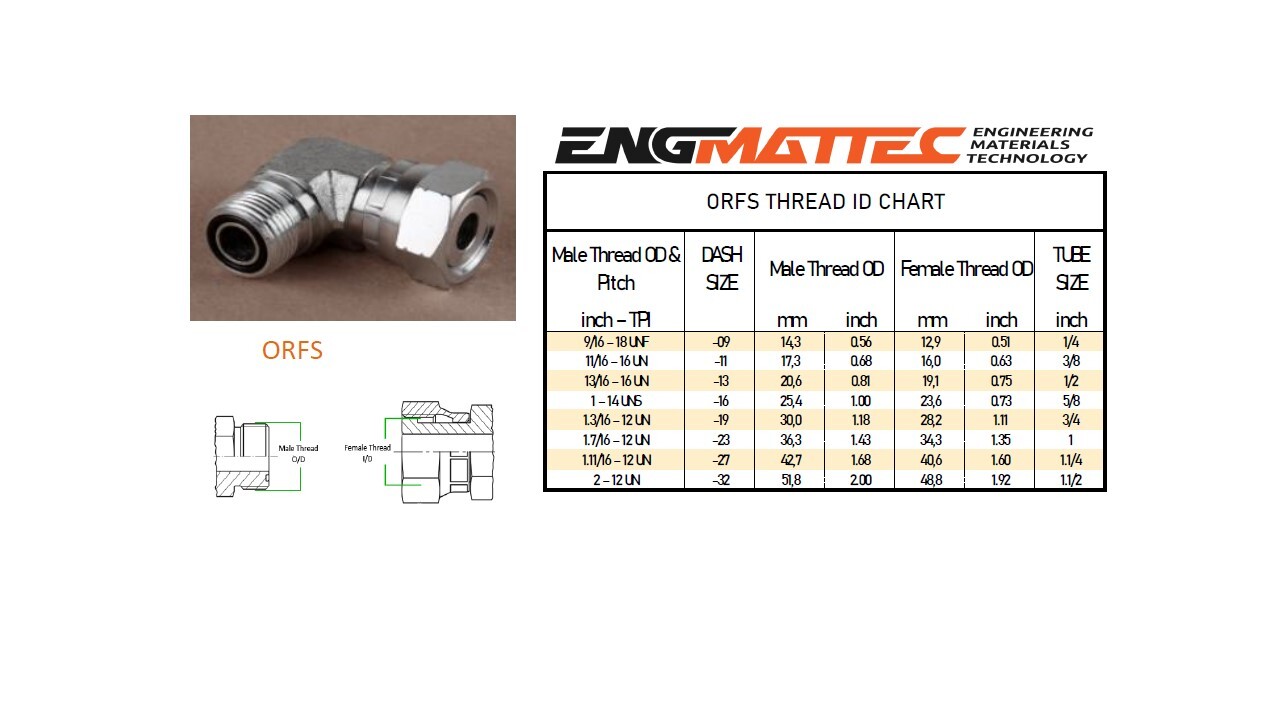

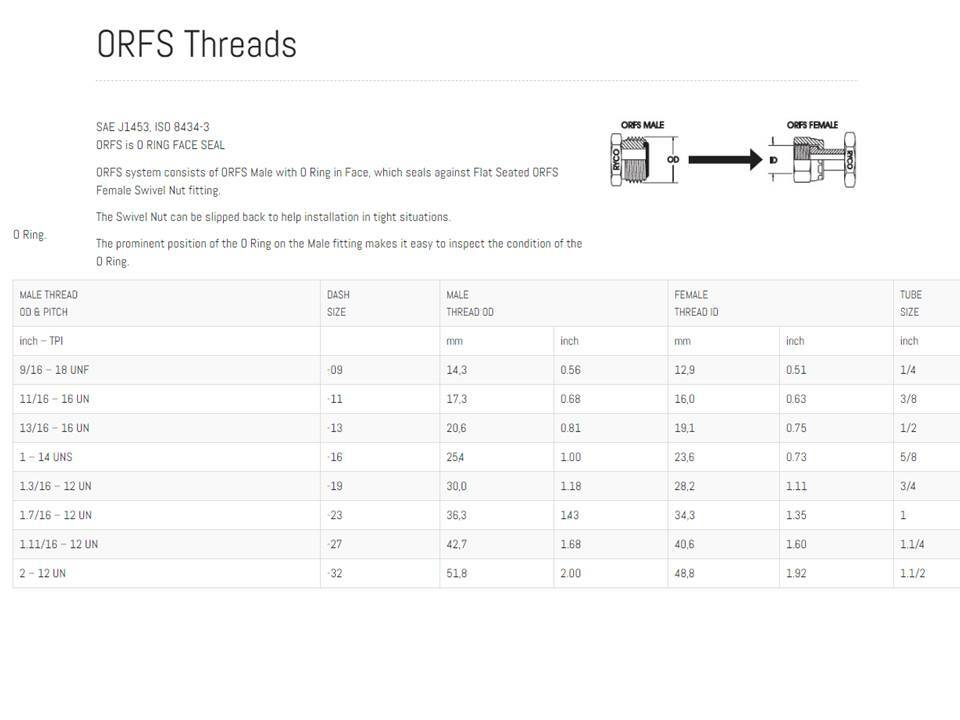

For Thread ID Chart please send us a message and we will send to you

Tax invoices are supplied with every purchase

Emails will be answered within normal business hours (ie: 8.30am - 5.00pm M-F)

sales@mhfgc.com.au

Australia +61 7 5563 1982

It is our desire to always have every listed item actively in stock. Occasionally (but very seldom) due to high demand, short supply or human error we may be momentarily out of stock on an item.

If this happens you will be notified and given the option to either cancel for a full refund or wait for the part to come in (typically 3-14 days)
