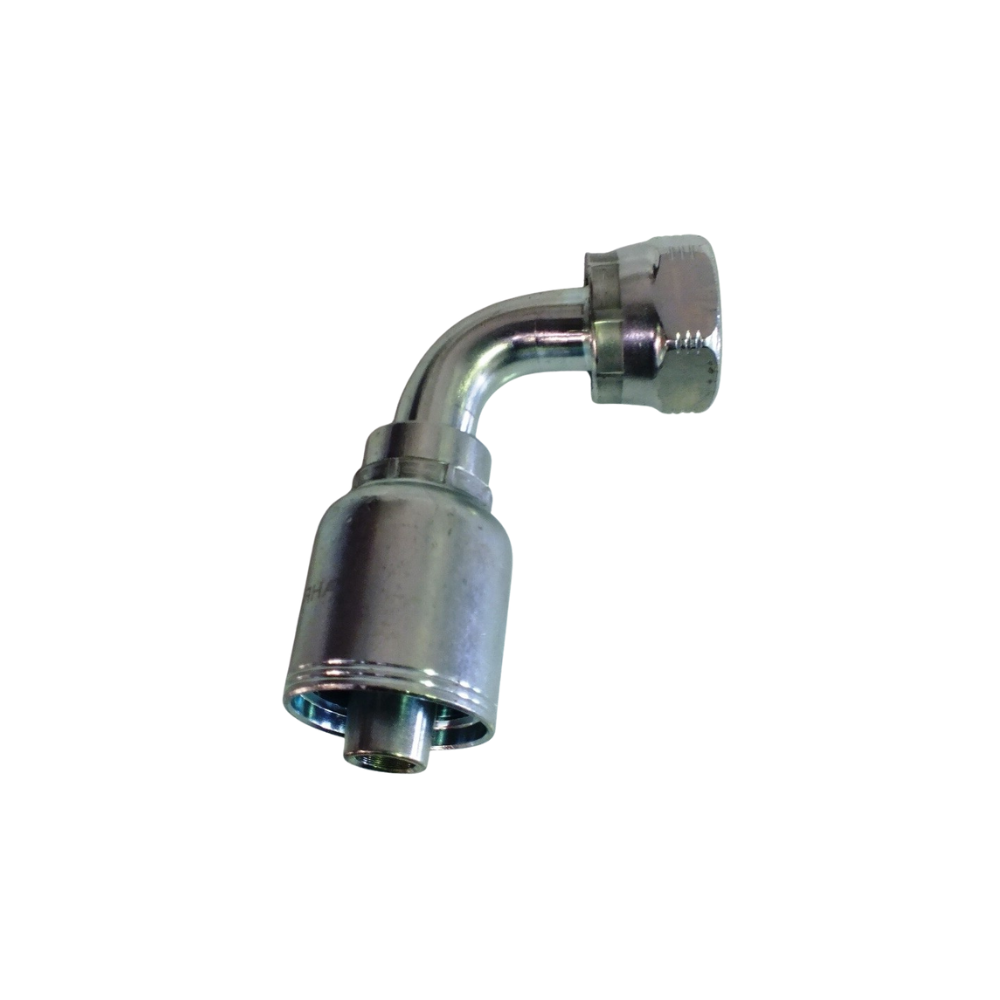

Hose Tail One Piece JIC Female 90° Swept
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Medium Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°
Product Details
Brand: Hosemart
Weight: 0.20 kg
JIC 90° CRIMP ON HOSETAILS
These are a precision made, very robust Hosetail. Please check our thread Identification chart below. It is recommended you use calipers or verniers to acheive a precise measurement.
We also have a BSP listing. JIC & BSP are the most commonly used fittings in Australia. However there are other, JIS, SAE, Metric etc etc. If you are unsure, please measure the outside of the male thread & message us the dimension.
They have been designed to be crimped on to either 100R-1 or 100R-2 1/4" Wire Braided Hydraulic hose
(1 wire or 2 wire)
If buying various sizes Please ask for a combined freight invoice.
| JIC/UNO THREAD ID CHART | ||||||
| Male Thread OD & Pitch | DASH SIZE | Male Thread OD | Female Thread ID | TUBE SIZE | ||
| inch – TPI | mm | inch | mm | inch | inch | |
| 5/16 – 24 UNF | -05 | 7,9 | 0.31 | 6,9 | 0.27 | 1/8 |
| 3/8 – 24 UNF | -06 | 9,5 | 0.38 | 8,5 | 0.33 | 3/16 |
| 7/16 – 20 UNF | -07 | 11,1 | 0.44 | 9,9 | 0.39 | 1/4 |
| 1/2 – 20 UNF | -08 | 12,7 | 0.50 | 11,4 | 0.45 | 5/16 |
| 9/16 – 18 UNF | -09 | 14,3 | 0.56 | 13,0 | 0.51 | 3/8 |
| 3/4 – 16 UNF | -12 | 19,1 | 0.75 | 17,5 | 0.69 | 1/2 |
| 7/8 – 14 UNF | -14 | 22,2 | 0.88 | 20,3 | 0.80 | 5/8 |
| 1.1/16 – 12 UNF | -17 | 27,0 | 1.06 | 24,9 | 0.98 | 3/4 |
| 1.3/16 – 12 UNF | -19 | 30,2 | 1.19 | 28,2 | 1.11 | 7/8 |
| 1.5/16 – 12 UNF | -21 | 33,3 | 1.31 | 31,2 | 1.23 | 1 |
| 1.5/8 – 12 UNF | -26 | 41,3 | 1.63 | 39,1 | 1.54 | 1.1/4 |
| 1.7/8 – 12 UNF | -30 | 47,6 | 1.88 | 45,5 | 1.79 | 1.1/2 |
| 2.1/2 – 12 UNF | -40 | 63,5 | 2.50 | 61,5 | 2.42 | 2 |
