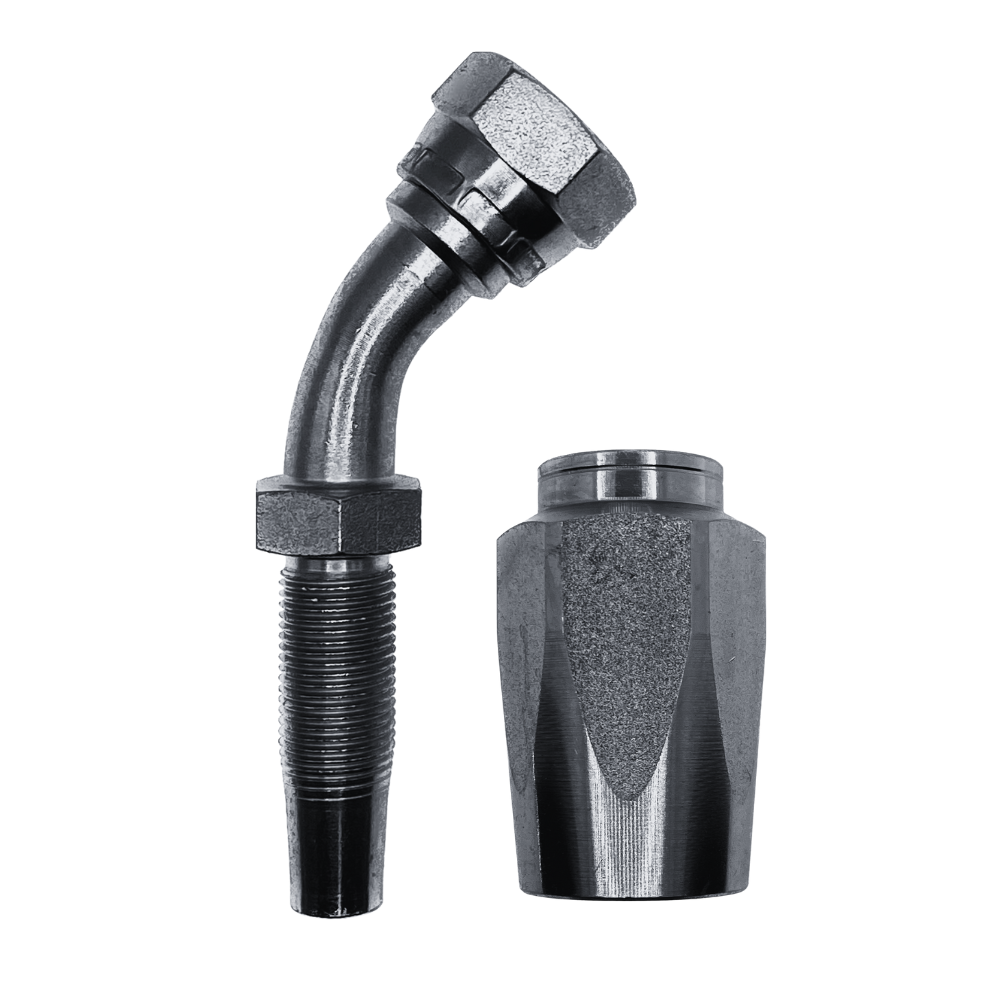

Hose Tail Reusable JIC Female 45° Swept - With ONE Wire Ferrule

Name: Reusable Hydraulic Hose Fitting One Wire JIC Female 45° elbow
Brand: hydraulic.online
SKU: HTR-JIF-45S-R1
Price: 10.6 AUD
Availability: InStock

Store/Reusable Fittings for Hydraulic Hose Straight, 90° & 45° Elbow Field Fit/JIC Female, Male, Straight, 90° & 45° Field Fit Reusables

SKU HTR-JIF-45S-R1

AU$10.60

Use Coupon EOFY26

was ~~AU$20.10~~ Save 47%

Size

Please choose

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

Hose Tail Reusable JIC Female 45° Swept - With ONE Wire Ferrule

Store/Reusable Fittings for Hydraulic Hose Straight, 90° & 45° Elbow Field Fit/JIC Female, Male, Straight, 90° & 45° Field Fit Reusables

Product Details

Brand: hydraulic.online

Weight: 0.15 kg

45 Degree JIC Field Fit Reusable two piece Hydraulic Hose Fitting

Repair your own hydraulic hoses: in the field! 45° Elbow Hosetails

Field Fit Hydraulic Hose fittings are a two piece assembly made from Zinc coated Steel designed to be used on most one or two wire SAE rated hydraulic hose.

Using basic hand tools and following a simple assembly procedure: the 2 pieces are screwed onto and into a Hydraulic Hose. When fully assembled, the connection is rated to work safely up to the full pressure rating of the hose.

Designed to repair damaged Hydraulic Hoses or to be used in new Hydraulic Hose assemblies, without using expensive equipment.

Price is for one hosetail & one ferrule.

To buy multiple quantities of different sizes:

Select the button on the item you want to purchase then enter the quantity at the bottom of the list (you can also use the up and down arrows to add or subtract quantities.
Then click 'add to bag’, you can then select another item and repeat the procedure.
When finished click Go to Checkout box where you can review your items, and edit quantities or remove them altogether.
If you are happy with your selection you can move to checkout or click the link at the bottom of the page that states “Looking for more? Continue shopping.
Continue Shopping will take you back to the Category of Products you were looking for.

JIC/UNO THREAD ID CHART
Male Thread OD & Pitch	DASH SIZE	Male Thread OD		Female Thread ID		TUBE SIZE
Male Thread OD & Pitch	DASH SIZE	Male Thread OD		Female Thread ID		TUBE SIZE
inch – TPI		mm	inch	mm	inch	inch
5/16 – 24 UNF	-05	7,9	0.31	6,9	0.27	1/8
3/8 – 24 UNF	-06	9,5	0.38	8,5	0.33	3/16
7/16 – 20 UNF	-07	11,1	0.44	9,9	0.39	1/4
1/2 – 20 UNF	-08	12,7	0.50	11,4	0.45	5/16
9/16 – 18 UNF	-09	14,3	0.56	13,0	0.51	3/8
3/4 – 16 UNF	-12	19,1	0.75	17,5	0.69	1/2
7/8 – 14 UNF	-14	22,2	0.88	20,3	0.80	5/8
1.1/16 – 12 UNF	-17	27,0	1.06	24,9	0.98	3/4
1.3/16 – 12 UNF	-19	30,2	1.19	28,2	1.11	7/8
1.5/16 – 12 UNF	-21	33,3	1.31	31,2	1.23	1
1.5/8 – 12 UNF	-26	41,3	1.63	39,1	1.54	1.1/4
1.7/8 – 12 UNF	-30	47,6	1.88	45,5	1.79	1.1/2
2.1/2 – 12 UNF	-40	63,5	2.50	61,5	2.42	2

Made from zinc plated steel, these DIY fittings are a cost effective design and can be assembled with simple hand tools onto two wire hydraulic hose manufactured to SAE 100R1 and SAE 100R2 Specifications.

Option at no extra cost field fit body to suit SAE 100R1- Hose.
Each order comes with easy to follow assembly instructions.

Many other thread types and sizes available on request, adaptors too, Contact us on 0755631982

POST; We are happy to combine shipping. Contact us for large orders

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
