Hose Tail - BSP Male Live Swivel - Straight - Two-Piece Crimp-On
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/Two piece Crimp-on Hosetails in Straight, 45° & 90°/BSP Hose Tails
Product Details
Weight: 0.10 kg

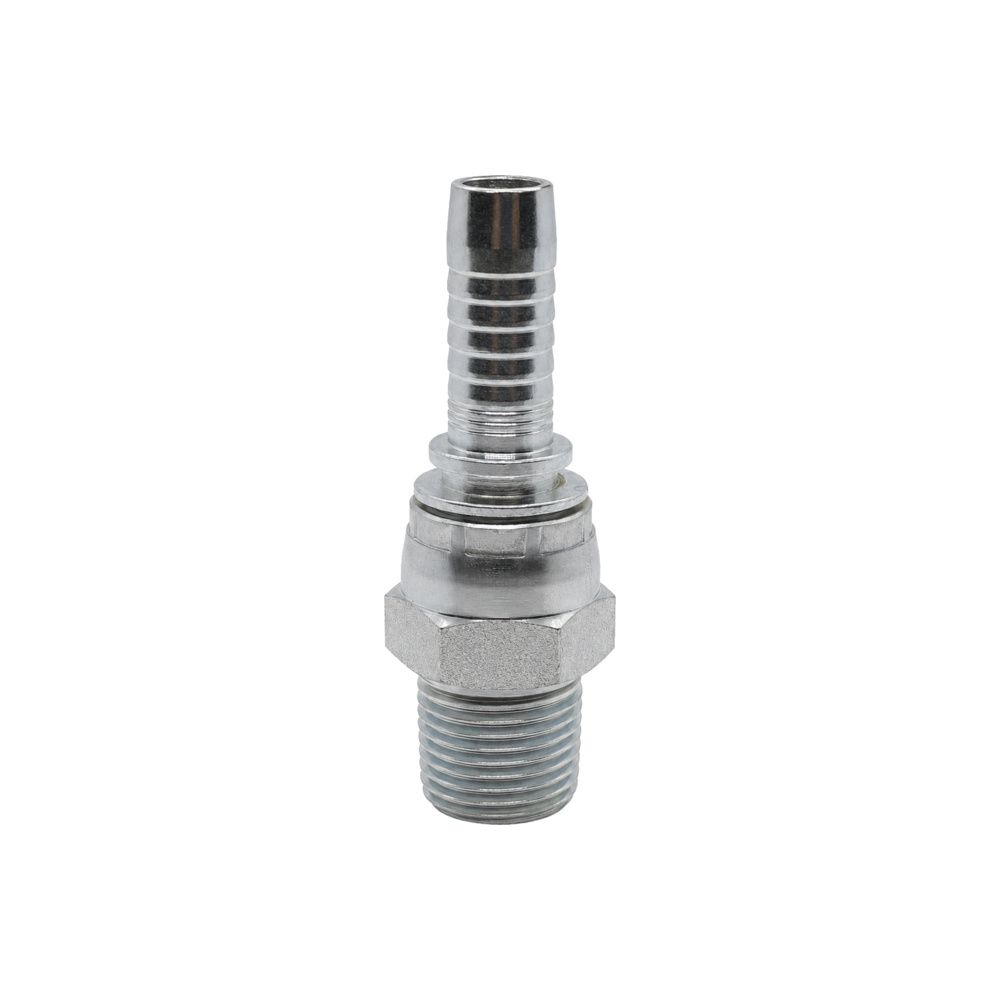

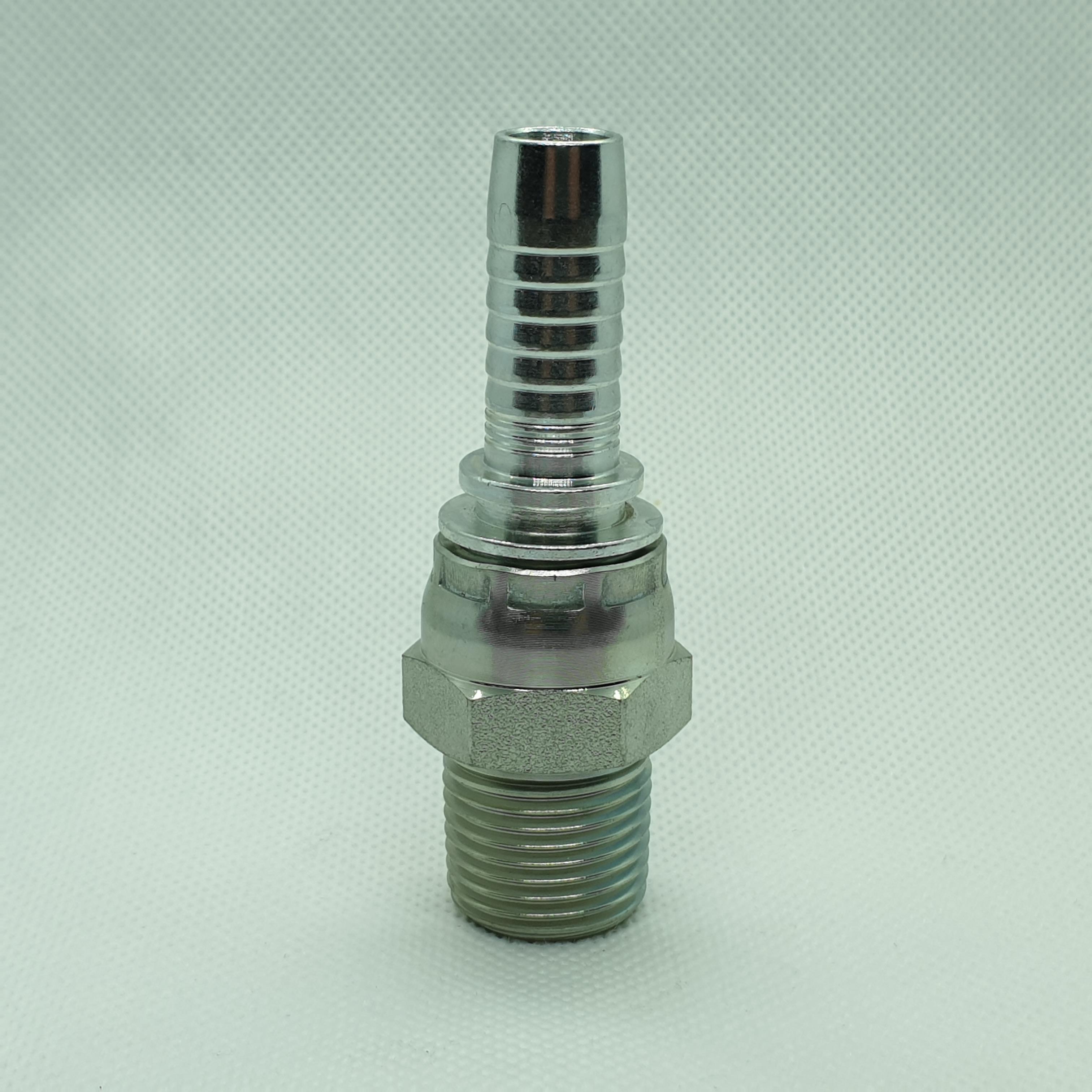

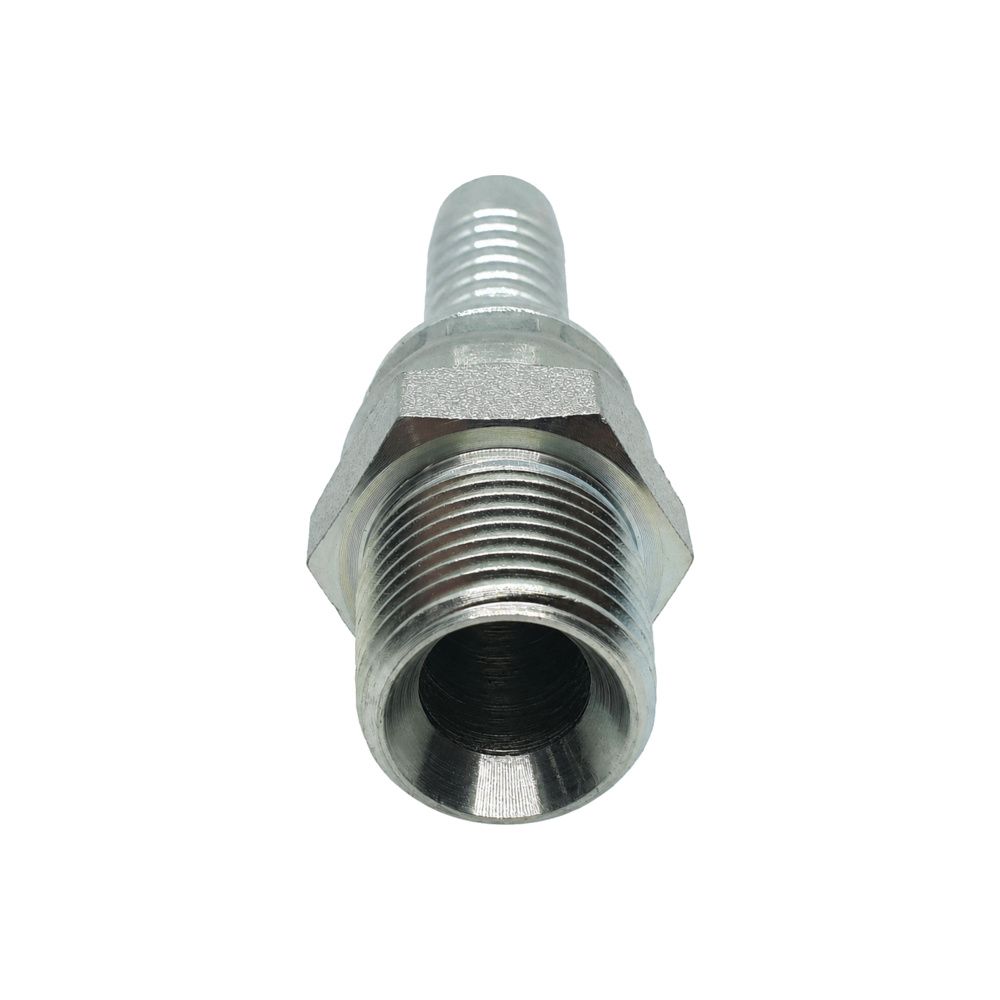

Hose Tail – BSP Male Live Swivel – Straight – Two-Piece Crimp-On
A BSP tapered male on a live swivel body with a straight crimp tail. The hose can rotate in service without winding up.
Two-piece crimp-on – how it goes together
This is the tail (stem) only. A two-piece assembly is the tail plus a separate ferrule crimped over the hose. Our FS-R2 Multi-Fit ferrule covers 1-wire, 2-wire, M3K and MXT braided hose, so one ferrule series does the lot and you stock half the parts.
Add the matching FS-R2 Multi-Fit ferrule
How to choose
- A straight tail is the default. Only go to a bend when the hose would otherwise leave the port at an angle it does not like.
- The male end seals on the thread and needs sealant. The swivel is there for movement, not sealing.
- Use it where the hose has to turn in service – reeled lines, booms and rotating attachments.
⬇ Crimp Dimensions Chart (PDF) ⬇ Thread Identification Chart (PDF)
Where You’ll Find It
- BSP Male Live Swivel – installations where the hose has to be free to rotate in service – reeled lines, moving booms and rotating attachments.
Cross-Reference
- BSP Male Live Swivel – BSPT male live swivel. Different from a swivel female: here the male rotates on the body, so the hose is not wound up as the machine moves.
Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.
Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standard listed above.
★ Dimensions & Sizes
All measurements in millimetres unless a thread size is shown. Scroll the table sideways on a phone.
| Part number | Tail | Thread | Material | Finish |
|---|---|---|---|---|
| HTB-BSM-0404 | 1/4" | 1/4" BSPT 60° Cone | Mild steel | Plated finish |
| HTB-BSM-0606 | 3/8" | 3/8" BSPT 60° Cone | Mild steel | Plated finish |
| HTB-BSM-0808 | 1/2" | 1/2" BSPT 60° Cone | Mild steel | Plated finish |
Crimp diameters – 2026 chart (mm)
Crimp outside diameter in millimetres, measured across the flats after crimping, using the FS‑R2 Multi‑Fit ferrule. One ferrule series covers 1‑wire, 2‑wire, M3K and MXT braided hose.
| Hose size | CR1 1‑wire (100R1AT / 1SN) |
CR2 2‑wire (100R2AT / 2SN) |
M3K (100R17) |
MXT |
|---|---|---|---|---|
| -04 (1/4") | 17.25 | 18.40 | see note | 18.20 |
| -05 (5/16") | 18.65 | 19.20 | – | – |
| -06 (3/8") | 19.95 | 21.20 | 19.80 | 20.50 |
| -08 (1/2") | 23.25 | 24.15 | 23.60 | 23.50 |
| -10 (5/8") | 26.95 | 27.45 | – | – |
| -12 (3/4") | 30.75 | 31.85 | 32.30 | 30.40 |
| -16 (1") | 39.25 | 40.40 | 40.00 | 38.10 |
| -20 (1-1/4") | 48.80 | 51.00 | – | – |
| -24 (1-1/2") | 56.00 | 58.30 | – | – |
| -32 (2") | 70.80 | 72.50 | – | – |
Pressure‑wash hose 3/8" 6,000 psi crimps to 20.20mm on the FS‑R2‑06 ferrule.
Note: 1/4" M3K uses a one‑wire‑specific ferrule rather than the FS‑R2 – call 1300 146 737 and we will sort it.
Check the finished crimp with calipers at two points 90° apart and aim within ±0.1mm of the figure. Thermoplastic 100R7 and PTFE 100R14 hose crimp to different diameters on a different ferrule series – ask us before you crimp either onto these tails.
These figures are for Hydraulic.Online two‑piece tails with FS‑R2 ferrules. Never mix a tail from one system with a ferrule from another.
Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP
Technicians Advice
A live swivel is a wearing part. If a hose on a moving boom starts weeping at the fitting, check whether the swivel has worn before you blame the crimp.
