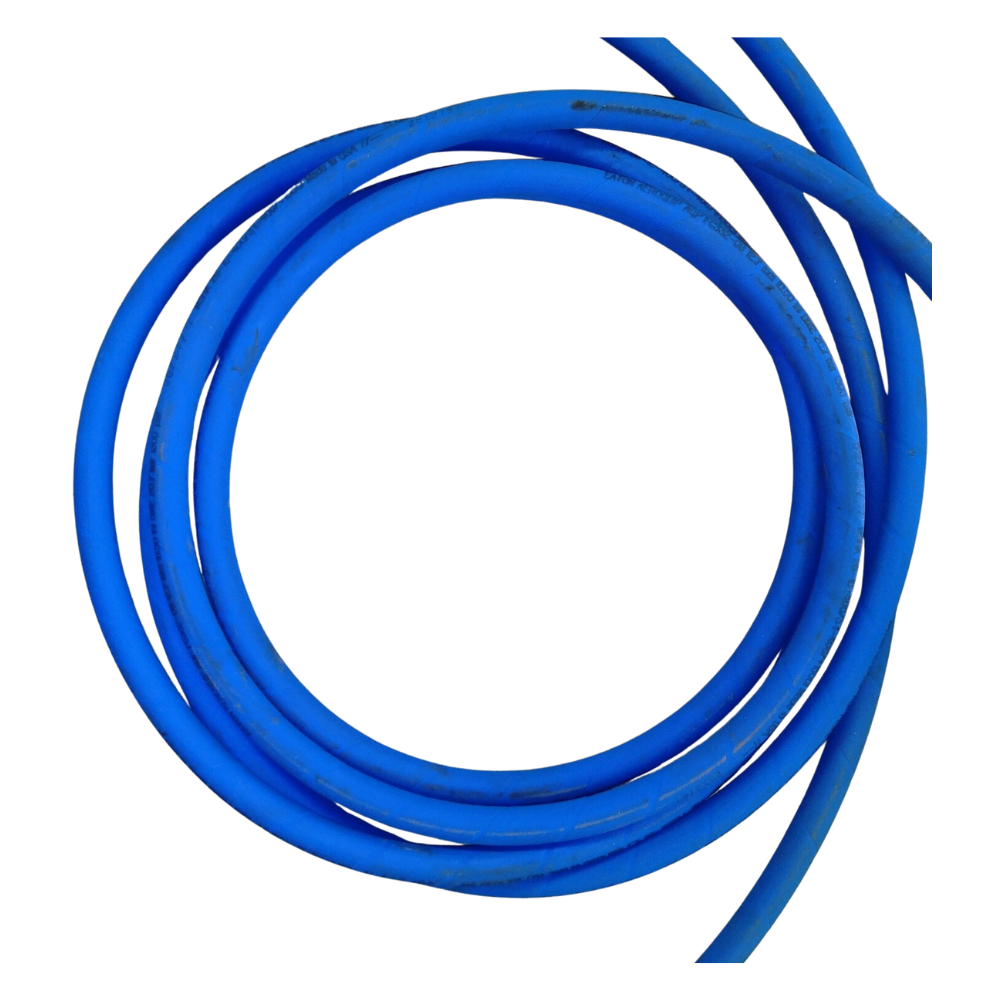

High Temp Oil Hose for most types of mineral oils including Engine and Transmission oils, also good for hot water and hot compressed air.
This hose is well suited to low-pressure (up to 400 psi), and high-temperature oil applications such as hot engine and or transmission oil cooler lines. Hose ends can be the push-in style or held on with hose clamps or even low-pressure crimp on hose fittings.
Click this link below to see hose tails to suit this hose
https://www.hydraulic.online/store/JIC-FEMALE-PUSH...

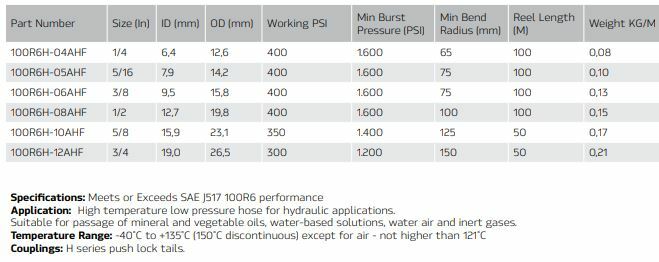

Specifications:
Meets or Exceeds SAE J517 100R6 performance Application: High-temperature low-pressure hose for hydraulic applications to 400 PSI (27 bar).
Suitable for the passage of mineral and vegetable oils, water-based solutions, water air, and inert gases.
Temperature Range: -40˚C to +135˚C (150˚C discontinuous)
except for air - not higher than 121˚C
Couplings: H series push lock tails
Construction: - Inner Tube; Oil resistant synthetic rubber tube. -
Reinforcement; One highly resistant textile braid.
Outer Cover; Blue synthetic rubber resistant to oils, abrasion, and weather conditions.
MSHA (Mine Safety Health Administration) flame-resistant cover
Range of Temperature- -40˚C to +135˚C and up to 150˚C intermittently.
