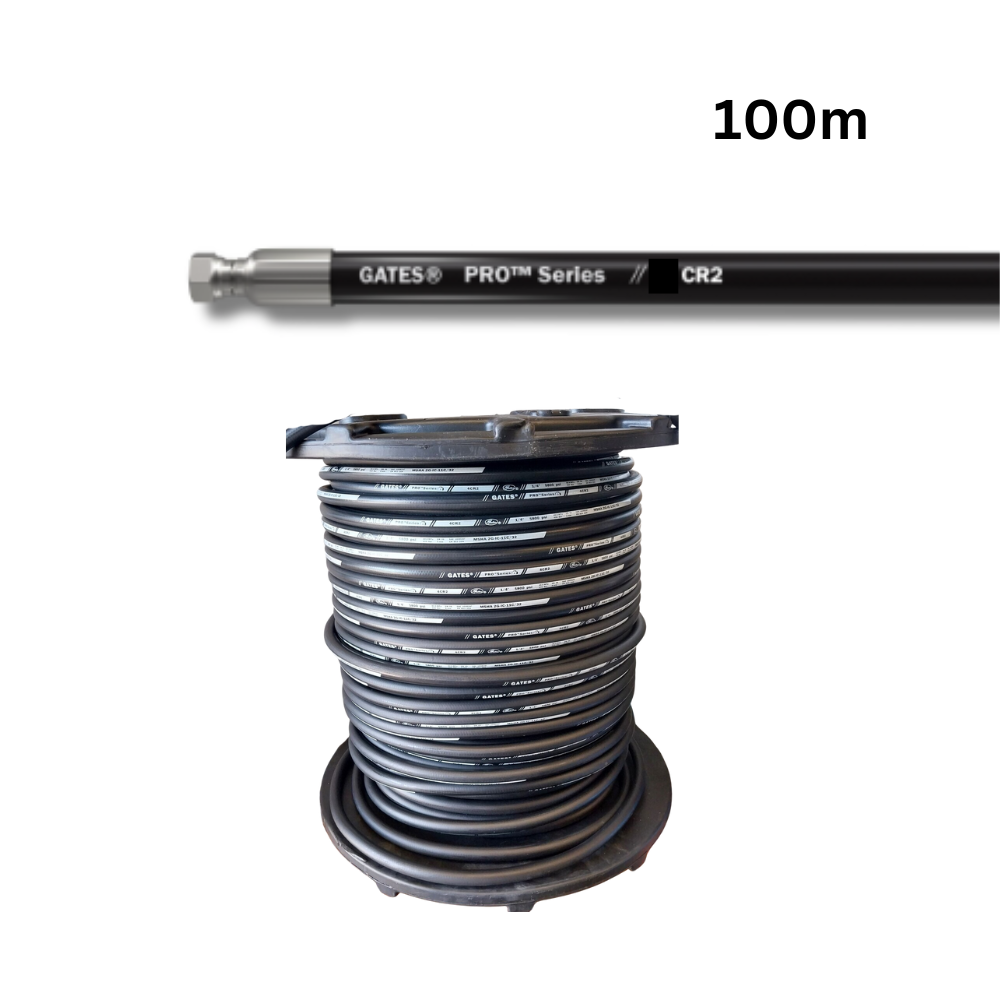

Gates Pro Series CR2will be supplied

Hydraulic Hose 3/8" Id Two Wire 340 Bar
(5000 PSI) Working Pressure 100 Meter Coil

Gates two-wire hydraulic hoses are fully compatible, interchangeable, with most other hydraulic hose brands and types. Compatible with our swage on hosetails or re usable hosetails

Synthetic rubber inner tube with Two layers of braided high tensile steel wire reinforcement, and a wrapped, Oil, Ozone, Weather and Abrasion Resistant synthetic rubber outer cover.

Application
High-pressure service with petroleum base hydraulic fluids, water, Air, Water-glycol, water-oil, fire-resistant hydraulic fluids, hot oil grease, lubricants, crude, and fuel oils.
For air applications above 100 PSI, the cover should be pin pricked.
Specifications
Pressure Range:
Working Pressure: 4890 PSI
Burst Pressure: 16000 PSI (Minimum)
Range of Temperature -40⁰C to + 120⁰C
Minimum Bend Radius 135mm
Weight 0.51 KG/Mtr Total packed weight 53 KG
Size ; 48 cm x 52cm x 52cm
