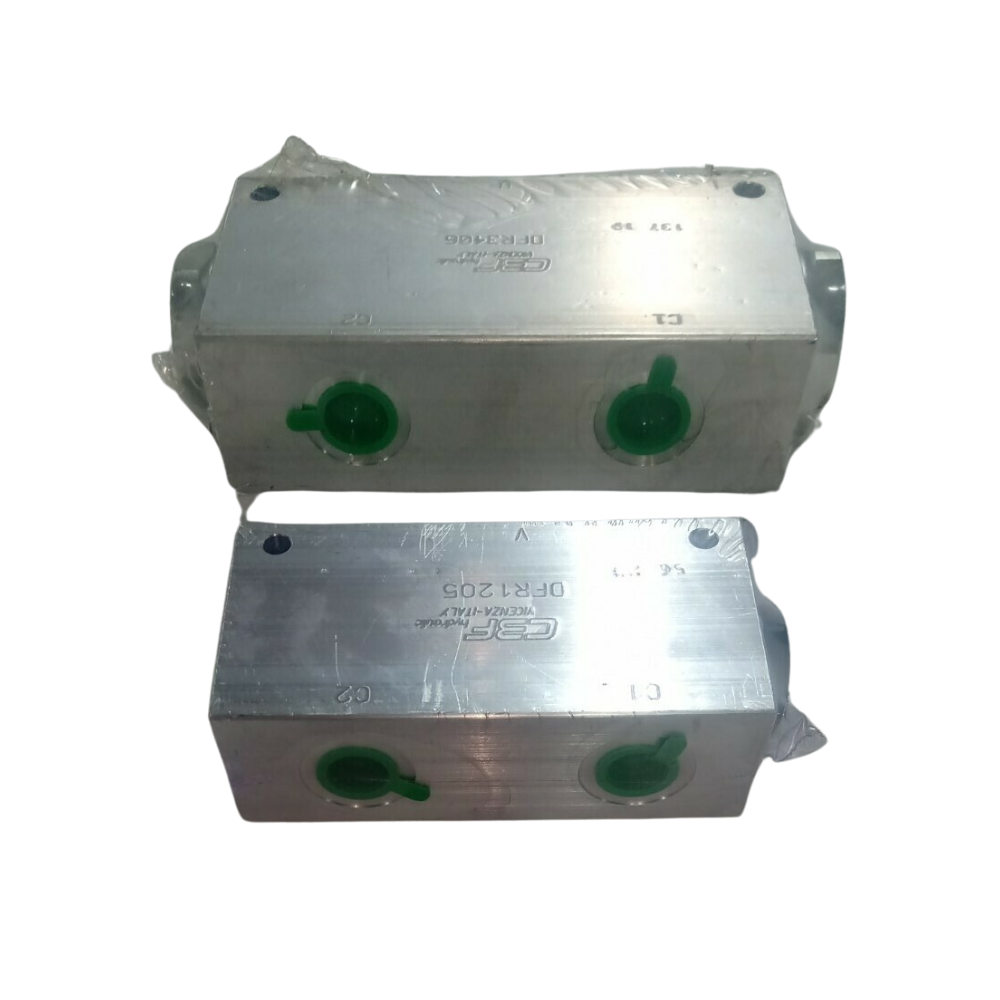

A Cartridge type Flow divider allows equal flow to two different functions.

Ideal to ensure two hydraulic cylinders move at the same rate. This valve both divides oil as well as combines flows.

For use with two cylinders (with the same size and stroke), you only require one of these as the oil is forced through & divided in both directions on double acting cylinders.

It is installed basically as a tee piece. It has one flow in, then two 50/50 flows out to cylinder ports.

This is a cheaper alternative to rotary flow dividers as this allows for 85-90% equal flow.

For most applications, we have found this to be within acceptable tolerances.

For even more precise results, see our mechanical rotary gear flow dividers. Mechanical rotary gear flow dividers have an internal 'catch up' valve if a ram gets out of synch, these do not. Your pressure relief valve will do this.

Click here to see our range of gear flow dividers

These come in various flow rates: which you can pick from the drop box next to the price. The closer to your flow rate, the more precise dividing.

• HODFR1201; 1/2” BSPP 3/8” BSPP 3 - 6 LPM 210 Bar Max pressure Ratio 50% - 50%
• HODFR1202; 1/2” BSPP 3/8” BSPP 7 - 12 LPM 210 Bar Max pressure Ratio 50% - 50%
• HODFR1203 ;1/2” BSPP 3/8” BSPP 13 - 25 LPM 210 Bar Max pressure Ratio 50% - 50%
• HODFR1204 ;1/2” BSPP 3/8” BSPP 26 - 40 LPM 210 Bar Max pressure Ratio 50% - 50%
• HODFR1205 ;1/2” BSPP 3/8” BSPP 40 - 70 LPM 210 Bar Max pressure Ratio 50% - 50%
• HODFR3406 ;3/4” BSPP 1/2” BSPP 60 - 95 LPM 210 Bar Max pressure Ratio 50% - 50%
• HODFR1007 ;1” BSPP 3/4” BSPP 90 - 150 LPM 210 Bar Max pressure Ratio 50% - 50%
