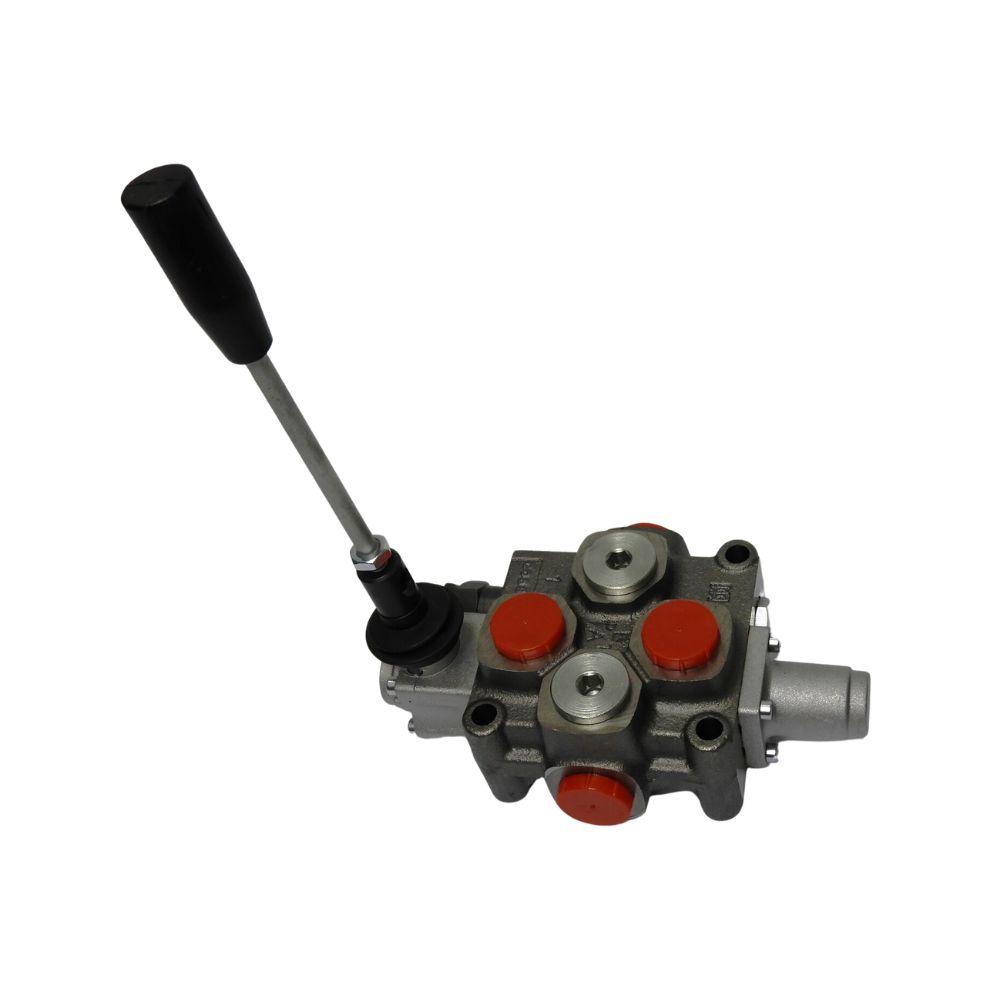

Galtech Q75 Monoblock Directional Control Valve – 1 to 6 Spool, 80 L/min, 1/2" BSPP

The big brother of our Q45 – a genuine Italian-made Galtech Q75 monoblock valve for pumps flowing up to 80 L/min. One solid cast body, adjustable relief valve, and a load-drop check on every bank so the load stays exactly where you leave it. Pick your spool count below and it is on its way.

Ways to buy this valve:

• Off the shelf: choose 1 to 6 spools below – every bank is a double-acting cylinder spool with spring return to centre, levers included.
• Building a log splitter? See our Galtech Q75 Log Splitter Valve with auto-kickout return – button below.

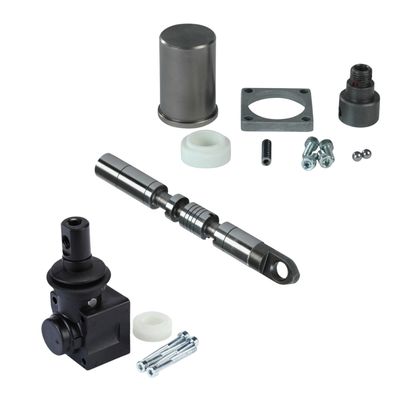

• Detents, floats, motor spools, solenoids or power beyond? Grab them from the Q75 Spares & Options listing, or call us and we will factory-configure the valve.

Pick your valve

What is in the box

• Galtech Q75 monoblock valve with your chosen number of spools (Q75M/1 – Q75M/6)
• Double-acting cylinder spools, spring return to centre, fitted as standard
• Adjustable relief valve, factory pre-set
• Load-drop check valve on every bank
• Control levers included – mountable at either end, multiple orientations

Specifications

How to choose

• Count your functions – one spool per ram or motor. Tipper + tailgate = 2 spool. Crane with slew, luff and winch = 3 spool.

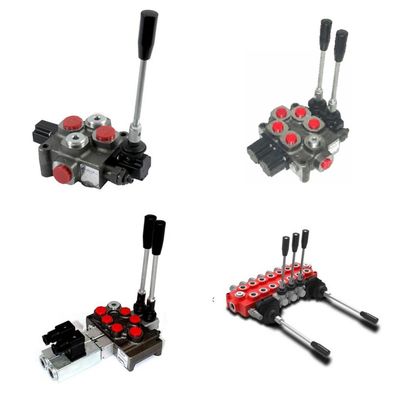

• Check your pump flow – this valve is right at home from 40 to 80 L/min. Under 60 L/min, our Q45 saves you money; over 80, step up to the 120 L/min range.
• Driving a hydraulic motor? Call us – we fit motor spools and remove the load check (a must with over-running loads).
• Two valves off one pump? Add the power beyond sleeve from the Spares & Options listing.

Technicians Advice

The Q75 is our pick for tilt trays, truck cranes and any 4-cylinder-tractor-and-up implement running a decent pump. The 3/4" tank port matters more than people think – it keeps back pressure down on long return runs, which is what makes spring-return spools actually return. Set the relief 10–15% above your working pressure, not at the max. If the valve will be electric or air operated down the track, buy it manual now and add the solenoid or pneumatic actuators later – every bank on this valve is convertible, that is the whole point of the Galtech system. Not sure between 3 and 4 spools? Buy 4 – nobody has ever complained about a spare bank.

Official Datasheets

📄 Official Galtech Q75 Factory Datasheet (PDF)

Complete your setup

Q75 Log Splitter Valve (auto kickout) Q75 Spares & Options Galtech Q45 (60 L/min, save money) Remote Control Valves & Complete Kits

Buying in bulk or fitting out a fleet? Call us for trade pricing.

Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
