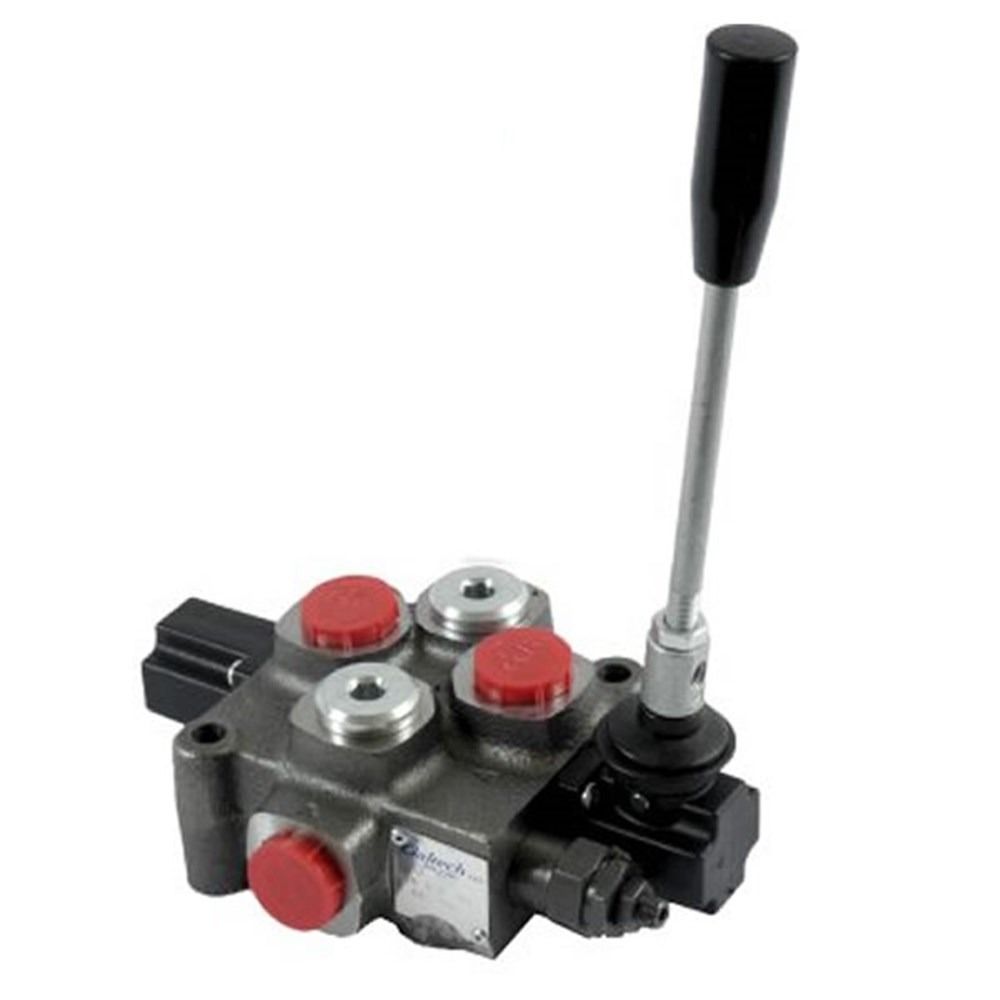

Galtech Q45 Monoblock Directional Control Valve – 1 to 7 Spool, 60 L/min, 1/2" BSPP

Genuine Italian-made Galtech Q45 series monoblock valve. One solid cast body – no tie-rods, no leaks between sections. Every valve comes with an adjustable pressure relief valve and a load-drop check on every bank, so your load stays put when the lever is centred. Pick how many spools (levers) you need below and add it to your cart – it is that simple.

Ways to buy this valve:

• Buy off the shelf: choose your spool count below – every option is a double-acting cylinder spool with spring return to centre and levers included.

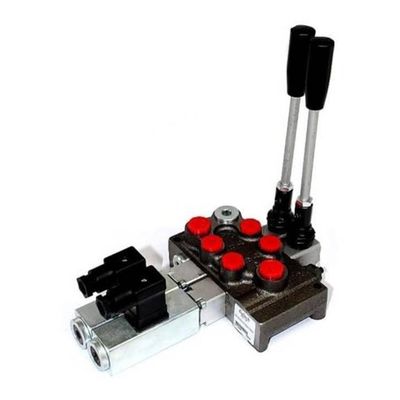

• Need solenoid (electric) operation? See our Galtech Q45 Solenoid Operated listing – button below.

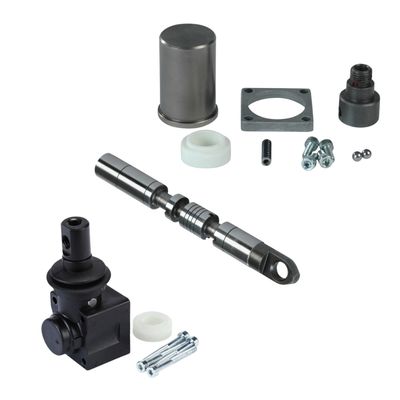

• Need detents, floats, motor spools or power beyond? Grab the parts from our Galtech Q45 Spares & Options listing, or call us and we will factory-configure the valve for you.

Pick your valve

What is in the box

• Galtech Q45 monoblock valve with your chosen number of spools (Q45M/1 – Q45M/7)
• Double-acting cylinder spools, spring return to centre, fitted as standard
• Adjustable relief valve, factory pre-set
• Load-drop check valve on every bank
• Control levers included – mountable at either end of the valve, multiple orientations

Specifications

How to choose

• Count your functions. One spool drives one thing (a ram, a motor, a tipper). Two cylinders = 2 spool. Loader with lift, tilt and grab = 3 spool.
• Check your pump flow. This valve is happy up to 60 L/min. Above that, step up to our 80 L/min range.
• Driving a hydraulic motor? Standard spools suit cylinders. For motors, call us – we will fit motor spools and remove the load check (important with over-running loads).
• Running two valves in series? You need a power beyond sleeve – it is in our Q45 Spares & Options listing.

Technicians Advice

The Q45 is the valve we put on gear that has to work every day. The monoblock body means there is nothing to stretch or weep like a stacked sectional valve, and the load check on every bank stops a loaded cylinder creeping down while you are getting into position. Set your relief 10–15% above working pressure – not at maximum – and your pump will thank you. If the valve will sit at the end of a long return line (tipper trucks, we are looking at you), keep the back pressure under 25 bar or ask us about the high back-pressure build. And if you are not sure which spool count to buy, ring us before you order – two minutes on the phone beats a freight bill both ways.

Official Datasheets

📄 Official Galtech Q45 Factory Datasheet (PDF) 📄 Galtech Q45 Series Spec Sheet (PDF)

Complete your setup

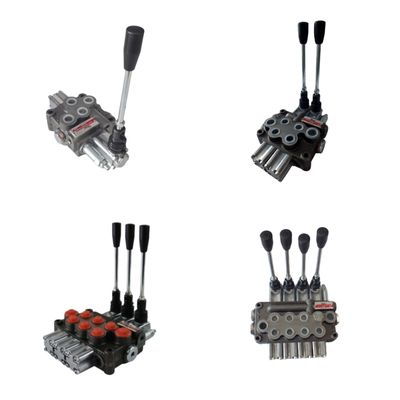

Solenoid Operated Q45 (12/24V) Q45 Spares & Options DCV40 Monoblock 60 LPM (value range) Youli MB3 45 LPM (value range)

Buying in bulk or fitting out a fleet? Call us for trade pricing.

Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
