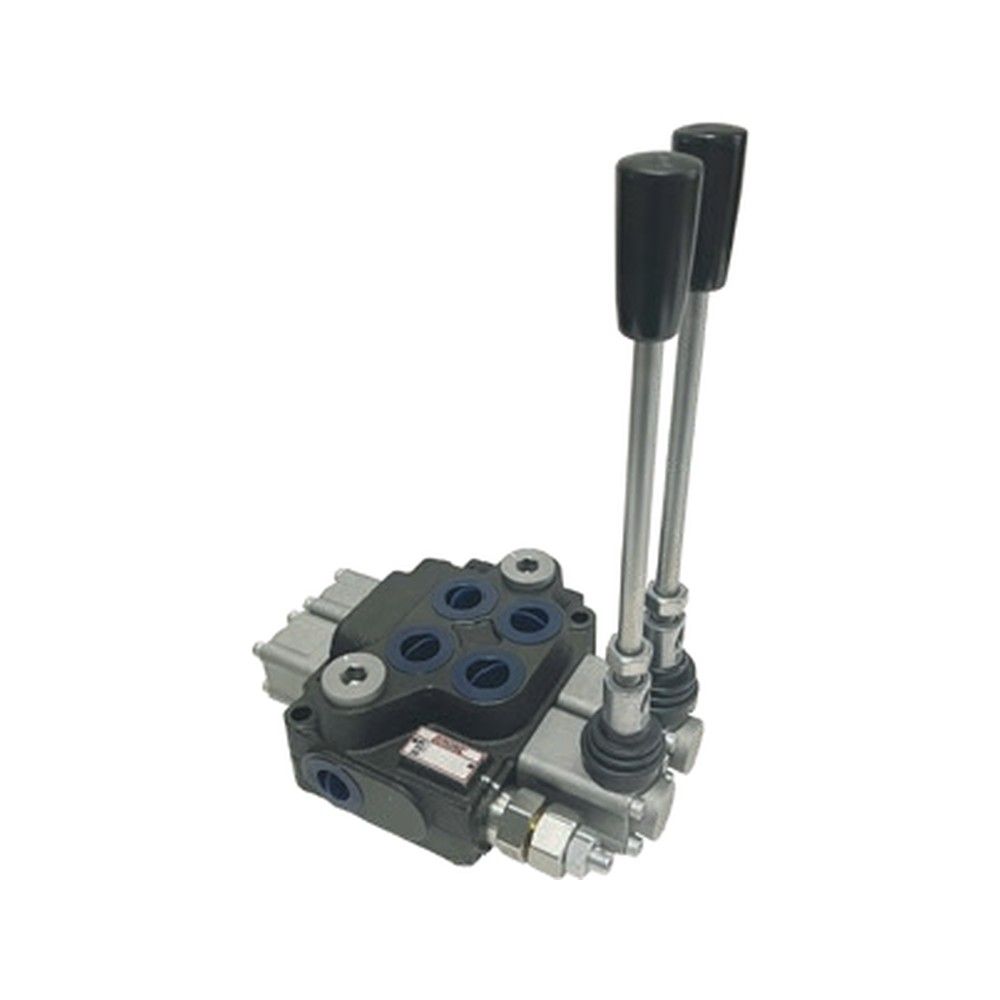

DCV40 Monoblock Directional Control Valve - 1 to 6 Spool, 60 L/min, 350 Bar, 1/2" BSPP

The higher-pressure 60 L/min option: DCV40 runs to 350 bar and stacks from one to six spools in a single monoblock. Double-acting spring-centred spools with a common load-hold check as standard.

Pick your spool count from the dropdown - each is a factory-built valve with its own part number. All prices include GST.

Sizes & Part Numbers

Spool types: S1 double-acting (standard) and S4 motor spool - motor and mixed-spool valves plus detents, pneumatic control and micro-switches are factory-coded to order, call us.

Specifications

• Flow: 60 L/min | Pressure: 350 bar | Ports: 1/2" BSPP
• Double acting, spring centred | Common load-hold check valve
• Weights: 5.4 kg (1 spool) to 15.4 kg (6 spool)

How to Choose

• System over 315 bar? This is your 60 L/min pick over the MB4.
• Count functions, add a spare spool for growth.
• Suspended loads need a counterbalance valve - the common check stops drift, it is not a load-holding valve.

Technicians Advice

Spring-centred double-acting spools with a COMMON load check - fine for drift control, not for overhead loads (fit a counterbalance valve). Set the main relief on commissioning with a gauge on P. Micro-switch and pneumatic kits mount per spool.

Official Datasheets

📄 DCV40 Dimension Drawing

Complete Your Setup

⚙ DCV20 (35 L/min, 350 Bar)⚙ MB3 1-Spool (45 L/min)

Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.

Not sure? Call 1300 146 737 or email sales@mhfgc.com.au - we will code the valve for you.
