Galtech Hydraulic Gear Pump Group 2 SAE A Mount, 5/8" Keyed Shaft 26Cc's with built in relief valve

2SP-G-220-D-SAEA-B-N-13-O-U

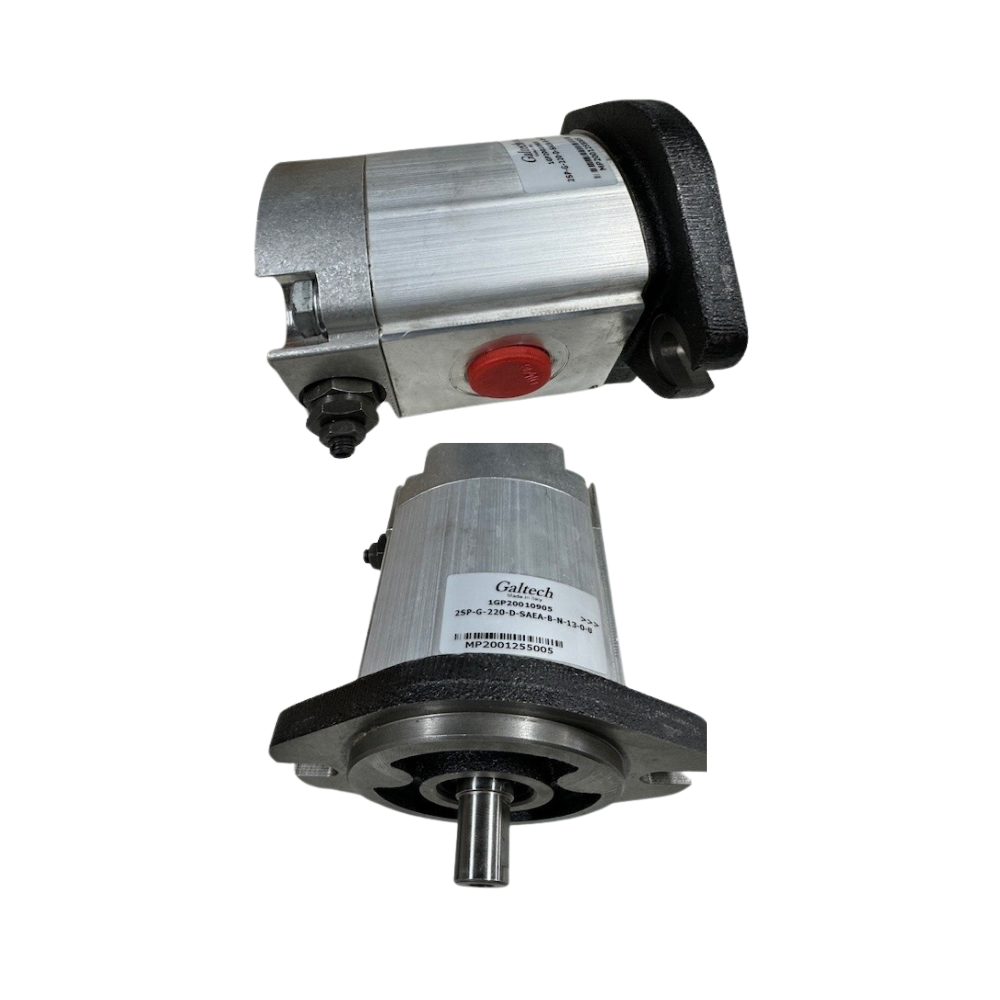

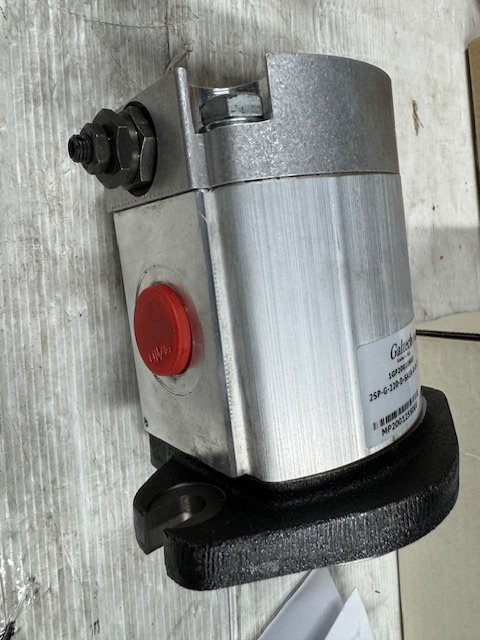

This is a 26cc Galtech gear pump complete with built in relief valve. It is brand new, but surplus to our needs, hence run out price.

It has Clockwise rotation as standard, but we can convert to make it counterclockwise. It has 7/8" pressure + 1.1/16" suction UNO threaded ports, a 5/8" x 4mm keyed shaft & 2 bolt SAE mount. The internal relief means that if pressure on P port is over the set relief pressure, oil flows internally back to the suction port. This comes with a 10 - 100 Bar relief spring ( 150-1500psi). We can upgrade to a 30-280 Bar relief spring for an extra $65. We offer a 12 month warranty.

RL 16.04 in stock upstairs Nerang
