GATES 6CR1 Hydraulic Hose has a 3/8" inch ID and has One layer of High tensile Steel Braided Wire
6CR1 has a 2,600 psi Working Pressure

a 130 mm Bend Radius
and is Flame Resistant
and MSHA certified.

This is highest quality hose made in USA to SAE (Society Of Automotive Engineers) Specifications.

SAE 100R1 – 06 NON SKIVE HOSE (One Wire)

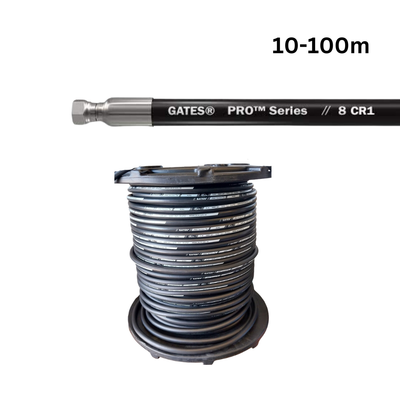

Picture is off actual hose .

Construction

Synthetic rubber inner tube with one layer of braided high tensile steel wire reinforcement and an extruded oil, Ozone, weather and abrasion resistant synthetic rubber outer cover.

Application

High pressure service with petroleum base hydraulic fluids,
water, Air, Water-glycol, water-oil, fire resistant hydraulic fluids,
hot oil grease, lubricants, crude and fuel oils.
For air applications above 100psi the cover should be pin pricked

Need another hose size, field fit reusable fittings couplers and or adaptors for your application?

Just call us on QLD 07 5563 1982

Specifications

Working Pressure: 2600 PSI

Burst Pressure: 10400 PSI (Minimum)

Range of Temperature

-40⁰C to + 100⁰C

Minimum Bend Radius

130mm

Weight

0.30 KG/Mtr
