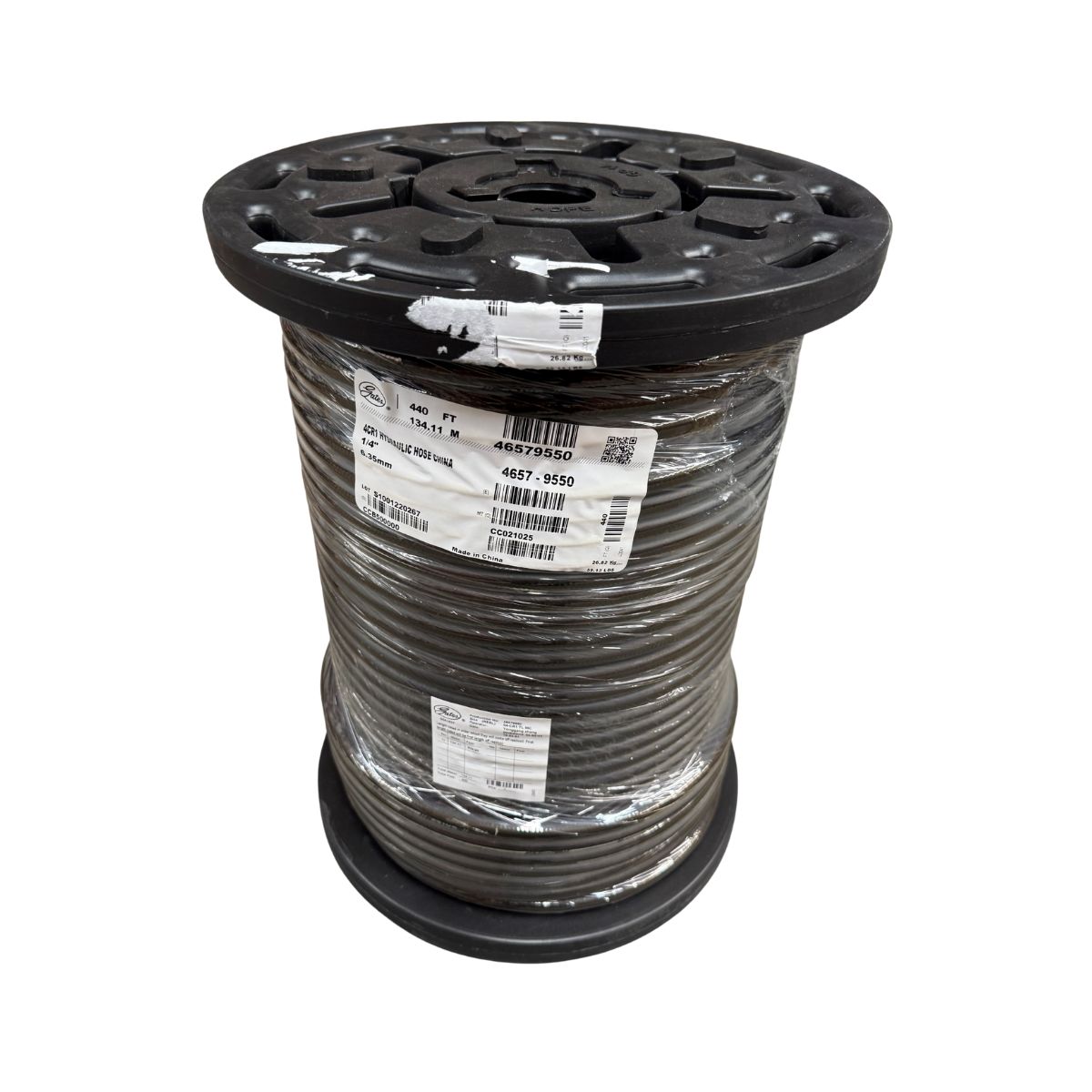

GATES Quality 1/4 " ID Hydraulic hose with 3,200 psi working pressure,

Flame Resistant and reinforced with one layer of Braided High tensile steel wire.
This is a great light and flexible hydraulic hose, that is also very flexible.
It suits either crimped on one and 2 piece hydraulic Hose fittings
or our field fit reusables (pick one wire ferrules)

SAE 100R1 – 04 GATES 4CR1 Non Skive One Wire Hydraulic Hose.

This is a good quality hose made to SAE (Society of Automotive Engineers)

100R1-04 Specifications.

Construction

Synthetic rubber inner tube with one layer of braided high tensile steel wire reinforcement and an extruded oil, Ozone, weather and abrasion-resistant synthetic rubber outer cover.

Application

High pressure service with petroleum base hydraulic fluids, water ,
Air, water-glycol, hot oil, grease, lubricants, crude and fuel oils.
For air applications above 100psi the cover should be pin pricked

Hose Specifications

Pressure Range

Working Pressure: 220 Bar (3270 PSI)

Burst Pressure: 13000 PSI (Minimum)

Range of Temperature

-40⁰C to + 100⁰C

Minimum Bend Radius

100 mm

Weight

0.22 KG / Mtr
