Direction Flow Control Micro Switch Fitted Cranes Etc 45 Lt/Min

Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves

Product Details

Weight: 7.50 kg

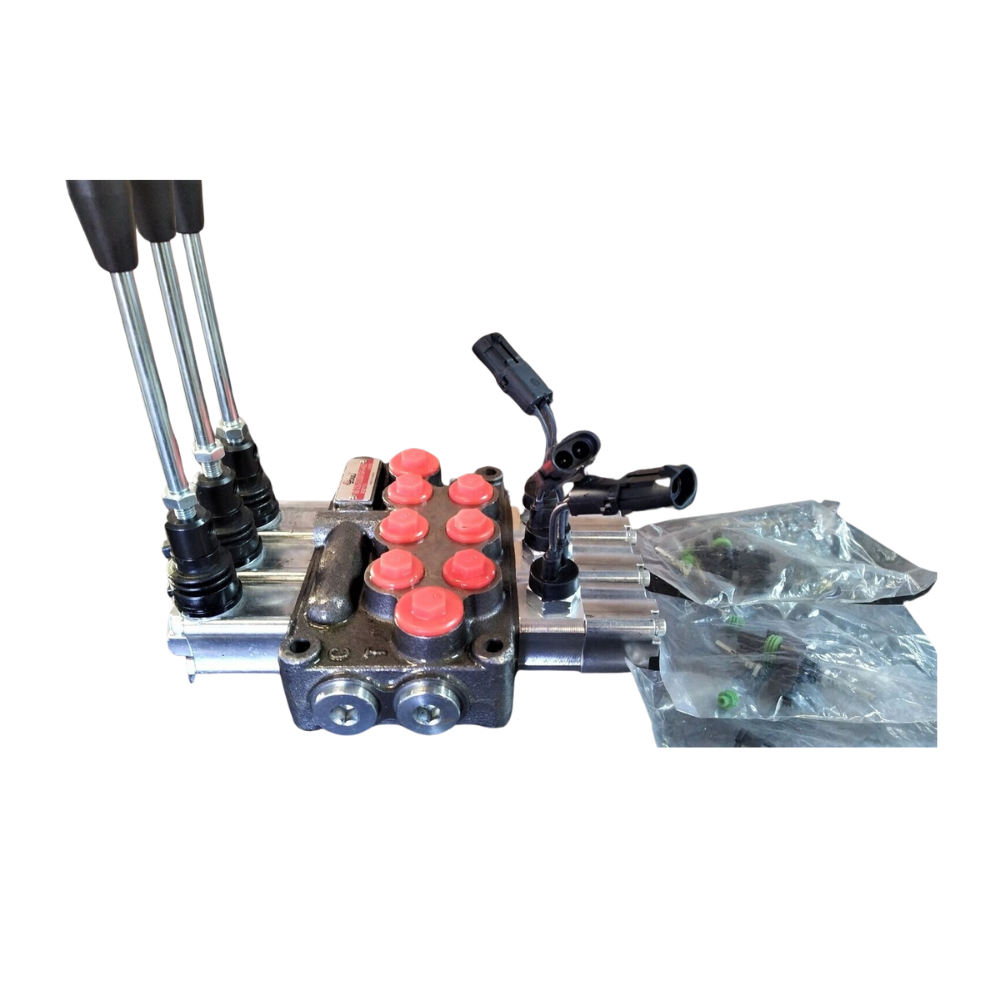

Directional control valve on/off micro switch

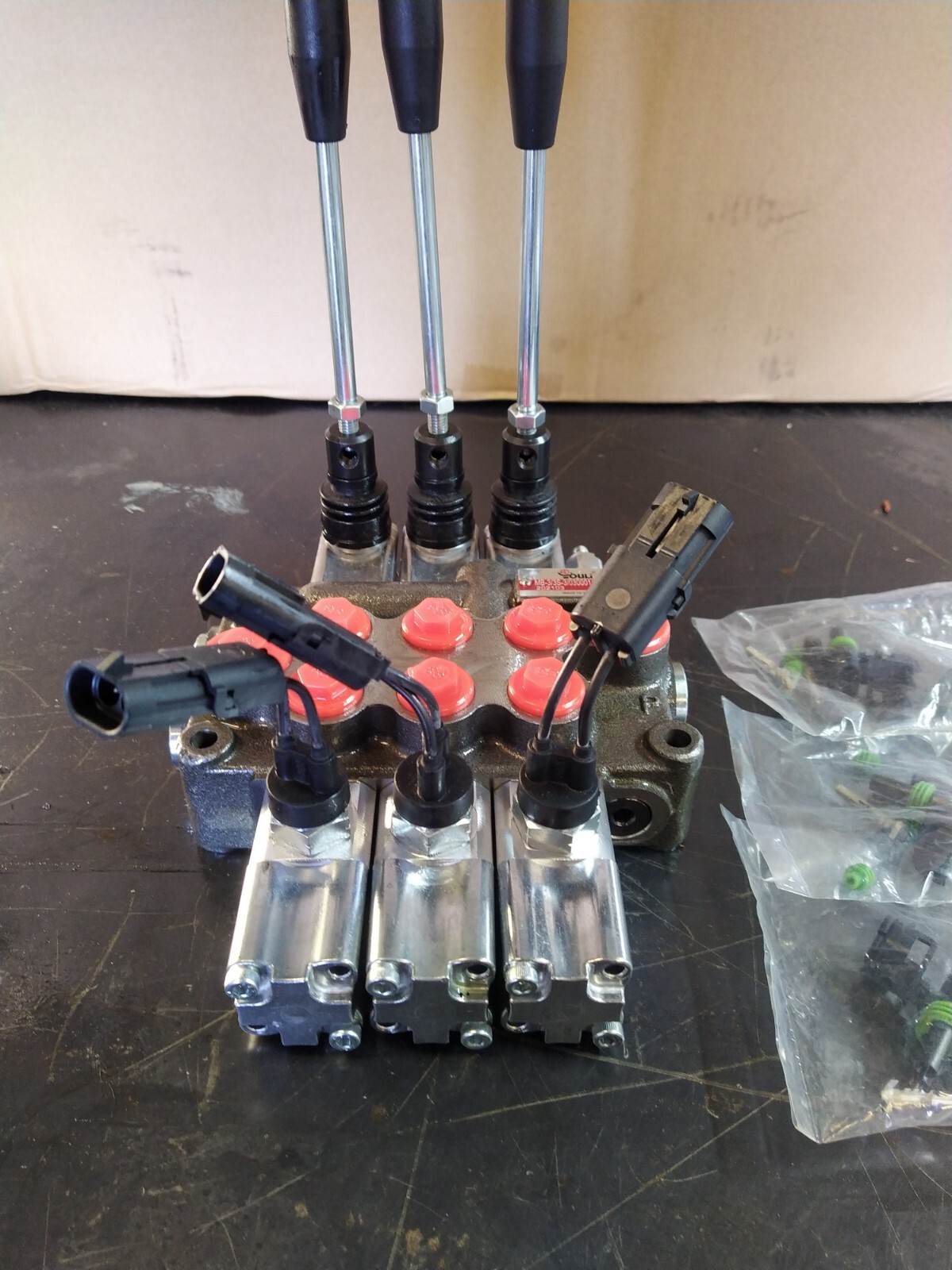

This micro switch-fitted control valve is used mostly with DC power packs, & is ideal for small cranes. This control valve is the correct item to use with cranes. When you pull/push the lever, it closes a circuit causing the power pack to start-stop automatically. It comes with the Male plug side ready to be wired up as per the photo below. Basically, the two micro switch wires complete the starter solenoid circuit when the lever is engaged. DC power packs use a lot of amperages when running, so they cause a lot of heat, if these auto switches are not fitted, operator failure to turn off the powerpack isolator can cause battery & powerpack failures.
Available as; 3 spools, contact us for pricing in levers 1 up to 6 available.
Double acting, ie will power your rams both up & down
The valve comes with IP 64 connectors, simply bundle wire from each into one going to your powerpack start solenoid. When any lever is pulled, the power pack will start.

These valves are regularly used in hydraulic circuits to divert the flow of high-pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.
Specifications
Construction = Monoblock
Material of Construction = Steel
No of Spools = 3
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 45 liters/min (12 Gallons per Minute)
Relief valve = 120 Bar (1800 PSI) - simple to adjust, just an Allan key
Spool Type = Cylinder.
Spool Movement = Lever action, Spring Return to Center
Built-in Relief Valve = Adjustable (factory set at 1800 PSI)
Ports Sizes
Pressure and Tank Port 1/2" BSPP
A & B Ports 3/8" BSPP
Operating temperature range: -20 °C to + 80°C
Dimensions = L x W x H = 200 x 120 x 55 mm
Weight 9KG
Please call 0755631982 or send us a question about different spool configurations, spool numbers, and costings.
Many types of adaptor threads, hydraulic hose, and field fit hose fittings are available please see our other listings.
This is a High-Quality Valve and has many outstanding features, including.
built-in adjustable relief valve
high-performance high-efficiency small volume mass flow,
leak resistance.
In addition to compact size, these control valves have fixed and large pull rods to control direction,
Various control options, manual, automatic, and or remote control methods are also available.
Motor Spool
Detent kit no spring return
Detent kit with spring return Pneumatic spool control
Hydraulic Control
Electric-solenoid control
Joystick cable control.
FeaturesCompact construction. Low-pressure drop.
Long service life.High-efficiency Choice of various ports and circuit valves.Spring return.
The high-accuracy spool is hardened for long-term accuracy. Sub-plate mounting. Handle shift operation.
