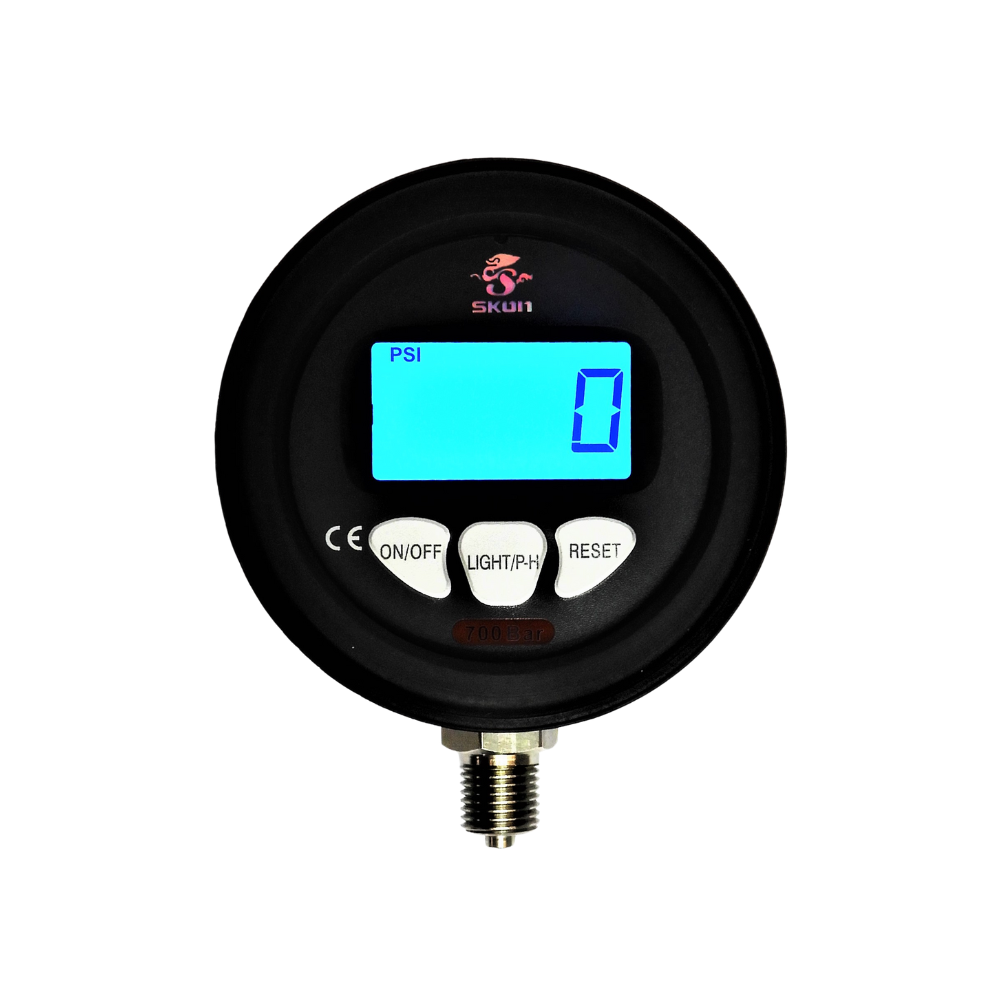

Digital Pressure Gauge 0-400 or 0-700 bar 10,000 psi Certified
SKU DIGITAL SKON GAUGE
AU$489.00
🔥 EOFY SALE!
Pressure Range in bar & psi
Add Pressure Test Accessories
Please choose
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Digital Pressure Gauge 0-400 or 0-700 bar 10,000 psi Certified
Product Details
Weight: 1.00 kg
Digital pressure gauge. 0 - 400 bar / 6000 psi or 0 - 700 bar / 10,000 psi. This certified accuracy gauge (certificate supplied)
An essential tool for any mechanic or owner of hydraulic machinery.
Has a 1/4" BSP thread stem.
It also has the ability to show 'Peak Pressure' during any given cycle.
Has a +/-0.5% precision and accuracy.
These gauges fulfil the safety requirements of German Standards EN 837-1/S2.
It has a range of readouts (photos) & comes with instructions.
This combination allows instant accurate pressure reading simply by attaching to standard test ports found on most hydraulic machinery, tractors etc.
It is an essential tool for any heavy equipment owner or mechanic.
This will give you a clear diagnosis of actual pressures and or potential problem areas on hydraulic valves, pumps or can be used anywhere in the hydraulic system
The display is adjustable to read out; PSI, BAR, KG/Cm2 , MPa.
Specifications
- High precision at ±0.5%
- Backlight display; Zero reset; Switching between 4 pressure types of PSI, Bar, kg/cm2, Mpa.
- AISI Stainless Steel 17-4PH one-piece-formed sensor, 100% without welds, O-ring or silicone oil; 100% leakage-proof.
- PP casing, can be used in weak acid or alkaline environment.
- Capable of -10~60°C temperature compensation.
- Capable of displaying and holding Peak recorded pressure.
- Burst pressure : 5 x Working Pressure
- Pressure overload : 2 x working pressure
- Service life: 10 million cycles

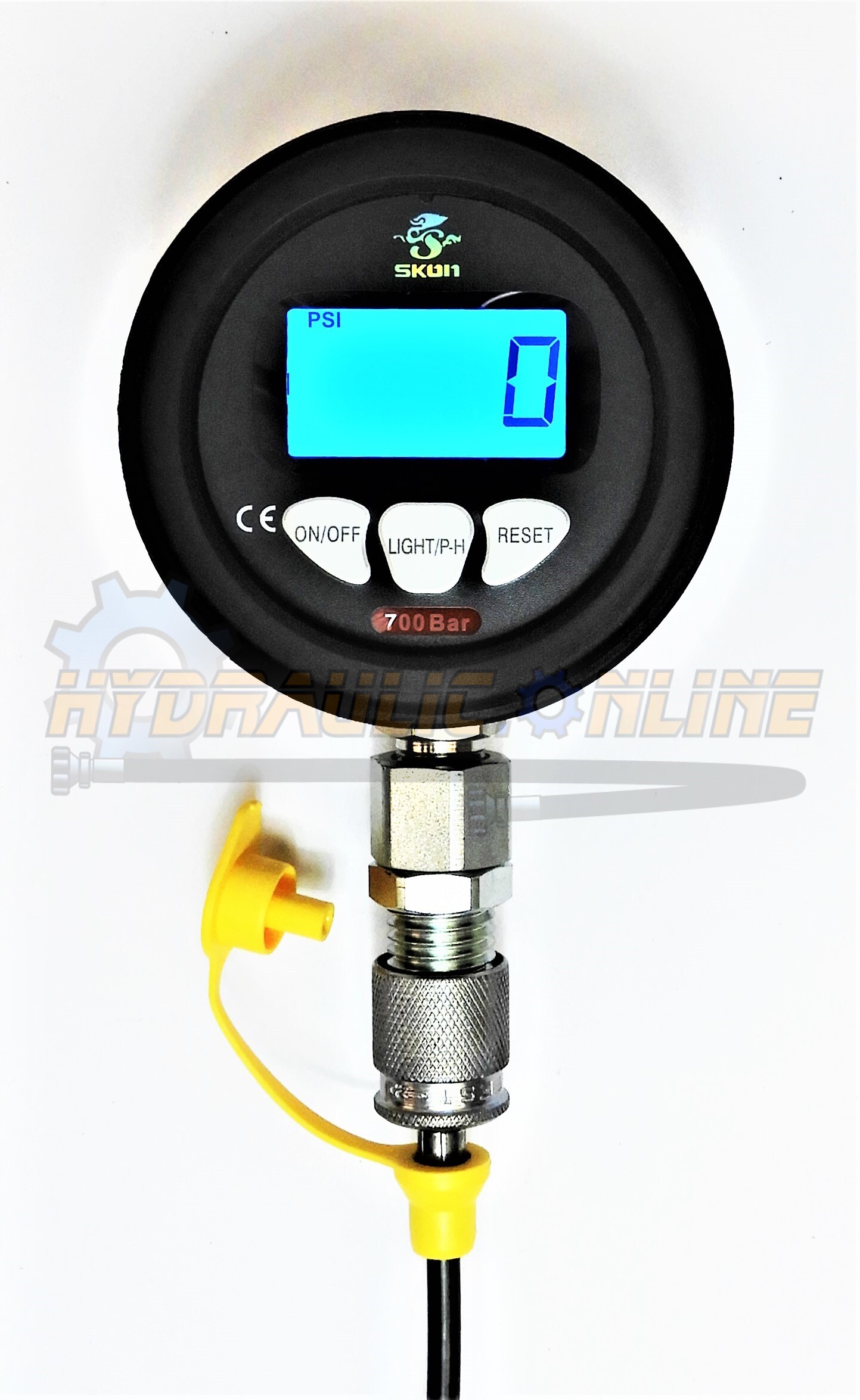

- (Optional test hose & adapters are available (just for display in image below)
- Power Supply ( 9 Volt DC Battery) 4,000 hrs life (without Back light) .
Buy with Confidence from a long established Hydraulic Service Center get a 12 month warranty and an Australian Tax Invoice.
Email us at : sales@hydraulic.online
Phone: 07 5563 1982 or 1300 1 HOSES
Hours: 8 AM to 5 PM Monday - Thursday, Friday 8 AM to 3 PM ,AEST (QLD TIME) excluding public holidays
Tax invoices are supplied with every purchase
Out of Stock
It is our desire to always have every listed item actively in stock. Occasionally (but very seldom) due to high demand, short supply or human error we may be momentarily out of stock on an item. If this happens you will be notified and given the option to either cancel for a full refund or wait for the part to come in (typically 3-14 days).
If you have any questions please don’t hesitate to contact us for further assistance,
Best regards,
Hydraulic.Online

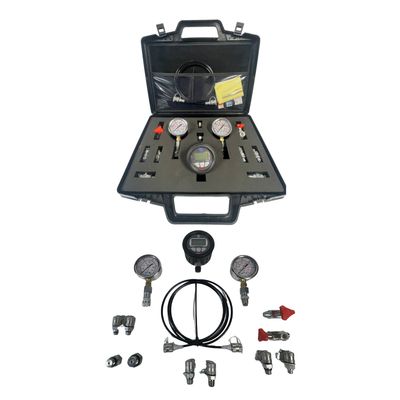

Below is a video demonstration of the equivalent product (Stauff 600 BAR Digital Gauge Kit)
IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO THE INSTALLATION AND OPERATION OF EQUIPMENT.
