240 Volt AC Hydraulic Hose Crimper with 2-1/2 inch hose crimping capability with Digital Touch Screen Control - ENGMATTEC

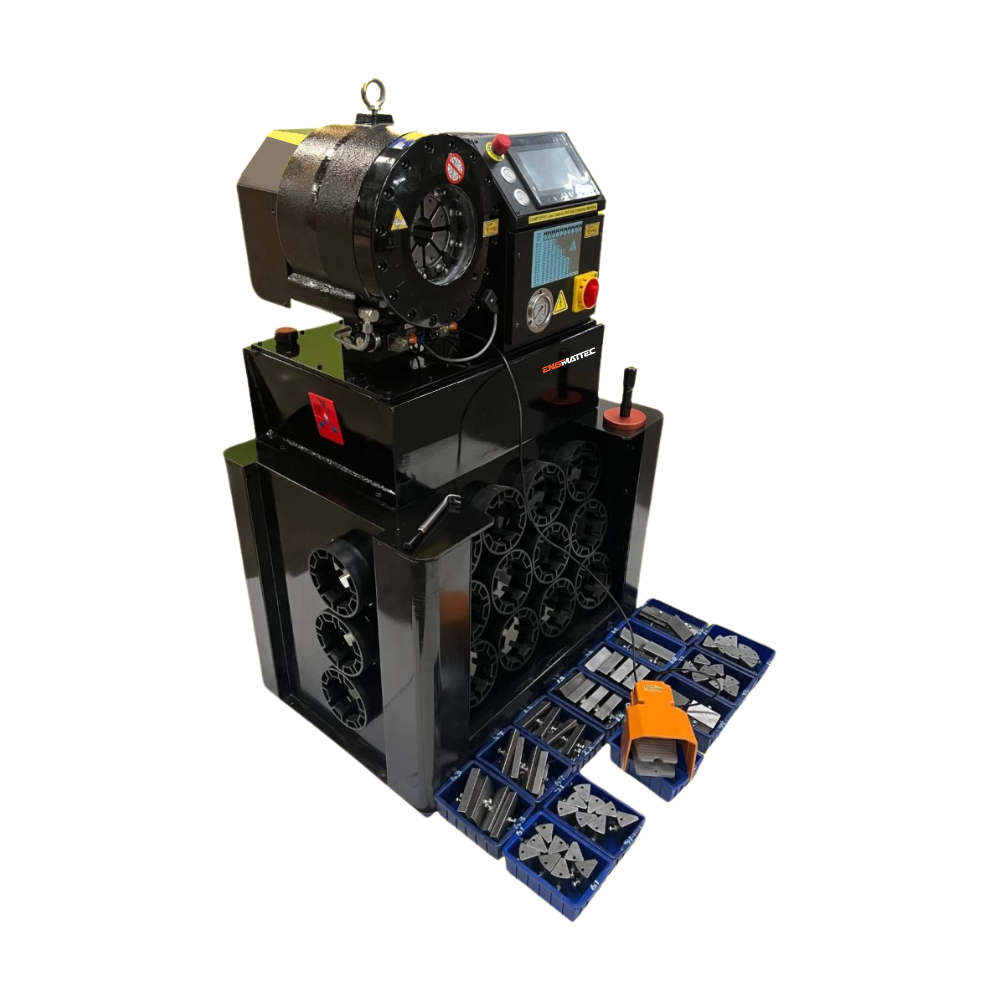

The ENGMATTEC CR-2.5INCHDIGI-240V-EN is a modern digitally controlled hydraulic hose crimping machine designed for precision, speed, and ease of use.

Built with a powerful 3 kW 240 V AC motor and advanced features like a touch screen control system, this machine will provide accurate and reliable hydraulic hose crimps on a wide range of hose assemblies from 1/4" inch all the way up to 2-1/2"

Tough and accurate and supplied with a die quick-change tool and die stand, this crimper is an essential addition to any hydraulic workshop.

Spec sheet: Click here

Key Features:

• Quick-Change Tool: Changes an 8 piece die set in one go, saving time and improving efficiency
• Touch Screen Control: Simplifies operations with an automatic crimping feature – press one button, and the machine does the rest
• Wide Hose Compatibility: Crimps hoses from 1/4” inch one wire to 2-1/2” in 2 and 4 wire wire.
• Will also crimp 2" hoses made with 1 and 2 wire braid as well as 4, and 6 wire multi spiral hoses.
• Precision Engineering: Offers a maximum crimping force of 205 tonnes with an impressive accuracy of 0.01 mm
• Durable Design: Includes 13 sets of dies (14, 16, 19, 22, 26, 30, 34, 39, 45, 51, 57, 63, and 69) to handle a variety of crimping needs
• Multiple Operational Modes: Operates via foot control, button control, or automatic mode to suit your workflow
• Certified Quality: Backed by official CE and ISO certifications and a 1-year warranty for peace of mind

Specifications:

• Max Opening: 132 mm
• Motor Power: 3 kW, 240V, 50Hz, 20 Amp (fitted with 3 round-pin plug)
• Rated Pressure: 31.5 MPa
• Tank Capacity: 46 litres
• Weight: 340 kg
• Australian Standards: 240V wiring complies with Australian regulations

The ENGMATTEC CR-2.5INCHDIGI-240V-EN will deliver awesome performance, with power, precision and repeatability. The advanced technology in this unit will also improve your speed and efficiency especially when making multiple hose assemblies of the same size.

Whether you're working on standard or heavy-duty crimping tasks, this machine will exceed your expectations and while at the same time provide amazing value for your money.
