182 piece Hydraulic Hose Emergency Repair Kit for Commercial Marine Vessels Using Standard JIC Hose fittings.

We put this kit together after discussions with a 20 year veteran of deep sea and inshore fishing, from crays, long lining, to Southern Ocean Trawling & with our years of servicing marine hydraulics.

We know the need to be properly prepared when heading to sea, we have put this kit together to cover most hydraulic situations that may come up on your average inshore boat up to 70-feet.

Just about everything you will need (except Hydraulic Oil) to get you back up and running when a callout is just not possible, too costly, many hours or many miles away and you just need to get the job done and get you back fishing and making money not heading home for repairs.

If you are fairly handy on the tools this comprehensive DIY Breakdown Repair Kit will get you out of strife and potentially save you loads of money, because it will allow you to repair most of the common failures you will encounter during your day-to-day Fishing, Trawling, Harvesting or Salvage Operations even small-scale mining operations using hydraulics.

For about the price of a day's running cost, this kit will allow you to fix a damaged hydraulic hose and all you will
need is a couple of spanners (with or without a vice) and a hacksaw or grinder.

This Kit is great insurance and may just pay for itself with its first use.

After nearly two decades of experience providing Hydraulic Hose breakdown repairs and maintenance to all types of Commercial and Recreational Marine Vessels and the equipment they use.

We have Specifically, selected and assembled this emergency repair kit for Commercial Marine Vessels.
This Do It Yourself Hydraulic Hose Emergency Repair Kit will keep you Moving, Trawling and Retrieving.

Our "Gates PRO Series CR2 "Smooth Cover" hydraulic hose is better designed to resist the elements of Sun Sea and Salt and is rated for most fluids found on a marine vessel with temperatures as low as down to -40 degrees C
and hot fluids up to 100 degrees C and intermittently up to 120 degrees C,

Compatible with the following fluids including Diesel and Heavy Fuel, Hydraulic Oil, Steering Oils, Hot Transmission Oils,
Water and Water/glycol (Coolant) solutions as well as Compressed Air and Cold Brine.

This Comprehensive Kit Will allow you to

• Disconnect and Plug or Cap the open Ports, on Hydraulic Pumps, Motors Cylinders, Attachments, Hoses & Pipes.
• Remove and replace a hydraulic hose end or,
• Make a completely new hose assembly or,
• Cut out a damaged or pinched section and join it back together or,
• and most important of all
• Get you quickly back to work so that you can continue to Fish and make money instead of heading home to have someone else charge you more money

This kit is about the price of a day's running cost and its also the hose fittings are reusable so if a hose you have fixed is damaged again simply take the fittings of and reuse them again

And all you will need is a couple of spanners (with or without a vice) and a hacksaw or grinder

Types of Hoses Assemblies This Kit will allow you to Make and install

• Steering and Stabiliser System Hoses
• All Types of Deck Equipment including main Winches Gilsons and Capstans, Long Line Drums, Pot Haulers. etc
• Engine Oil Cooler and Turbo feed Hoses
• Transmission Oil Cooling Hoses
• Fuel Supply, Return and Transfer Hoses
• Auxiliary control hoses for Hydraulic Valves Motors and Pumps
• Pump to Valve Hoses
• Valve to Winch Motors and Cylinder Hoses.

The Reusable Hose tails are precision machined from Solid Steel Bar stock to be very robust,

The Adaptors are made from Drop Forged Steel,

All Fittings and Hoses are Easy to Assemble, Use, & Fit with only a couple of spanners (with or without a vice) on board with no need for a crimping machine.

Contents of the Kit

Hydraulic Hose "Gates PRO Series CR2" Smooth Cover (total of 38 Meters)

• 10 meters 100R2 1/4 inch 5800 psi (400 bar) Two Wire Hydraulic Hose
• 10 meters 100R2 3/8 inch 4800 psi (330 bar) Two Wire Hydraulic Hose
• 10 meters 100R2 1/2 inch 4000 psi (275 bar) Two Wire Hydraulic Hose
• 8 meters 100R2 / 12 3/4 inch 3125 psi (215 bar) Two Wire Hydraulic Hose

• 6 meters R16SSG HDPE Hose Wrap for 1/4 inch Two Wire Hydraulic Hose
• 6 meters R20SSG HDPE Hose Wrap for 3/8 inch Two Wire Hydraulic Hose
• 6 meters R25SSG HDPE Hose Wrap for 1/2 inch Two Wire Hydraulic Hose
• 6 meters R32SSG HDPE Hose Wrap for 3/4 inch Two Wire Hydraulic Hose
• Hydraulic Hose and Wrap are coiled and packed in a Waterproof Buffel Bag

• 6 x 1/4" Hose x 9/16 JIC Female,
• 2 x 1/4" Hose x 9/16 JIC Male
• 6 x 3/8" Hose x 9/16 JIC Female
• 2 x 3/8'' Hose x 9/16 JIC Male
• 6 x 1/2" Hose x 3/4 JIC Female,
• 2 x 1/2" Hose x 3/4 JIC Male,
• 4 x 3/4" Hose x 1-1/16 JIC Female
• 2 x 3/4'' Hose x 1-1/16 JIC Male

• 1 x 9/16 JIC / UNO Male / Male Nipple
• 1 x 3/4 JIC / UNO Male / Male Nipple
• 1 x 1-1/16 JIC / UNO Male / Male Nipple
• 3 x 9/16 JIC / JIC Male / Male Nipples
• 2 x 9/16 x 3/4 JIC / JIC Male / Male Nipple
• 3 x 3/4 JIC / JIC Male / Male Nipple
• 1 x 1- 1/16 - 3/4 JIC Male / Male Nipple
• 1 x 1-1/16 JIC / JIC Male / Male Nipple
• 2 x 9/16 JIC Male / Female 45 Elbows
• 2 x 3/4 JIC Male / Female 45 Elbows
• 2 x 1-1/16 JIC Male / Female 45 Elbows
• 2 x 9/16 JIC Male / Female 90 Elbows
• 2 x 3/4 JIC Male / Female 90 Elbows
• 2 x 1-1/16 JIC Male / Female 90 Elbows
• 1 x 9/16 / 3/4 JIC / UNO Male / Male 90 Elbow
• 1 x 3/4 JIC / UNO Male / Male 90 Elbow
• 2 x 1-1/16 JIC / UNO Male / Male 90 Elbows

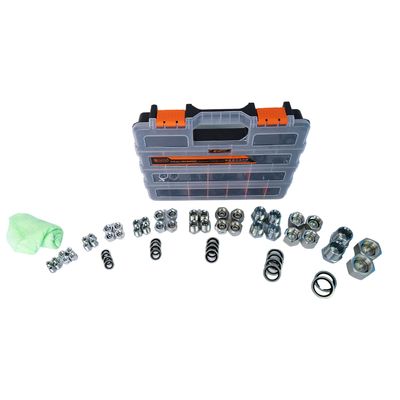

No Maintenance kit is really complete without Plugs and Caps to screw into Ports and Hose ends and onto adaptors to Protect expensive disconnected equipment from contamination.

All the plugs and caps are packed neatly in a labelled durable Impact and Oil resistant plastic case.

Contents and Quantities JIC Plug and Cap Kit

• Please note One Male Plug & One Female Cap =One Pair
• 6 pairs 7/16" -07, with 6 N9 Nitrile O rings
• 6 pairs 9/16" -09, with 6 N9 Nitrile O rings
• 6 Pairs 3/4" -12, with 6 N9 Nitrile O rings
• 4 Pairs 7/8" -14, with 4 N9 Nitrile O rings
• 4 Pairs 1-1/16"-17, with 4 N9 Nitrile O rings
• 2 Pairs 1-5/16" -21, with 2 N9 Nitrile O rings
• 1 x Microfiber Cloth.
• 1 x Impact & Oil Resistant Plastic Parts Case

Improper Selection, Installation, Implementation, And/Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
