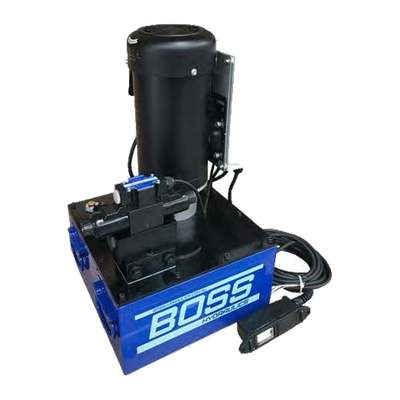

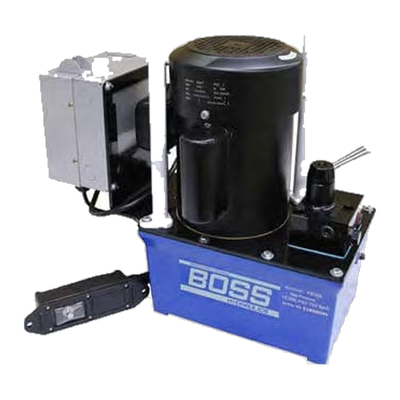

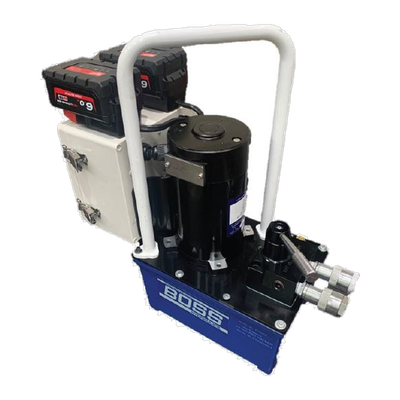

Plug it in, or take the power with you. When the cylinder is big enough that a hand pump becomes a workout, or the same cycle repeats all day, this is where you go. Single phase bench units, 415 V three phase machines, and cordless pumps that run off two 18 volt Milwaukee packs when there is no power at all.

Three things decide the model. Power – three phase is faster and cheaper per litre, but only if the bench has it. Reservoir – size it off the cylinder: bore area multiplied by stroke, then pick a pump with usable oil above that. Valve – a manual lever if the pump sits beside the job, a solenoid with a pendant if the operator needs to stand clear of the load or the cycle repeats.

One hose to your cylinder means single acting. Two hoses means double acting and you need a four-way valve. Not sure? Call 1300 146 737 and we will size it off your ram.
