Youli MB3 Monoblock Valve – 1 to 6 Spool, 45 L/min, 3/8" BSPP
Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves/45 to 60 Lt/Min Monoblock Flow Control Valves
Product Details
Brand: Youli
Weight: 3.50 kg

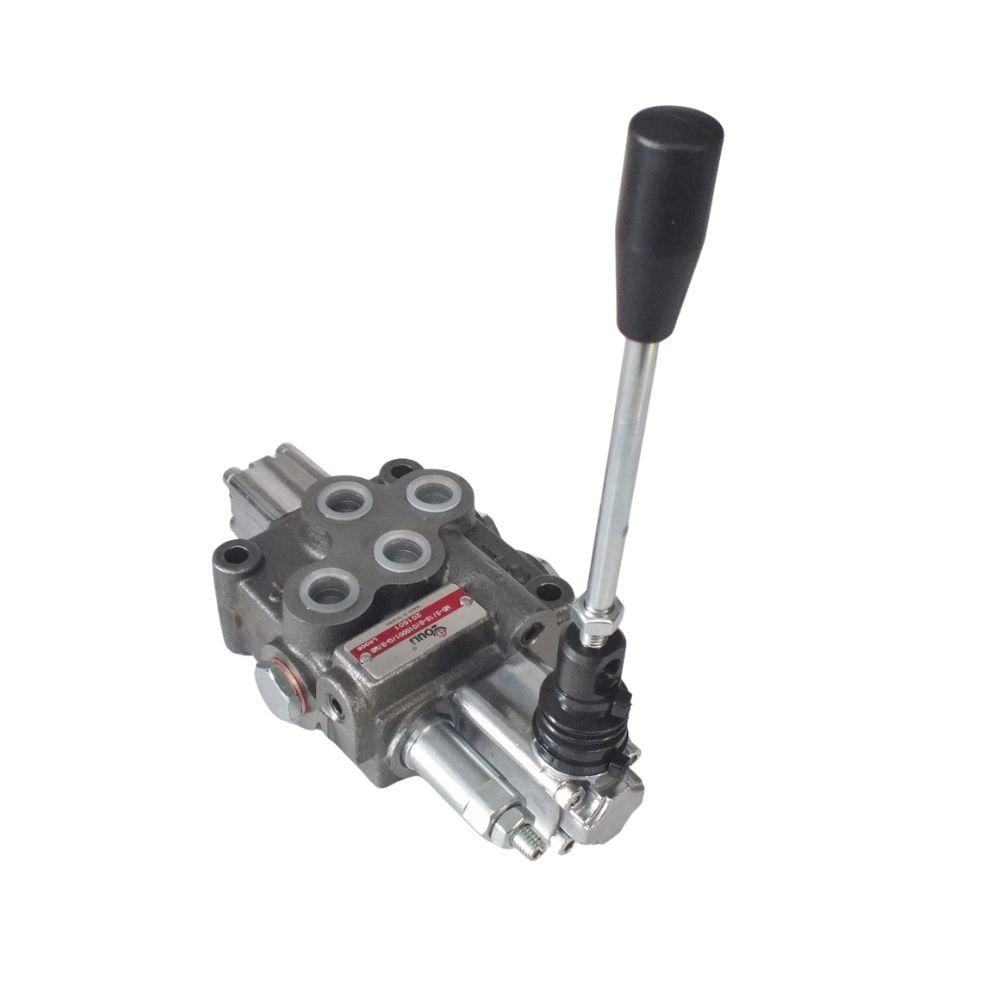

Youli MB3 Monoblock Valve – 1 to 6 Spool, 45 L/min, 3/8" BSPP
The MB3 is Youli’s compact 45 L/min monoblock – Taiwanese build quality with a cast one-piece body, adjustable inlet relief and 3/8" BSPP ports. Every factory configuration from a single cylinder spool to a six-bank valve is on this page: pick yours below and it is on its way.
Ways to buy this valve:
- Off the shelf: 1 to 6 spools below – cylinder, motor, single acting and float spool builds.
- Micro switch, joystick and solenoid controlled versions have their own listings – buttons below.
- Spools, seal kits and relief valves are in the Youli MB3/MB4 spares listing.
- Need a mix we have not listed? Youli build to order – call us.
Pick your valve
| Configuration | SKU | What the spools do | Price (inc GST) |
|---|---|---|---|
| 1 Spool – Cylinder Spool, Closed Centre (Standard) | MB3/1S3/18L/G4-3-4-M3 | Raise and lower a ram; lever centres and the load holds | $283.54 |
| 1 Spool – Motor Spool, Open Centre | MB3/1S3/28L/G4-3-4-M3 | Run a motor or spinner; open centre lets it coast to a stop | $283.54 |
| 1 Spool – Single Acting (work on B) | MB3/1S3/48L/G4-3-4-M3 | Single acting rams – power up, gravity down | $294.62 |
| 1 Spool – Float Spool (push to float) | MB3/1S3/5PYL/G4-3-4-M3 | Push through to the float detent – blades and rakes follow the ground | $436.39 |
| 2 Spool – Both Cylinder Spools (Standard) | MB3/2S3/18L/G4-3-4-M3 | Two rams independently – lift and tilt is the classic pairing | $441.14 |
| 2 Spool – Cylinder + Float | MB3/2S3/5PYL/G4-3-4-M3 | One ram plus a float function for ground-following gear | $741.31 |
| 3 Spool – All Cylinder Spools (Standard) | MB3/3S3/18L/G4-3-4-M3 | Three rams – loader lift, tilt and grab | $475.99 |
| 3 Spool – Two Cylinder + One Float | MB3/3S3/18L/18L/5PYL/G434 | Two rams plus one float bank for a blade or broom | $830.81 |
| 3 Spool – One Cylinder + Two Float | MB3/3S3/18L/5PYL/5PYL/G43 | One ram plus two float banks – dual ground-following functions | $879.12 |
| 4 Spool – All Cylinder Spools | MB3/4S3/18L/G4-3-4-M3 | Four independent rams from one inlet | $734.18 |
| 5 Spool – All Cylinder Spools | MB3/5S3/18L/G4-3-4-M3 | Five functions – small crane and trailer setups | $837.54 |
| 6 Spool – All Cylinder Spools | MB3/6S3/18L/G4-3-4-M3 | Six functions – the full bank for complex rigs | $974.90 |
Specifications
- Flow: 45 L/min | Pressure: 250 bar nominal | Ports: 3/8" BSPP
- Adjustable inlet relief valve (63-200 bar standard, 40-80 & 160-315 bar options)
- Spring-return 3-position levers | Made in Taiwan (Youli)
Technicians Advice
Cylinder (closed centre) spools hold a load in neutral; motor (open centre) spools let a spinning motor coast - do not run a motor on a cylinder spool. The inlet relief ships on a standard setting: set it to YOUR system pressure with a gauge on P at first start. Detent, micro-switch, pneumatic and solenoid controls all retrofit per spool - call us with the function list and we will code it. Power beyond needs the MB3 plug (below) and a dedicated tank return line.
Official Datasheets
📄 Youli MB3 Factory Spec Sheet
Complete Your Setup
⭐ Power Beyond Plugs (MB3)⚙ MB3 2-Spool⚙ MB3 3-Spool⚙ MB3 1-Spool + Micro Switch
Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.
Not sure? Call 1300 146 737 or email sales@mhfgc.com.au - we will code the valve for you.
