Hi-Lo Log Splitter Kit, Pump, Bell House, half couplers to suit 5HP Engine
This is a high-quality, cast iron hydraulic Log Splitter pump complete with bell housing & half couplers designed to bolt straight onto a 7Hp or less, 3/4" shaft Honda or Honda copy.
This pump is a Hi-Lo unit, which means it closes your blade quickly, then produces maximum PSI to split the wood, giving you maximum speed & splitting force for little HP. It is rated to 3600RPM max. This pump requires a minimum of 5 HP. This bell housing is designed to fit 5 hp Hondas with 3/4" shafts & most copies.

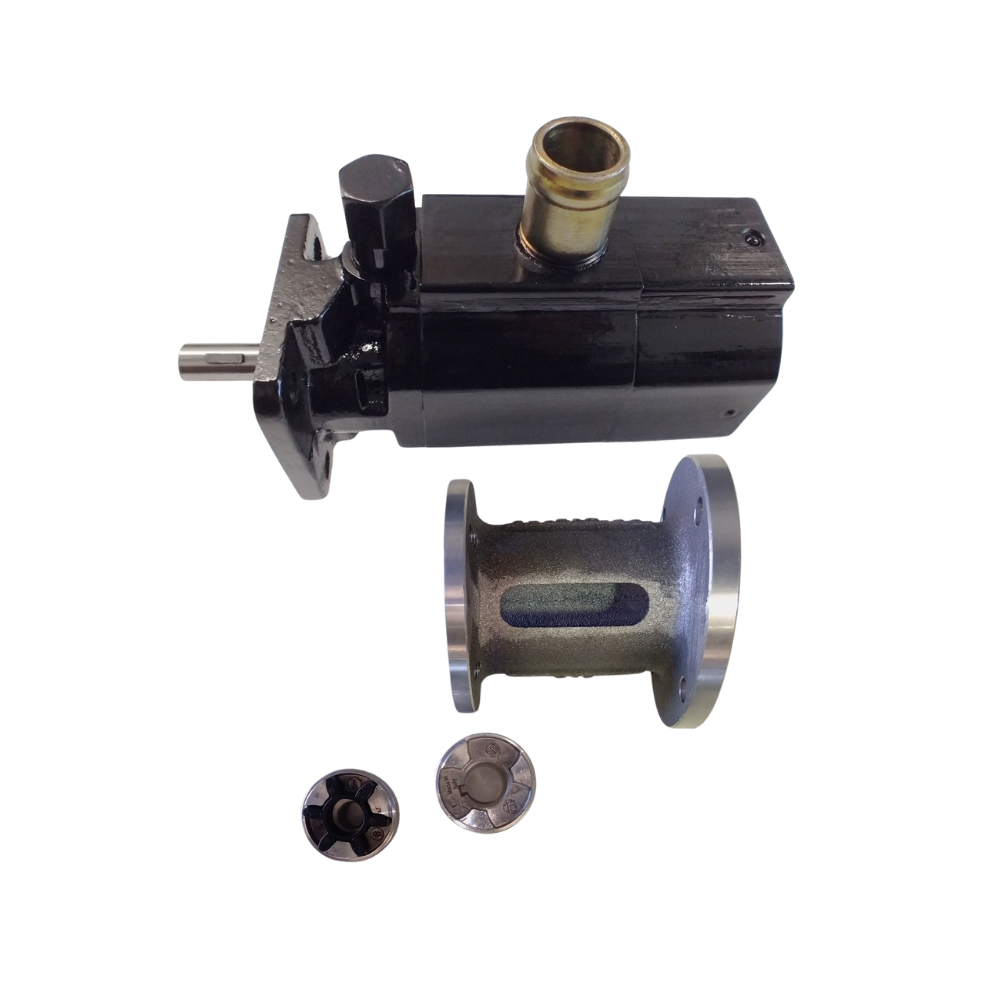

You will receive a Hi-Lo pump, Bell Housing, 1/2" Half coupler for the pump side, 3/4" half coupler for your engine shaft, & a rubber spider
Specifications
This Hi Lo pump will produce approx 11gpm / 42Lpm @ 3500rpm,
As it touches the wood, it will drop to Lo function & will produce up to 5000psi / 333 bar
The pump side has four bolt holes have 50mm centers & the round 'spiggot' measures 42mm
The engine side has 4 bolt holes 65mm x 65mm square
1" SUCTION BARB
1/2" BSP tapered pressure port.
It has a four-bolt mount

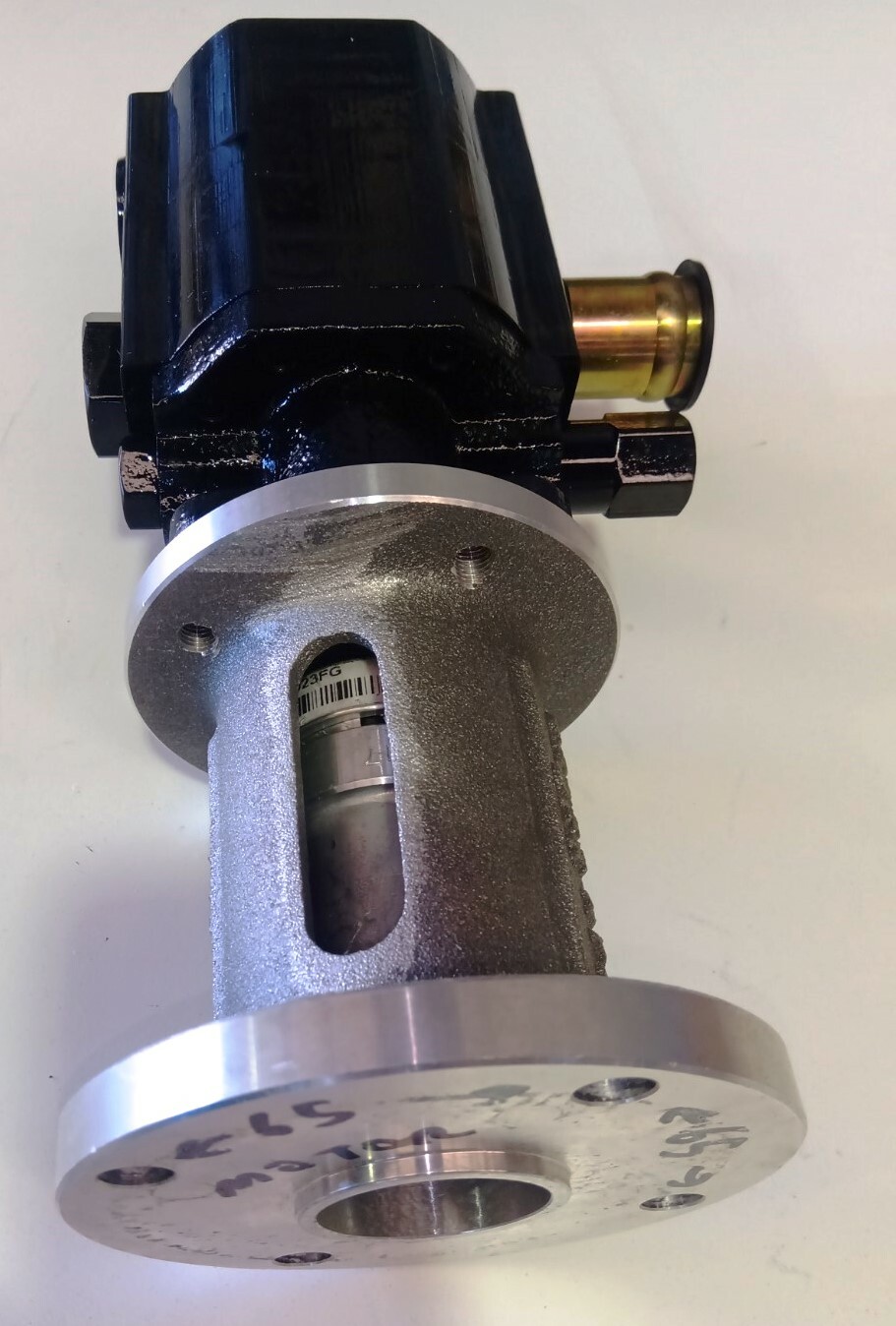

Bell houses are what are used to 'connect' pumps to motors.
The shaft is a 1/2". We sell a 1/2" pump-side coupling.
