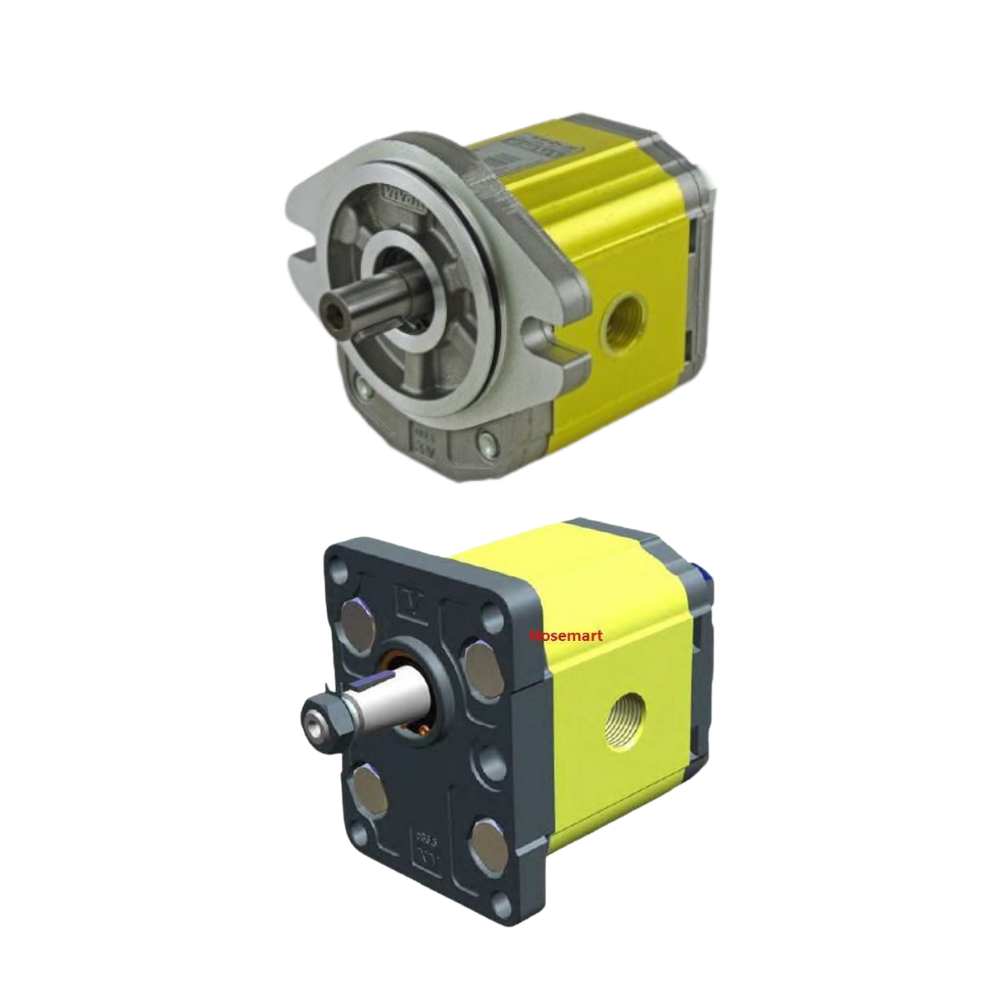

Vivoil Italian Made Hydraulic Group 2 Gear Motor with 4 bolt DIN or 2 bolt SAE Flange Mount, 700 to 3,500 RPM.

Motors have bi directional rotation as standard,

We have various Shaft & Flange mount options.

Optional Straight keyed, Splined or Tapered Shafts.

Available in the following displacements: 4.2 cc to 39.6 cc/ rev

Ports are BSPP female,

Mounting Options

• SAE A 2 Bolt Mount (Please note; the DIN Mount 1:8 tapered shaft has a 4mm keyway)or
• 4 Bolt DIN Mount,

These are high-quality Vivoil Italian-made hydraulic gear motors.

These are interchangeable with the more expensive Italian motors and pumps such as Casapa.

Ports & dimensions are as in the photos.

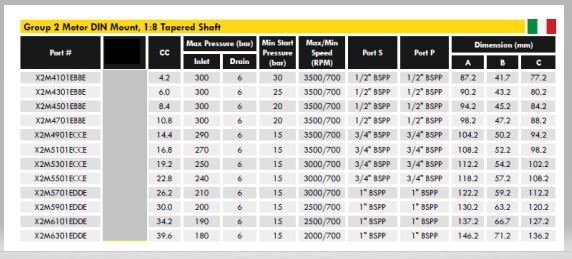

The flow & pressure ratings are in the photos.

DM $ 19/06/23
