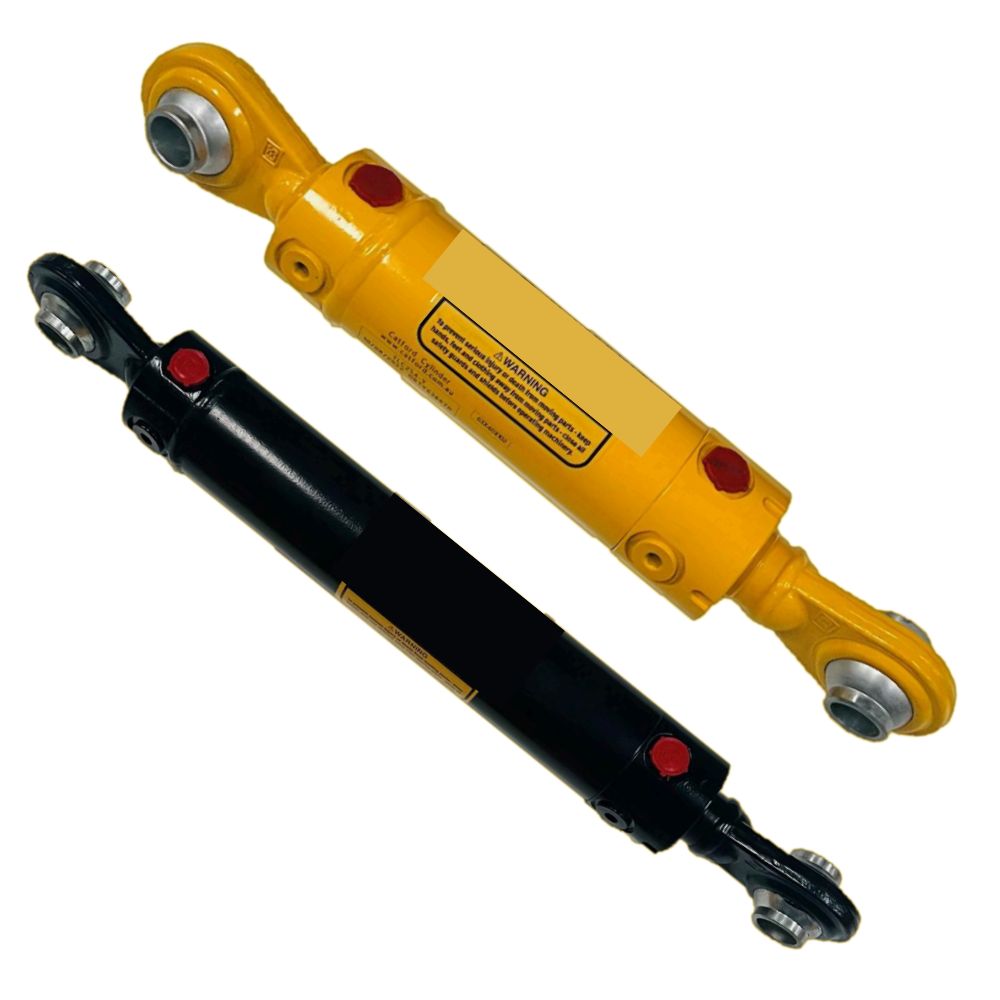

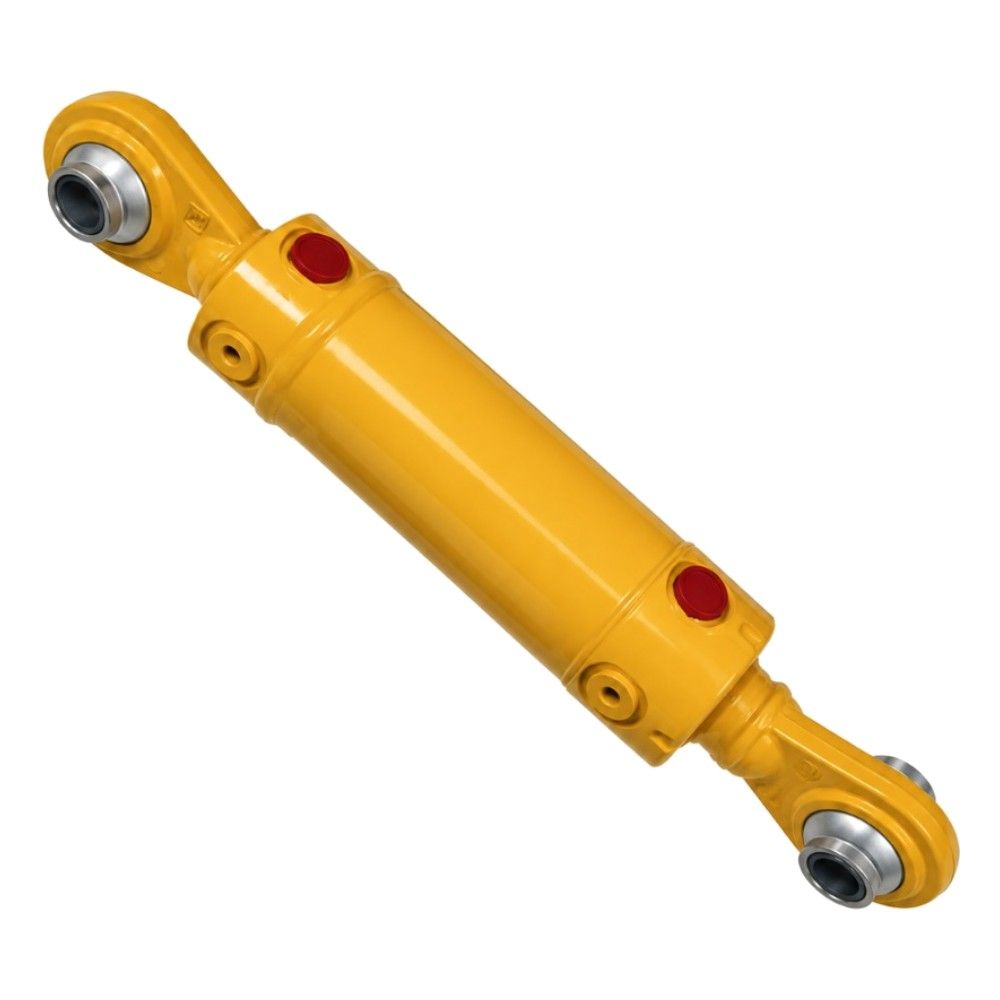

Top Link Hydraulic Cylinder with a 2.5" inch (63 mm) Bore x 40 mm rod fitted with self-aligning "Heavy Duty Category Two" (2) Ball End Bearings at each end, designed to fit 1" inch diameter pins.

Each end of the Top Link cylinder is fitted with 4 equally spaced Oil Ports, this allows you easy access around all the machinery Brackets that usually surround a top link installation.

These Heavy Duty top link cylinders are Made to our own Heavy Duty Specifications: to be much stronger than the locally Aussie made Units. Manufactured to imperial sizes (the MM dimensions are approximate) These Heavy Duty Top link Cylinders are constructed with precise tolerances to be tough and meant to be used day in and day out in Australia's harshest Farming and Construction conditions.

Materials of Construction

Seals Maximum Operating Pressures and Conditions

• Pressures: 414 Bar - 6000 PSI
• Temperature: -30°C to +110°C
• Speed: 0.5 metres per second
• Shock and load holding capabilities
• Double acting K-DAS piston seal providing positive displacement under all rated pressure situations

• EN8D/C45 round bar
• Toughened and induction hardened
• Chrome thickness: 20 to 30 Microns hard chromed piston rod for superior corrosion resistance.
• Heavy Duty Category Two" (2) Rotating Ball End Bearings at each end, designed for 1" inch diameter pins.

• All threads machined to 2A/B specification
• All pin holes machined to D9 tolerance
• All machine surface finishes to be 3.2um Ra.

Why a Hydraulic Top Link Cylinder could be the best Upgrade you make this year : especially for your 3 Point Linkage or (3PL).

The primary use of a hydraulic top link cylinder is to replace the traditional mechanical (manual) top link on a tractor's three-point linkage system. This upgrade offers significant advantages for controlling implements attached to the 3PL.

• On-the-Go Pitch Adjustments: for Ploughs Cultivators and rollers, Eliminate manual pin adjustments, saving time and effort.
• Enhanced Precision: of Depth Control and Weight Transfer of seeders and rippers, helps you achieve finer control over implement settings for improved field efficiency and yield.
• Increased Safety: Reduce the need to dismount as the top link quickly adjust the levels and clearances, especially on uneven ground.
• Reduced Wear & Tear: Proper implement setup can minimize strain on both the tractor and the implement.

Each Top Link Cylinder is Fitted with FOUR ! 3/4" UNO ports, & comes complete with Heavy Duty Category Two (2) Ball end Bearings and 1" pins as each end. Each Cylinder is individually Oil Tested at the Factory and comes with a 1 year warranty.
