Tilt Tray Air Remote Control Hydraulic Valve 5 Functions with 5 x Air Actuated 80LPM
Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves/Remote Control Ready Valves
Product Details
Brand: Hydraulic.Online
Weight: 15.00 kg

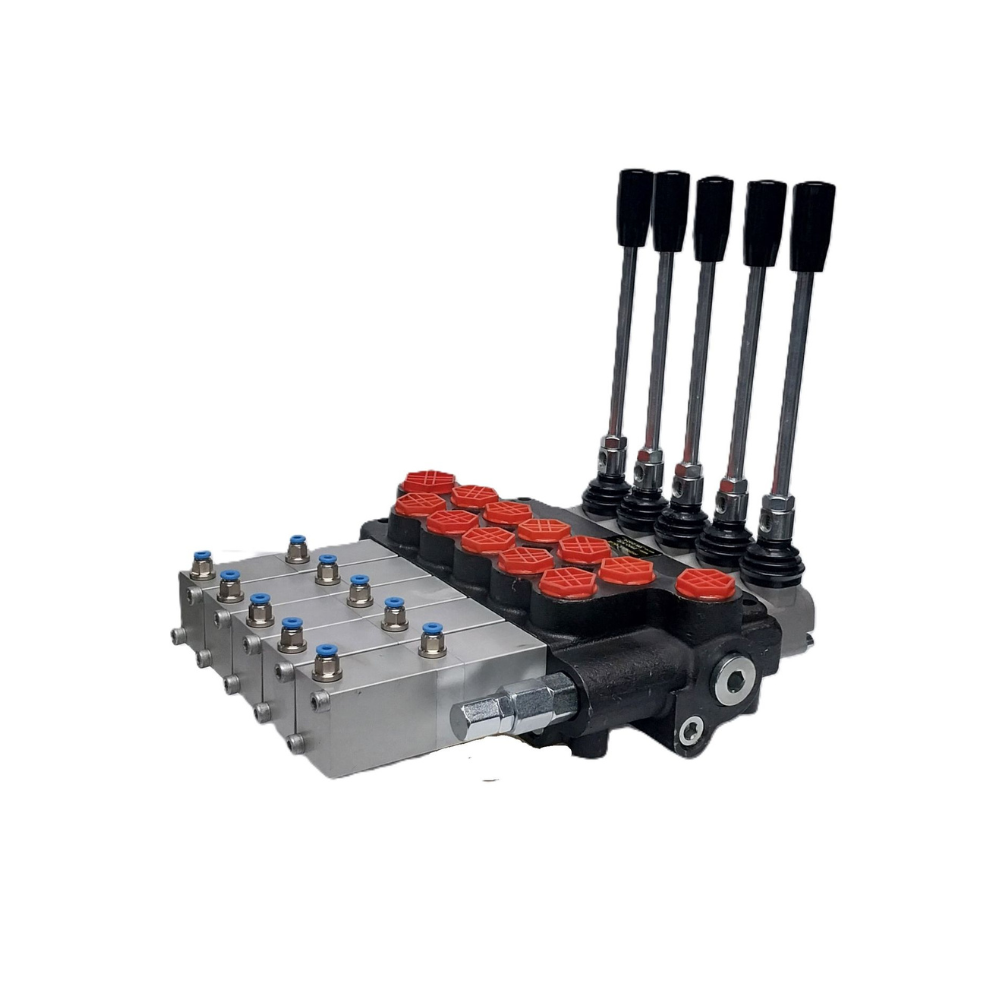

Tilt Tray Air Remote Control Hydraulic Valve 5 Functions with 5 x Air Actuated 80 LPM
Tilt Tray Air Operated Hydraulic 5 Spool Monoblock Valve with 80L/min Flow and 250 Bar Rating, designed for reliable compressed air control in transport, recovery, and industrial hydraulic systems.
This listing is for the Air Actuated hydraulic valve only and is designed to suit trucks already fitted with air solenoids and an existing remote control system. The radio remote kit is not included and can be purchased separately here: Remote Kit Listing
Features:
• 5 Spool Monoblock Valve (5 Levers / 10 Functions)
• 5 Double Acting Pneumatic (Air) Actuators
• Designed for Compressed Air Remote Control Systems
• Manual Lever Override on All Functions
• Durable Steel Construction with Case Hardened Steel Spools
• Cylinder Spools for Load Holding When Controls Are Released
• Spring Return to Centre for Safe and Controlled Operation
• Adjustable Built-In Relief Valve (Factory Set at 175 Bar / 2500 PSI)
• Low Pressure Drop for Efficient Hydraulic Performance
• High Accuracy Hardened Spools for Long Service Life
Common Applications:
• Winch In / Out
• Tray Slide In / Out
• Tray Tilt Up / Down
• Rear T-Bar Extend / Retract
• Rear T-Bar Raise / Lower
• Tilt Tray Trucks and Recovery Vehicles
• Skip Bin Trucks
• Industrial and Mobile Hydraulic Equipment
• Any Application Requiring Control of 5 Hydraulic Cylinders or Motors
Specifications:
• Construction: Monoblock Steel
• Spool Material: Case Hardened Steel
• O-Rings: NBR (Buna-N®)
• Number of Spools: 5
• Pneumatic Actuators: 5 (Double Acting)
• Spool Type: Cylinder
• Spool Movement: Lever Action, Spring Return to Centre
• Max Flow Rate: 80 Litres/Minute (20 GPM)
• Max Working Pressure: 250 Bar (3,700 PSI)
Port Sizes:
• Pressure Port: 1/2" BSPP
• Cylinder Ports: 1/2" BSPP
• Tank Port: 3/4" BSPP
• Power Beyond Port: 3/4" BSPP
Additional Information:
• Operating Temperature: -20°C to +80°C
• Dimensions: 300 x 300 x 100 mm
• Weight: 15 kg
• Suitable Replacement for Most Medium to Large Tilt Tray Valves
• Easy Installation – Bolt-On Replacement with Existing Hoses or Adaptors
• Compatible with Existing Air Solenoid and Remote Systems
• Requires Clean, Filtered Hydraulic Oil for Optimal Performance
Hydraulic.Online supplies a full range of compatible fittings, adapters, hoses and accessories to support complete system setups.
For custom configurations, technical support or bulk enquiries contact 07 5563 1982 or sales@mhfgc.com.au
