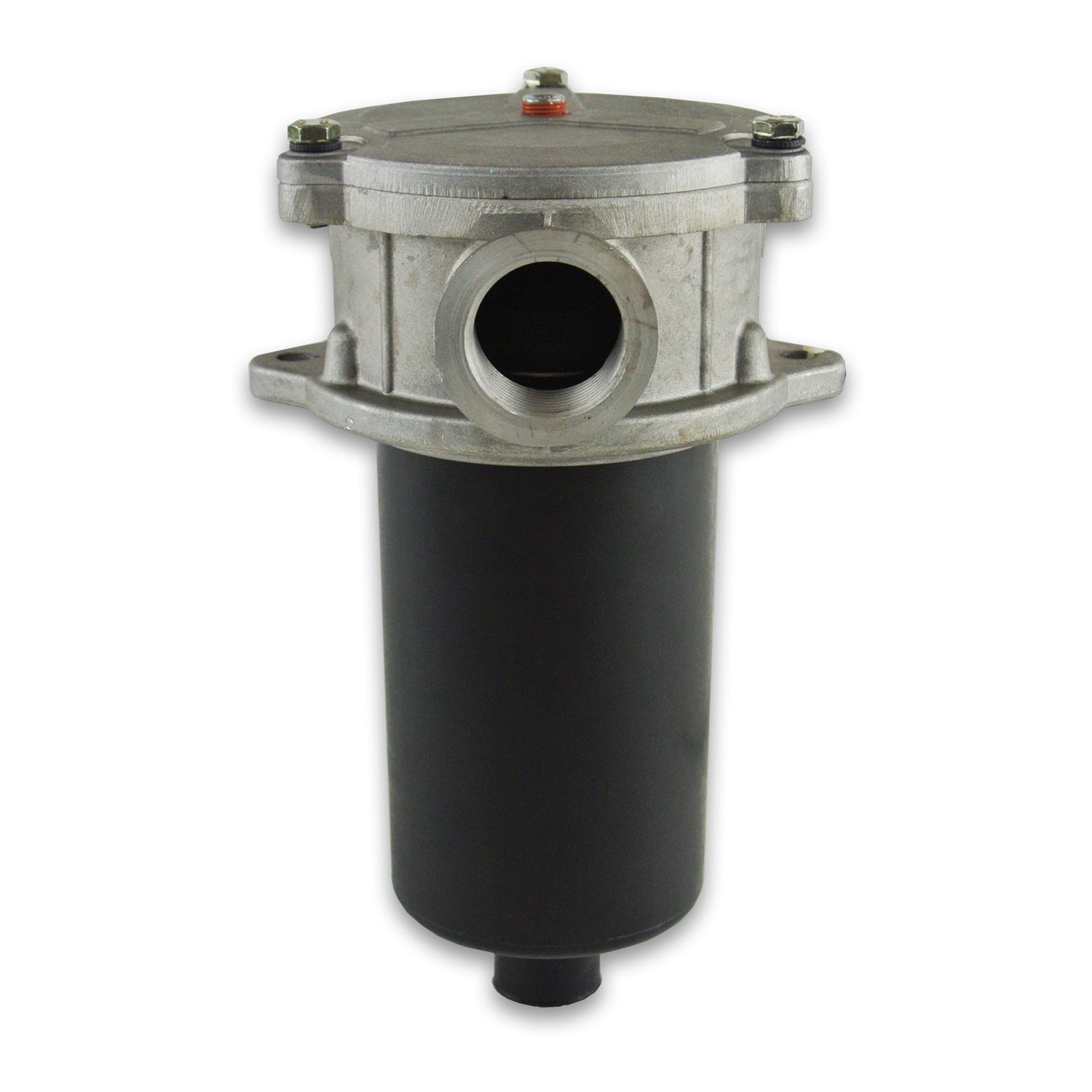

Tank Top Return Filter 1/2" to 1-1/4" BSPP 25-100 LPM – Housings & Elements (TIFP Series)

Name: Tank Top Return Filter 25-100 LPM | TIFP Housings & Elements
Brand: hydraulic.online
SKU: TIFP
Price: 81.6 AUD
Availability: InStock

Store/Hydraulic Oil Filters for Suction, Return, and Pressure Applications

SKU TIFP-04B-P10-R4

AU$81.60

On Sale

was ~~AU$103.00~~ Save 21%

Part

Please choose

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Tank Top Return Filter 1/2" to 1-1/4" BSPP 25-100 LPM – Housings & Elements (TIFP Series)

Store/Hydraulic Oil Filters for Suction, Return, and Pressure Applications

Product Details

Brand: hydraulic.online

Weight: 3.00 kg

Tank Top Return Filters - TIFP Series

Semi-immersed housings that mount through the tank lid, 1/2" to 1-1/4" BSPP, 25-100 L/min. Returning oil is filtered before it re-enters the reservoir, and the element is serviced from above without draining a drop.

Two ways to buy:

Complete Housing - ships with a 10 micron nominal element and 25psi bypass. Bolt in, plumb the return, done.
Replacement Element - pick the row matching YOUR housing size, in 10µm nominal (standard), 25µm nominal (older/high-flow) or 10µm absolute (sensitive valve packages).

The picture changes as you pick - it always shows exactly what arrives in the box. All prices include GST.

Sizes & Part Numbers - every combination

Part	SKU
Complete Housing 1/2" BSPP – 25 LPM (10µm)	TIFP-04B-P10-R4
Complete Housing 3/4" BSPP – 40 LPM (10µm)	TIFP-06B-P10-R4
Complete Housing 1" BSPP – 50 LPM (10µm)	TIFP-08B-P10-R4
Complete Housing 1-1/4" BSPP – 100 LPM (10µm)	TIFP-10B-P10-R4
Element – suits 1/2" housing – 10µm nominal	TIE-04-P10
Element – suits 1/2" housing – 25µm nominal	TIE-04-P25
Element – suits 1/2" housing – 10µm absolute	TIE-04-A10
Element – suits 3/4" housing – 10µm nominal	TIE-06-P10
Element – suits 3/4" housing – 25µm nominal	TIE-06-P25
Element – suits 3/4" housing – 10µm absolute	TIE-06-A10
Element – suits 1" housing – 10µm nominal	TIE-08-P10
Element – suits 1" housing – 25µm nominal	TIE-08-P25
Element – suits 1" housing – 10µm absolute	TIE-08-A10
Element – suits 1-1/4" housing – 10µm nominal	TIEP-10-P10
Element – suits 1-1/4" housing – 25µm nominal	TIEP-10-P25
Element – suits 1-1/4" housing – 10µm absolute	TIEP-10-A10

How to Choose

Housing: match the port to your return line and cover your full return flow (round UP - returns spike when cylinders retract).
Element: the "suits" column is the one that matters - measure your housing port or check your old element diameter/height against the spec sheet.

Technicians Advice

Change the element at 50 hours on a new system, then every 500 hours or when the clogging indicator reads red at operating temperature. Check the lid O-ring every change - a hard O-ring lets unfiltered oil sneak past. Keep the bypass spring with the housing, not the element, when swapping brands.

Official Datasheets

📄 TIFP Tank Top Return Filter Spec Sheet

Complete Your Filtration Setup

⭐ Return Clogging Gauges ⚙ TIFP Tank Tops ⚙ FIF Immersed ⚙ CFR Dual Entry ⚙ Spin-On Return Assemblies

Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.

Still not sure? Call us on 1300 146 737 or email sales@mhfgc.com.au with a photo of your setup and your pump flow - we will pick the right part for you.
