Tank Top Return Filter Dual Entry 1/2" BSPP to 2-1/2" SAE 40-250 LPM – Housings & Elements (CFR)

Store/Hydraulic Oil Filters for Suction, Return, and Pressure Applications

Product Details

Weight: 4.00 kg

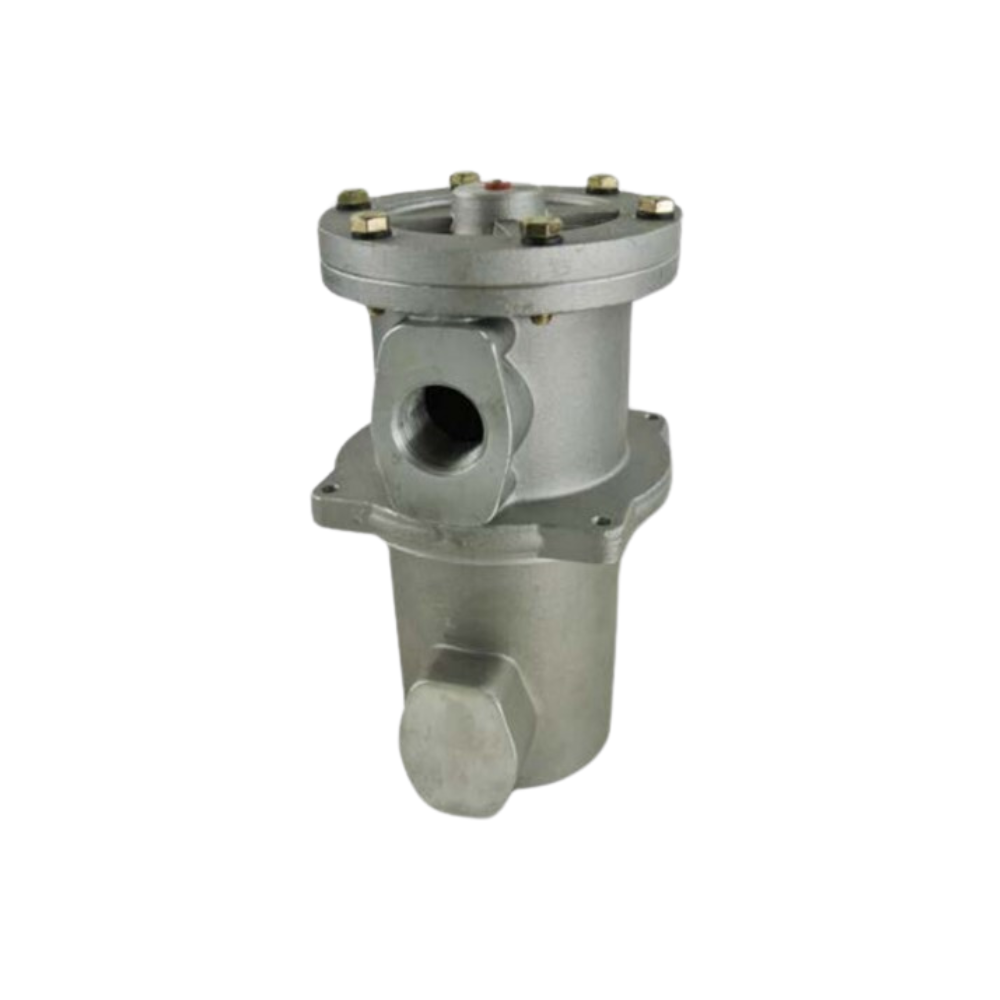

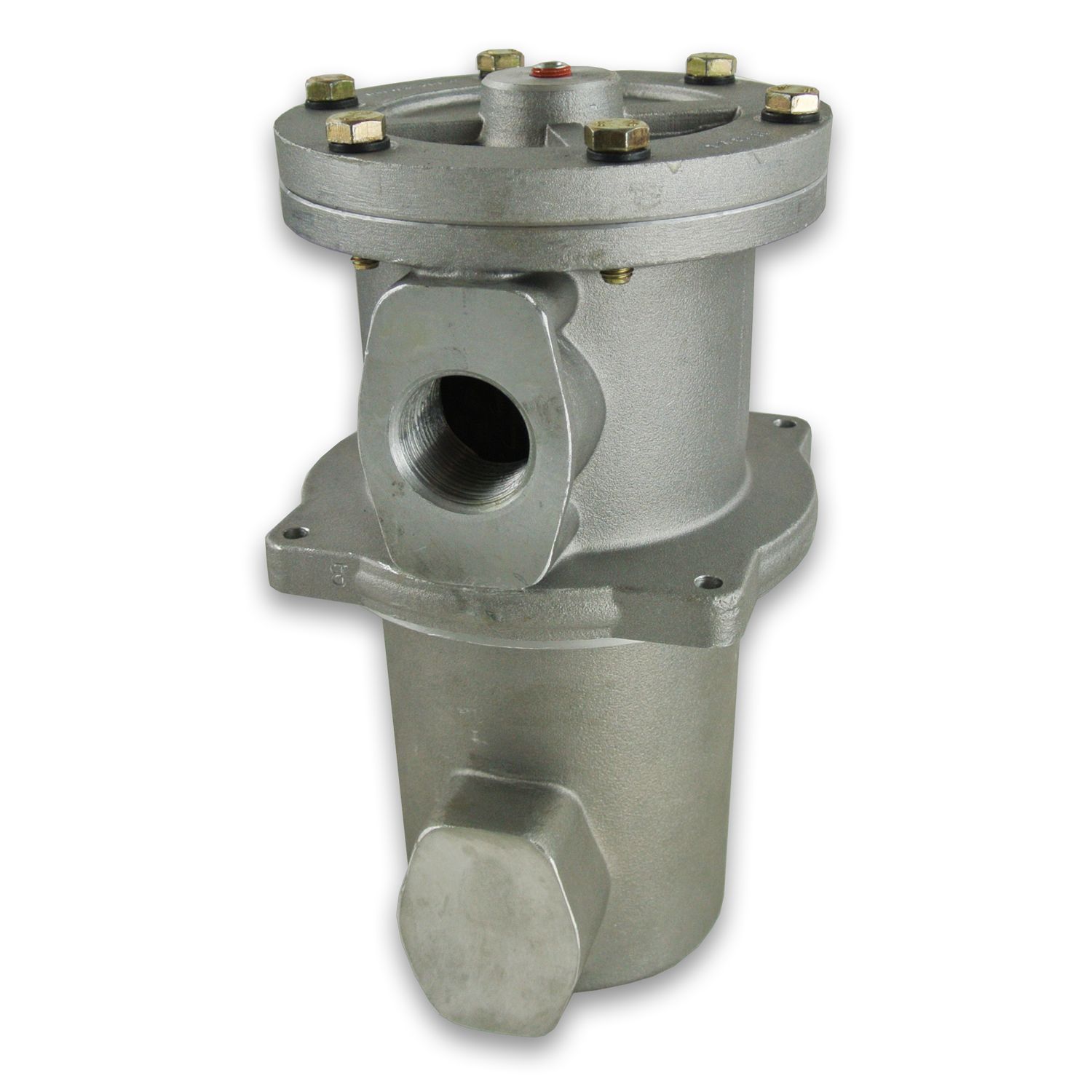

Tank Top Return Filters - CFR (Dual Entry) Series

Heavy-duty dual-entry housings - TWO return lines (system return + case drain or cooler return) into one filter. 1/2" BSPP up to a 2-1/2" SAE flange 250 L/min unit. Returning oil is filtered before it re-enters the reservoir, and the element is serviced from above without draining a drop.

Two ways to buy:

Complete Housing - ships with a 10 micron nominal element and 25psi bypass. Bolt in, plumb the return, done.
Replacement Element - pick the row matching YOUR housing size, in 10µm nominal (standard), 25µm nominal (older/high-flow) or 10µm absolute (sensitive valve packages).

The picture changes as you pick - it always shows exactly what arrives in the box. All prices include GST.

Only one return line? No problem - blank the second port and run it single.

Sizes & Part Numbers - every combination

Part	SKU	Price inc GST
Complete Housing 1/2" BSPP Dual Entry – 40 LPM (10µm)	CFR-025-04B-P10-R4	AU$128.30
Complete Housing 3/4" BSPP Dual Entry – 60 LPM (10µm)	CFR-040-06B-P10-R4	AU$246.31
Complete Housing 1" BSPP Dual Entry – 130 LPM (10µm)	CFR-100-08B-P10-R4	AU$370.66
Complete Housing 1-1/2" BSPP Dual Entry – 150 LPM (10µm)	CFR-250-12B-P10-R4	AU$548.06
Complete Housing 2-1/2" SAE Flange Dual Entry – 250 LPM (10µm)	CFR-630-20S-P10-R4	AU$919.96
Element – suits CFR-025 – 10µm nominal	CE-025-P10	AU$22.97
Element – suits CFR-025 – 25µm nominal	CE-025-P25	AU$22.97
Element – suits CFR-025 – 10µm absolute	CE-025-A10	AU$39.60
Element – suits CFR-040 – 10µm nominal	CE-040-P10	AU$29.30
Element – suits CFR-040 – 25µm nominal	CE-040-P25	AU$29.30
Element – suits CFR-100 – 10µm nominal	CE-100-P10	AU$38.81
Element – suits CFR-100 – 25µm nominal	CE-100-P25	AU$38.81
Element – suits CFR-100 – 10µm absolute	CE-100-A10	AU$66.53
Element – suits CFR-250 – 10µm nominal	CE-250-P10	AU$72.07
Element – suits CFR-250 – 25µm nominal	CE-250-P25	AU$72.07
Element – suits CFR-250 – 10µm absolute	CE-250-A10	AU$156.02
Element – suits CFR-630 – 10µm nominal	CE-630-P10	AU$120.38
Element – suits CFR-630 – 10µm absolute	CE-630-A10	AU$216.22

How to Choose

Housing: match the port to your return line and cover your full return flow (round UP - returns spike when cylinders retract).
Element: the "suits" column is the one that matters - measure your housing port or check your old element diameter/height against the spec sheet.

Technicians Advice

Change the element at 50 hours on a new system, then every 500 hours or when the clogging indicator reads red at operating temperature. Check the lid O-ring every change - a hard O-ring lets unfiltered oil sneak past. Keep the bypass spring with the housing, not the element, when swapping brands. When running two lines of very different flows, put the bigger line in the straighter port to keep the element loading even.

Official Datasheets

📄 CFR (Dual Entry) Tank Top Return Filter Spec Sheet

Complete Your Filtration Setup

⭐ Return Clogging Gauges ⚙ TIFP Tank Tops ⚙ FIF Immersed ⚙ CFR Dual Entry ⚙ Spin-On Return Assemblies

Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.

Still not sure? Call us on 1300 146 737 or email sales@mhfgc.com.au with a photo of your setup and your pump flow - we will pick the right part for you.
