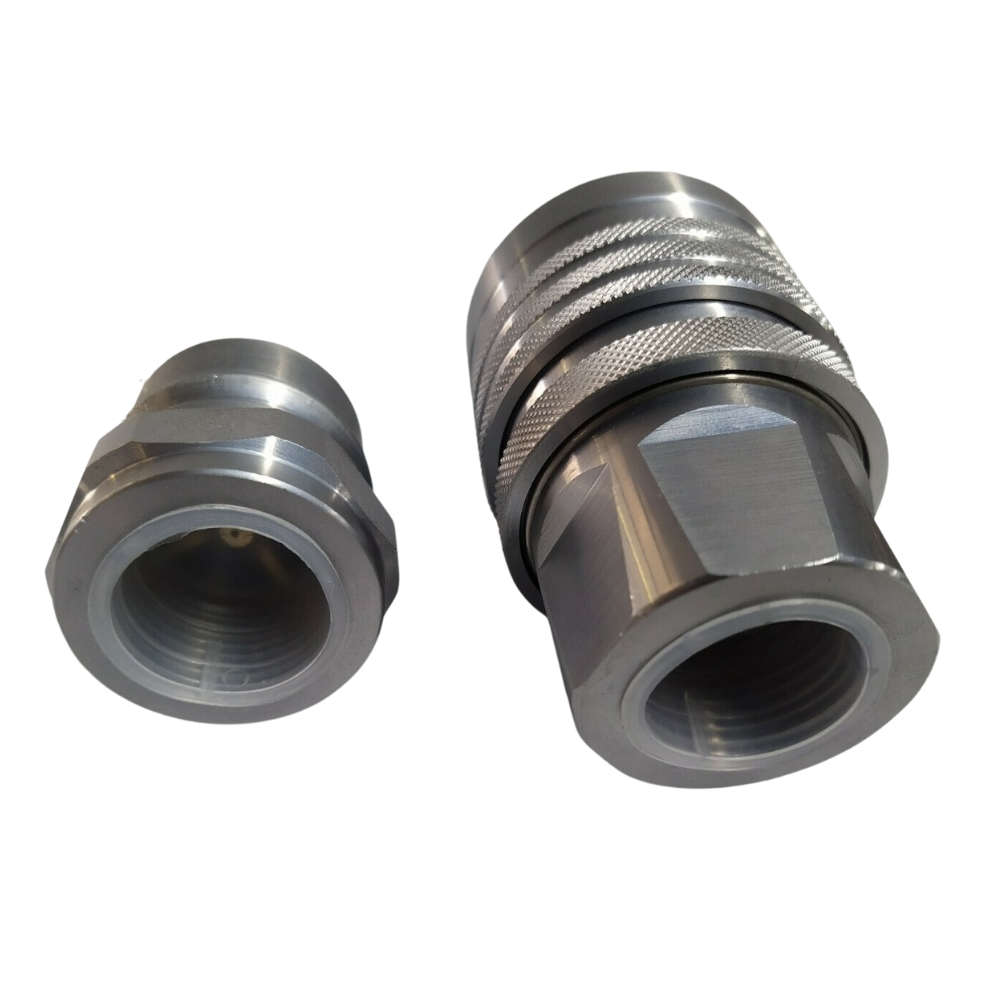

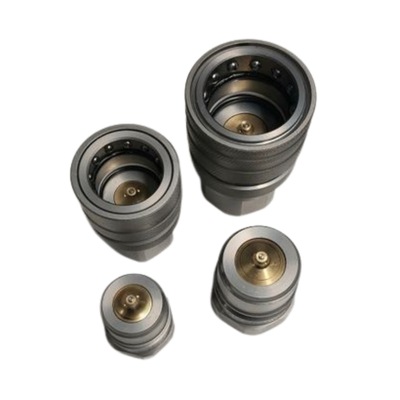

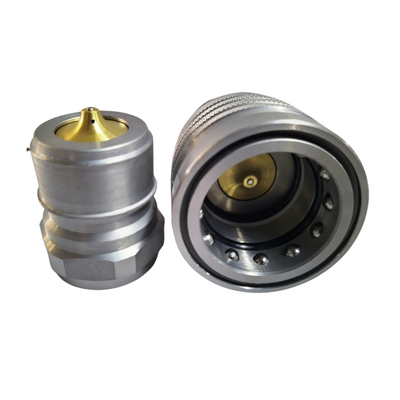

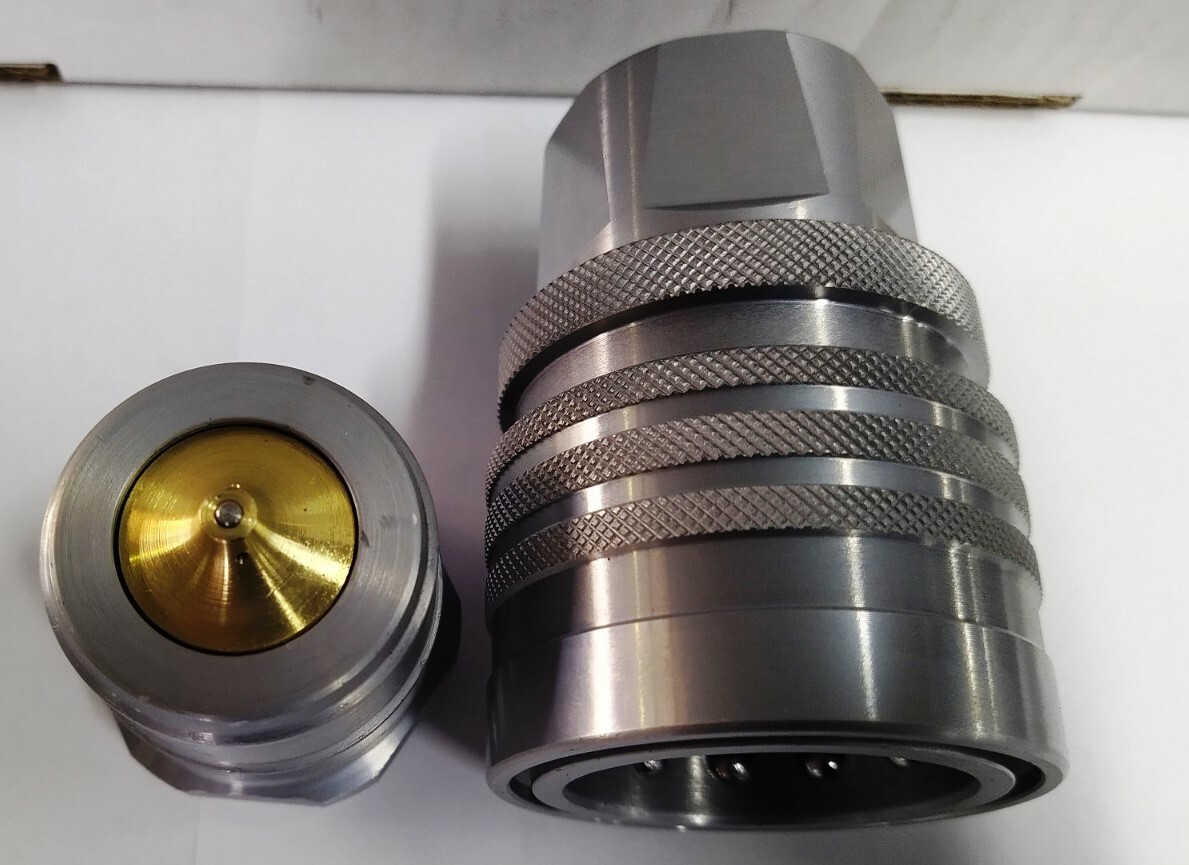

Pair of TEMA type 1" Hydraulic Quick Connect Coupling with DECOMPRESSION pin for easy connections under pressure.
1 inch BSPP connection ports.

Tema Interchange couplers. 1" BSPP thread One Set
compatible with Tema Part Numbers Part Numbers 10011 female and 10021 male

Description.
These couplings are interchange and are compatible with; Tema series, Stucchi IRH , CEJN 525

High-Quality quality German made Tema interchange hydraulic couplings.

These are widely used in the heavy transport industry.

These are compatible with the genuine Tema brand, & are of the same quality, but at a much better price.

A locking ring is also supplied to prevent accidental disconnect from knocks and rocks

This type also has the advantage of a 'DECOMPRESSION' pin for easier connecting.

The above price is for one set or pair of 1" BSPP thread couplers (one set which includes one male and one female coupler)

Adoption and Use in Australia

In Australia, Tema has a massive presence, largely due to the rugged nature of the local transport and agriculture industries.

Dimensions and Performance

• Threaded Connections
• 1" BSPP Female
• Rated Working Pressure 300 Bar (4500 PSI)
• Flow Rates From 380 Litres/Minute
• Operating Temperatures -20 to 100 degrees Celsius

• Carbon steel body, treated to increase hardness and corrosion resistance,
• Hardened Ball area,
• Double O rings & back ups
• Weight 1.2 kg

Please send us a message for more information.
