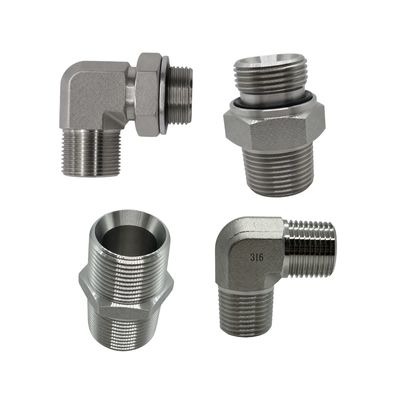

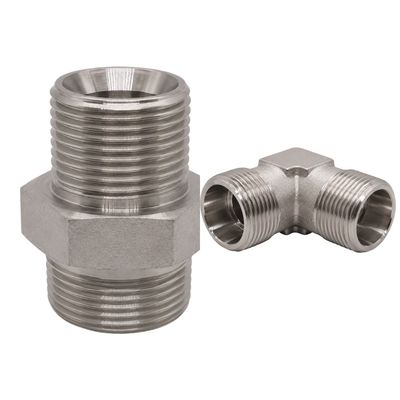

Stainless Steel 316 Adaptors

Australia's most comprehensive Stainless Steel Fitting offering Created especially for our Food Industry, Marine and Water Jetting clients, these premium fittings are the ultimate solution for corrosive, wet, and highly demanding environments.

The 316 Advantage

• Unmatched Corrosion Resistance: Impervious to saltwater, harsh chemicals, and extreme temperatures without rusting or pitting.
• Maximum Hygiene: Non-porous and built for caustic washdowns—essential for Food, Beverage, and Pharmaceutical processing.
• Lasting Aesthetics: Retains a sleek, polished finish ideal for luxury marine applications and exposed architectural machinery.
• Total Reliability: Built for longevity, drastically reducing downtime and maintenance costs.

Thread Types & Specs

Available in all sizes from 3/16" to 2" in the following Thread Types:

• BSPP (G Thread): British Standard Parallel Pipe, parallel thread commonly used in Australia, seals with a bonded washer, O-ring, or face seal.
• BSPT (R Thread): British Standard Tapered Pipe, tapered thread that seals via thread interference, widely used in general plumbing and hydraulics.
• JIC (37° Flare): Joint Industry Council, uses a 37° flare seating system, very common in Australian hydraulics for high-pressure applications.
• UNF / SAE (ORB): Unified National Fine / SAE O-Ring Boss, straight thread sealed with an O-ring at the port, common in hydraulic equipment.
• NPT: National Pipe Tapered, American tapered thread that seals on the thread itself, used on imported equipment.
• NPTF: National Pipe Tapered Fuel (Dryseal), improved sealing version of NPT, used in high-pressure and fuel systems.
• Metric (DIN Parallel): Metric parallel thread, seals with O-ring or washer, commonly found on European machinery.
• Metric (DIN Tapered): Metric tapered thread, seals on the thread, used in specialised applications.
• ORFS: O-Ring Face Seal, flat face fitting with an O-ring, ideal for high-pressure and vibration applications.
• SAE 45° Flare: 45-degree flare thread, used in low-pressure systems like fuel, refrigeration, and automotive.
• BSPP 60° Cone: Parallel BSP thread using a 60° cone seat or bonded seal, common in hydraulic adaptors.
• Metric 24° Cone (DIN 2353): Metric thread with 24° cone sealing, widely used in European hydraulic systems.
• Komatsu Thread: Japanese parallel thread with a 30° flare seat, used on Komatsu machinery.
• JIS 30° Flare: Japanese Industrial Standard thread with 30° flare, common on Japanese equipment.
• UNO: Unified National O-Ring thread, straight thread with O-ring sealing, used in hydraulic ports.
• Banjo (Metric & BSP): Hollow bolt connection using sealing washers, ideal for tight spaces.
• SAE Code 61 Flange: Medium-pressure flange system using bolts and O-ring seal, common in industrial hydraulics.
• SAE Code 62 Flange: High-pressure flange system, heavier-duty version of Code 61.
• Cat Flange: Caterpillar-specific flange system, similar to SAE but with proprietary sizing.
• Standpipe (BSP Gas): British gas thread system, used in older or specialised gas applications.
